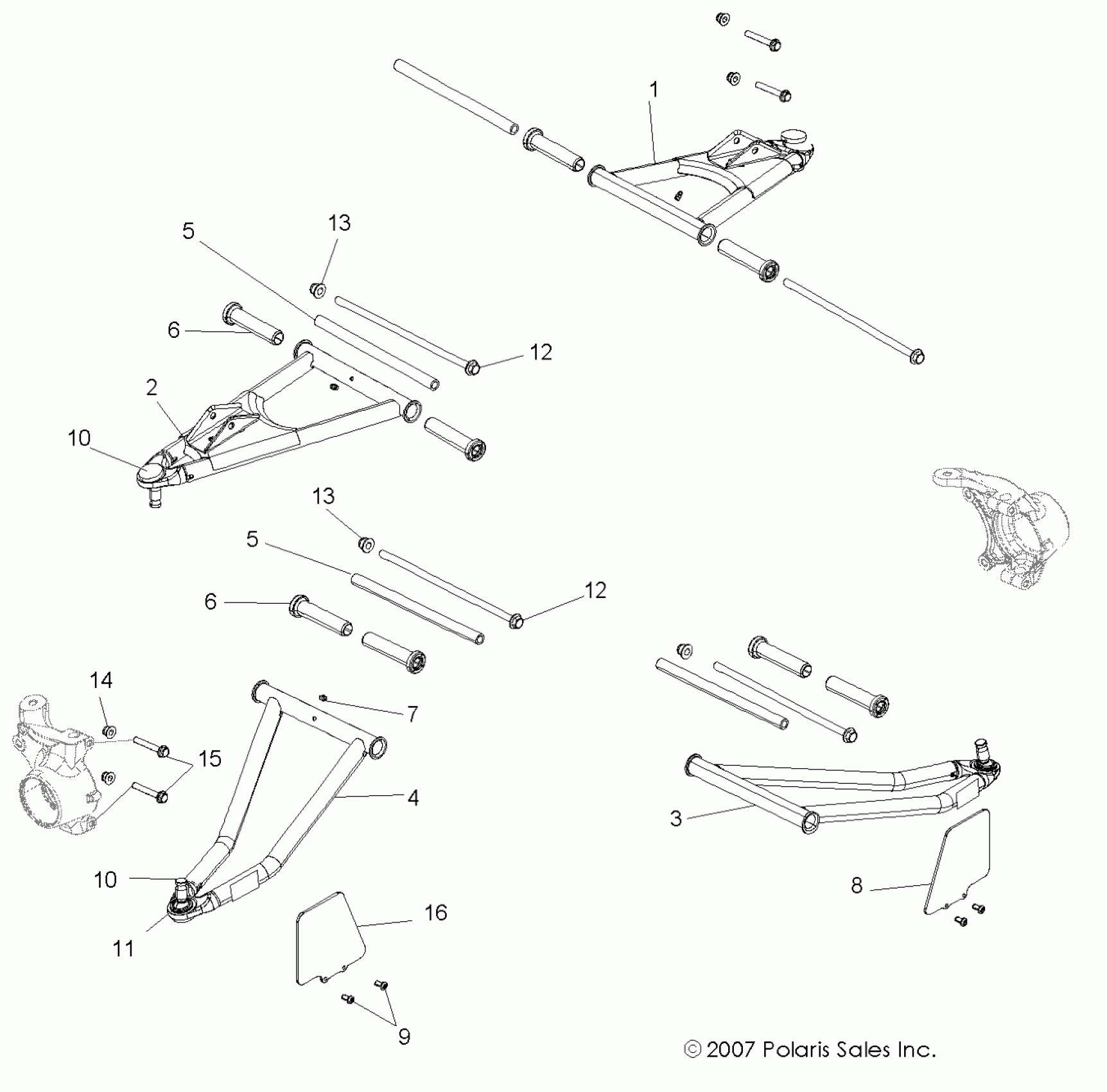

Polaris RZR 800 EFI - R08VH76AD/AG SUSPENSION, FRONT - R08VH76AD/AG (49RGRSUSPFRT08VISTA) Diagram

Arm, Control, Upper, Front, Matte' Black, LH

1015453-458

Unavailable

Arm, Control, Upper, Front, Matte' Black, RH

1015454-458

Unavailable

Arm, Control, Lower, Front, Matte' Black, LH

1015455-458

Unavailable

Arm, Control, Lower, Front, Matte' Black, RH

1015456-458

Unavailable

Tube, Pivot

5134926

$28.32

Tube, Pivot

5134926

$28.32

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING, A-ARM, LONG

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

Fitting, Lubrication

7080433

$1.49

Shield, CV, Front, Black, LH

5436620-070

Unavailable

Screw

7512084

$1.49

Joint, Ball [Built 4/10/09 and Before]

7081505

$73.35

Joint, Ball [Built 4/11/09 and After]

7081580

$73.35

Joint, Ball [Built 4/10/09 and Before]

7081505

$73.35

Joint, Ball [Built 4/11/09 and After]

7081580

$73.35

RING, RETAINING

7710533

$2.39

Bolt, Flanged

7518458

$7.99

Bolt, Flanged

7518458

$7.99

NUT, FLANGED

7547313

$1.49

NUT, FLANGED

7547313

$1.49

NUT, NYLOK

7547405

$1.49

SCREW, FLANGE

7516733

$6.39

Shield, CV, Front, Black, RH

5437246-070

$34.99
