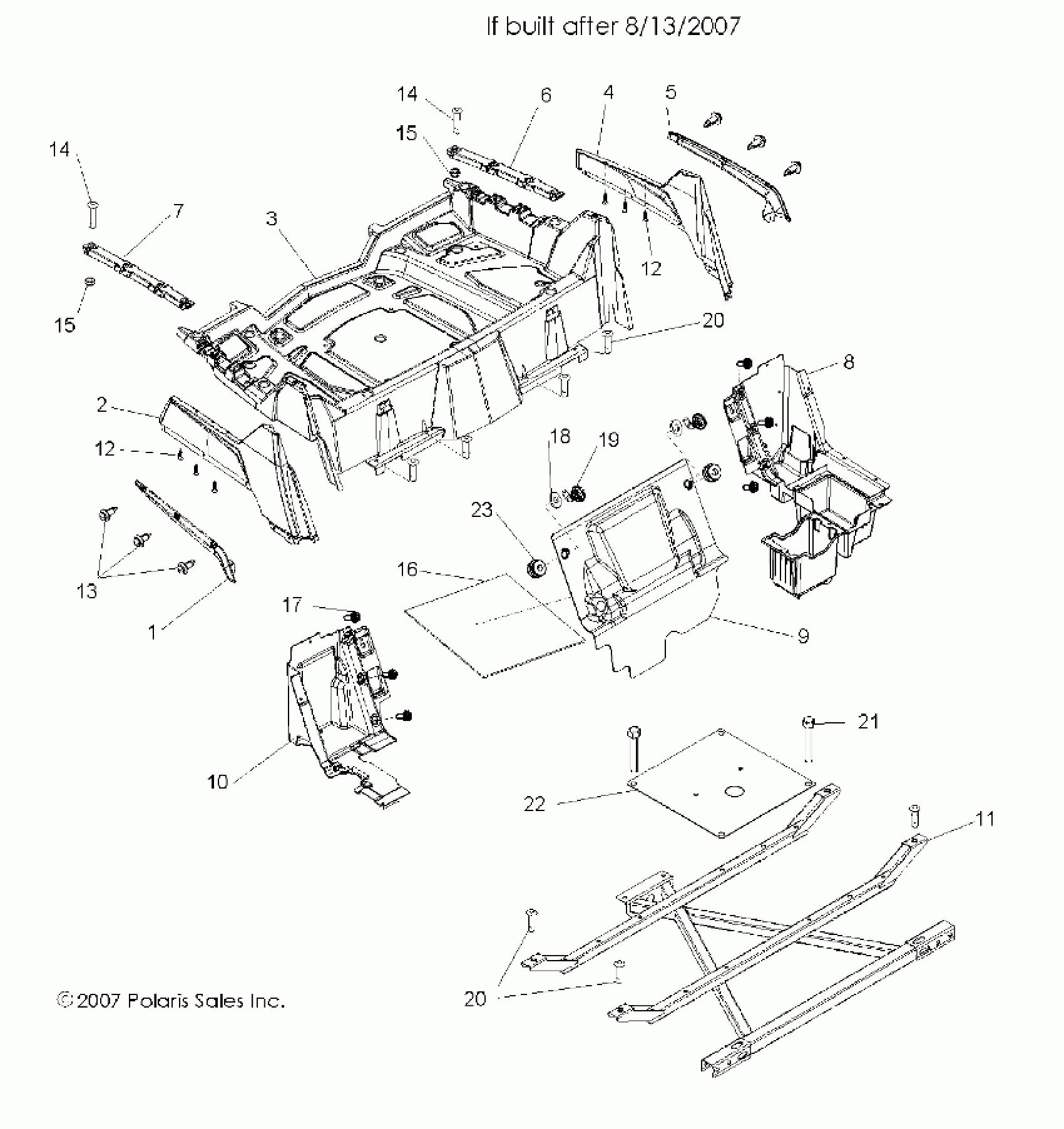

Polaris RZR 800 EFI - R08VH76AD/AG FENDERS and RACK, REAR (Built 8/14/07 and After) - R08VH76AD/AG (49RGRRACKMTG08RZR) Diagram

#

Description
Price

1

Flair, Fender, Rear, RH Black

5436627-070

$44.51

2

Fender, Rear, RH, Red

5437393-293

$579.99

2

Fender, Rear, RH, Sagebrush Metallic

5437393-498

$279.27

3

Asm., Rack, Rear, Black [Incl. Warning Decals]

2633389-070

Unavailable

4

Fender, Rear, LH, Red

5437392-293

$579.99

4

Fender, Rear, LH, Sagebrush Metallic

5437392-498

$329.99

5

Flair, Fender, Rear, LH, Black

5436626-070

$48.56

6

BRACKET, RACK, TIE DOWN, LH, BLACK

5436849-070

$52.60

7

BRACKET, RACK, TIE DOWN, RH, BLACK

5436850-070

$52.60

8

Panel, Divider, Rear, LH, Black

5437395-070

$145.70

9

Panel, Divider, Rear, Main, Black

5437394-070

$203.32

10

Panel, Divider, Rear, RH, Black

5437396-070

Unavailable

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.27

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

Foam, Sound Attention, Cut

5813298

Unavailable

17

Screw

7512084

$1.19

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.56

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$5.69

22

Shield, Box

5251419

$52.60

23

GROMMET-LATCH

5413428

$3.17
