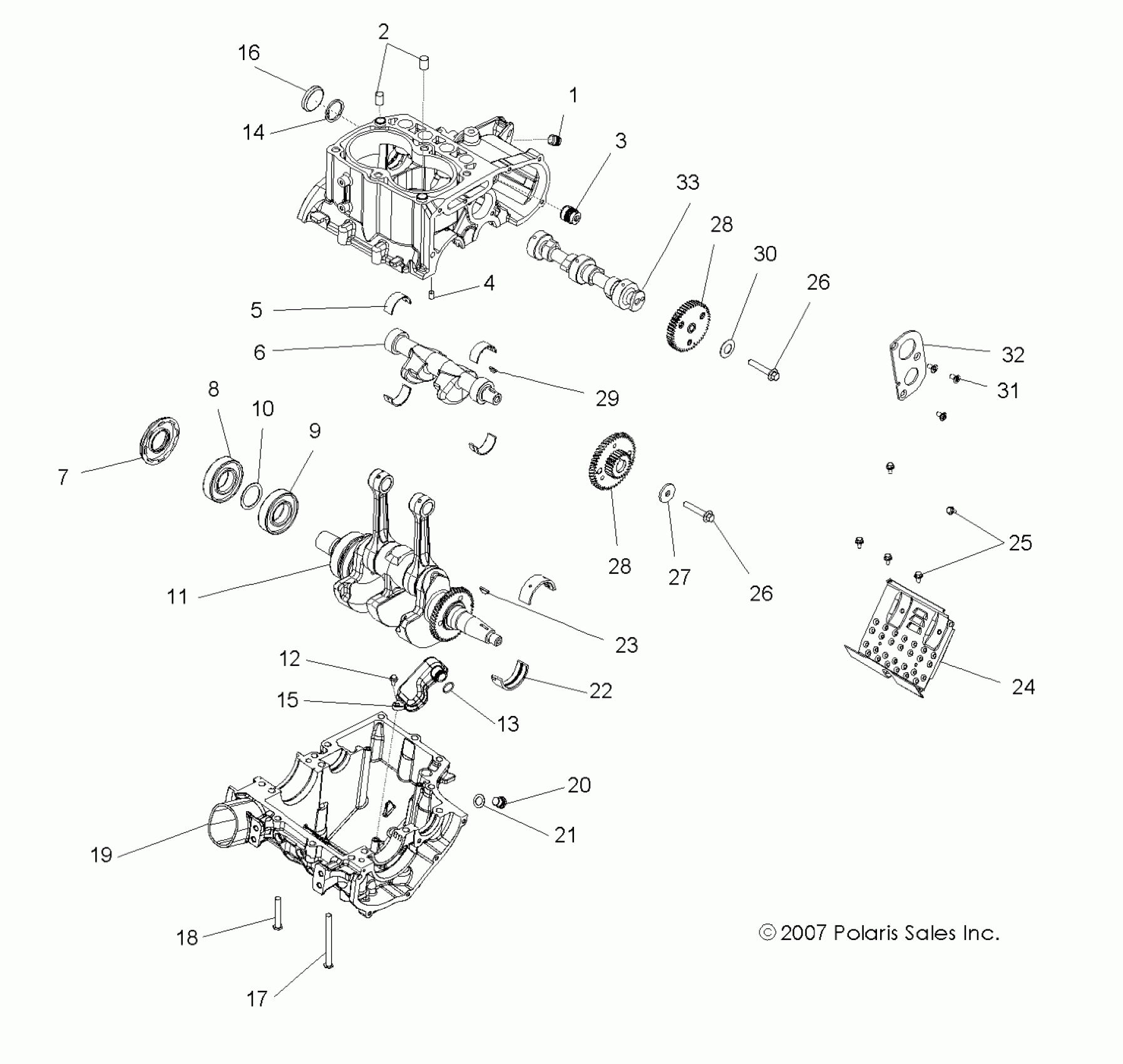

Polaris RZR 800 EFI - R08VH76AD/AG ENGINE, CRANKCASE and CRANKSHAFT - R08VH76AD/AG (49ATVCRANKCASE08VISTA) Diagram

#

Description
Price

-

Kit, Short Block

2203305

Unavailable

1

PLUG, EXPANSION

7051531

$7.27

2

DOWEL

7661175

$5.65

3

PLUG, EXPANSION

7052288

Unavailable

4

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

5

BEARING, BALANCE SHAFT JOURNAL

5132753

Unavailable

6

Shaft, Balance

5134837

$186.17

7

SEAL

5412676

$40.46

8

BEARING, BALL

3514361

$31.75

9

BEARING, BALL

3514318

$52.37

10

BUSHING

7556194

$3.97

11

Kit, Crankshaft

2203068

$1,699.99

12

BOLT

7516603

$10.32

13

O-RING

5413013

Unavailable

14

RING, RETAINING

7710512

$3.97

15

Asm., Oil Pickup

1203255

$47.49

16

PLUG, EXPANSION

3060004

$15.37

17

SCREW

7517792

$2.38

18

SCREW

7517793

$5.56

19

Kit, Crankcase

2203301

Unavailable

20

PLUG, SOCKET

7052306

$15.37

21

WASHER, COPPER

5812232

$1.59

22

BEARING, MAIN JOURNAL

3585704

$28.56

23

KEY, WOODRUFF

7721117

$29.99

24

Plate, Baffle

5249837

Unavailable

25

SCREW

7518045

$10.32

26

SCREW

7517865

$11.11

26

SCREW

7517865

$11.11

27

WASHER-RETAINING,8.5X28X3

7555982

$15.99

28

KIT, GEAR SET

2203106

Unavailable

28

KIT, GEAR SET

2203106

Unavailable

29

KEY, WOODRUFF

7721131

$23.81

30

WASHER, SPRING

7556183

$9.52

31

SCREW

7517598

$11.33

32

PLATE, THRUST

5244286

Unavailable

33

Kit, Camshaft [Incl. Cam and Lifters]

2202918

$579.99
