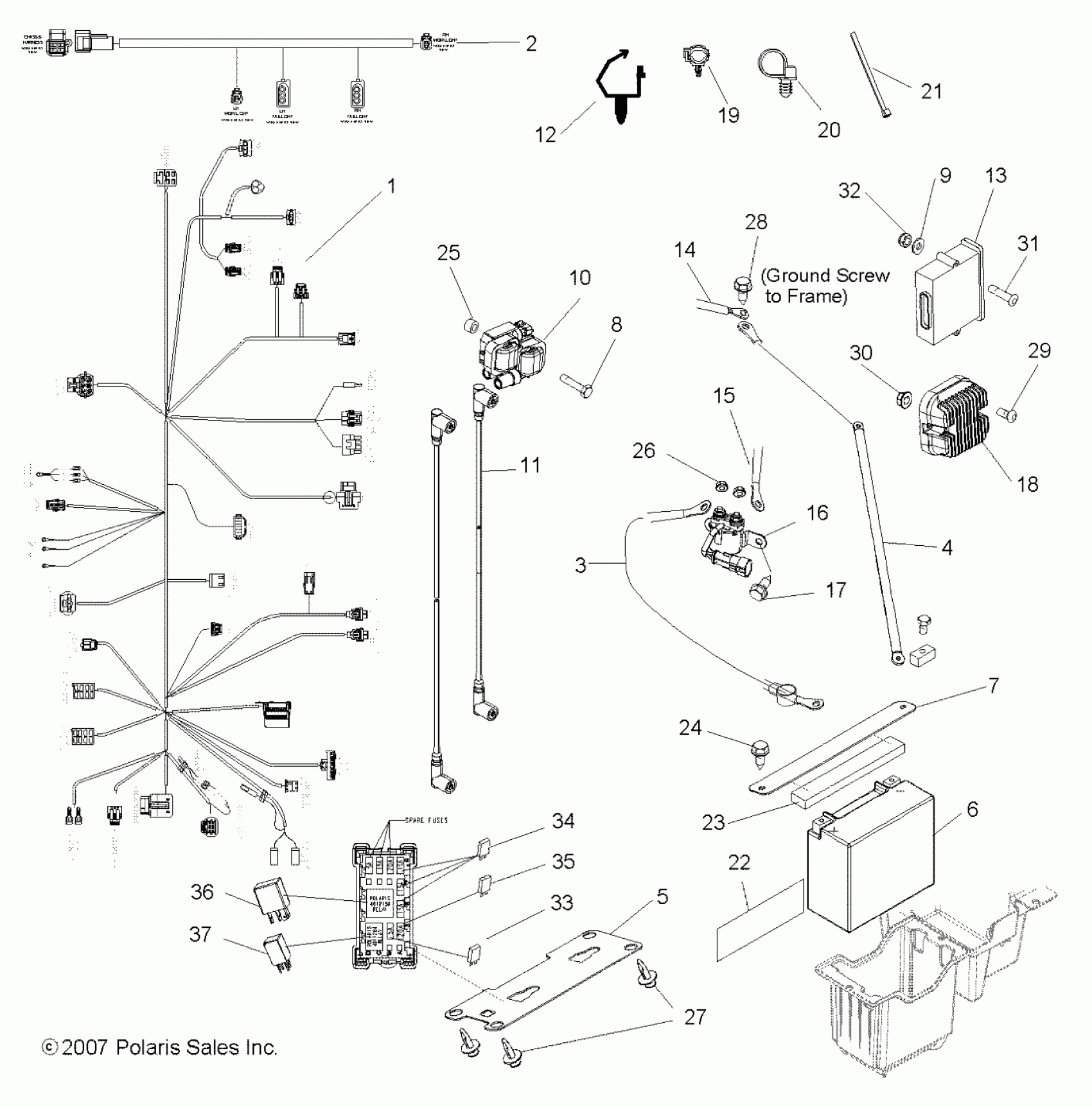

Polaris RZR 800 EFI - R08VH76AD/AG ELECTRICAL (Built 8/14/07 and After) - R08VH76AD/AG (49RGRELECT08RZR) Diagram

#

Description
Price

1

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

1

Kit, Fusible Link, 1.0 mm

2202670

$44.99

1

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$76.89

1

KIT, HARNESS, CPS

2878497

$144.99

1

KIT, HARNESS, T-BAP

2875542

$137.74

1

Kit, Harness, TPS

2203801

$140.38

1

Kit, Harness, Engine Temp

2875543

$135.54

1

Kit, Fusible Link, .8 MM

2202607

$39.68

1

Kit, Harness, Resistor Module

2204890

$161.49

1

Decal, Fuse/Relay Block

7174705

Unavailable

1

Harness, Chassis [Incl. 33-37, Resistors, Circuit Breaker, Relays, All Kits, Decal, Diagnostic Cover]

2410682

$836.99

2

Harness, Box

2410848

Unavailable

3

CABLE-BATT TO SOLENOID/TERMINA

4011497

$44.51

4

Cable, Chassis, Ground

4011611

$44.51

5

Plate, Fuse Mount

5251956

$19.68

6

Battery

4011496

$151.99

7

Strap, Battery, Retainer

5251991

Unavailable

8

SCREW

7518052

$7.14

9

WSHR-.194X.475X.049 ZTB

7555746

$0.79

10

COIL-EFI

4010425

$242.84

11

Wire, Spark Plug, 49.5

4011059

$72.84

12

CLIP, ROUTING

7670109

$2.38

13

ECM, Programmed

4011832

$612.74

14

CABLE, GROUND

4011499

$52.60

15

Cable, Solenoid to Starter

4011498

$89.99

16

SOLENOID, STARTER

4012001

$47.60

17

SCREW

7517386

$1.19

18

Regulator, Sealed

4011925

$337.24

19

Clip, Rosebud

4020149

$6.35

20

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

21

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

22

PAD-BATTERY

5810290

$7.27

23

Foam, Panel, LH

5812138

$6.46

24

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.19

25

SPACER, COIL

5133658

$7.14

26

NUT, FLANGED

7547270

$3.97

27

Rivet

7661855

$1.19

28

Screw

7515179

$2.38

29

Screw

7518196

$1.19

30

Nut, Nylon, Flanged

7518287

$3.17

31

Screw

7518157

$5.99

32

NUT-M5X.8,HX NYL-Y

7546601

$1.19

33

FUSE-5A,MINI BLADE

4011652

$11.32

34

FUSE-15AMP,MINI BLADE

4010859

$8.08

35

FUSE-PARK,20 AMP

2434017

$8.08

36

Relay, Sealed, 50 Amp.

4012150

$40.46

37

Relay, Sealed [35 Amp.]

4011284

$36.41
