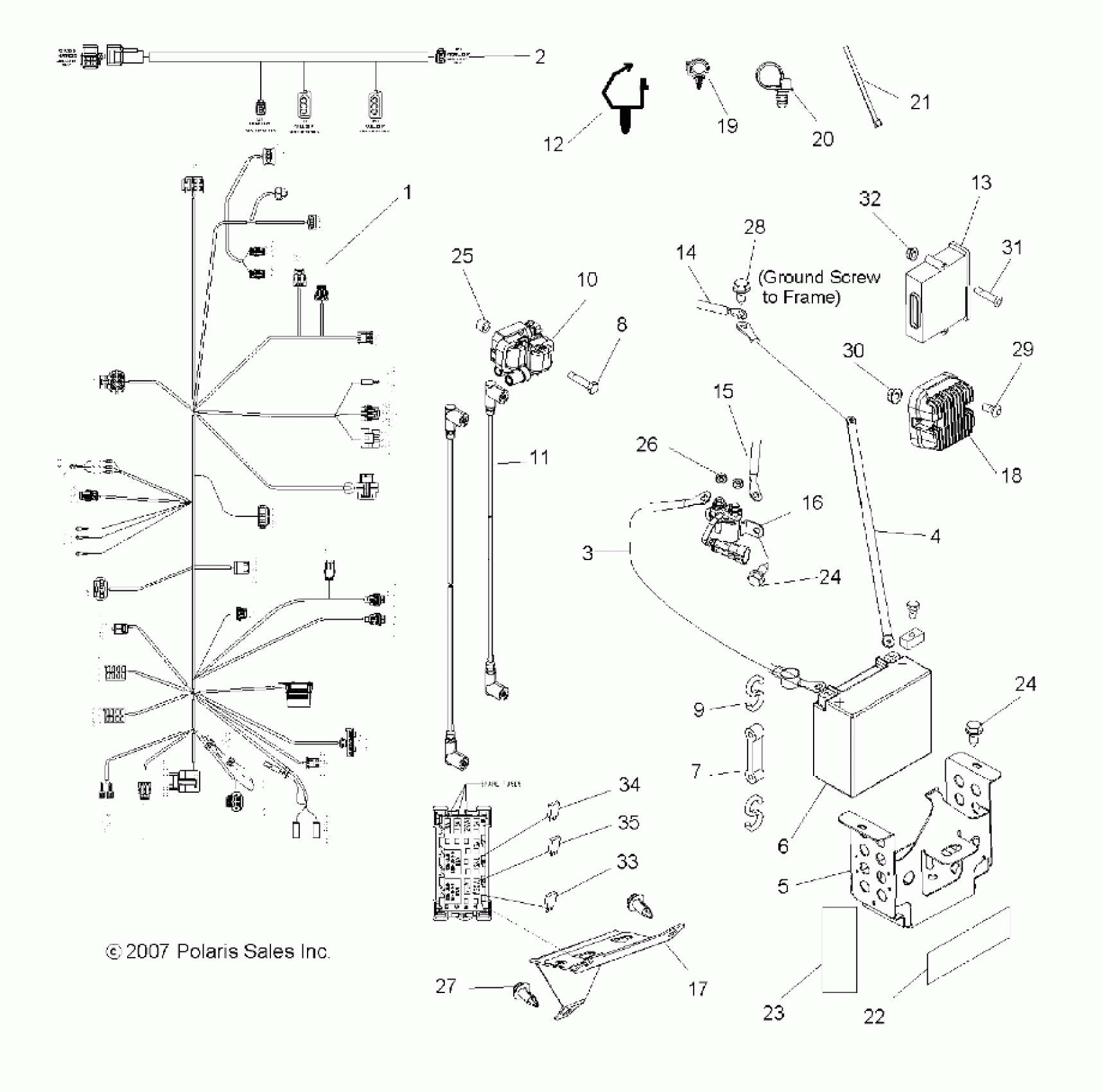

Polaris RZR 800 EFI - R08VH76AD/AG ELECTRICAL (Built 8/13/07 and Before) - R08VH76AD/AG (49RGRELECT08VISTA) Diagram

#

Description
Price

1

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

1

Kit, Fusible Link, 1.0 mm

2202670

$35.99

1

Relay, SPDT, Sealed

4011284

$31.99

1

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

1

KIT, HARNESS, CPS

2878497

$111.99

1

KIT, HARNESS, T-BAP

2875542

Unavailable

1

Kit, Harness, TPS

2203801

$111.99

1

Kit, Harness, Engine Temp

2875543

$107.99

1

Kit, Fusible Link, .8 MM

2202607

$39.99

1

Kit, Harness, Resistor Module

2204890

$127.99

1

Decal, Fuse/Relay Block

7174705

Unavailable

1

Relay, Sealed, SPNO, 50 AMP

4012150

$34.74

1

Harness, Chassis [Incl. 33-35, Resistors, Circuit Breaker, Relays, All Kits, Decal, Diagnostic Cover]

2410682

$836.99

2

Harness, Box

2410848

Unavailable

3

CABLE-BATT TO SOLENOID/TERMINA

4011497

$43.99

4

Cable, Chassis, Ground

4011611

$44.51

5

Box, Battery, Matte' Black

1015946-458

$206.39

6

Battery

4011496

Unavailable

7

Strap, Battery Hold Down

5412499

$4.62

8

SCREW

7518052

$7.19

9

Hook, Battery Strap

7010032

$1.59

10

COIL-EFI

4010425

Unavailable

11

Wire, Spark Plug, 49.5

4011059

$65.63

12

CLIP, ROUTING

7670109

$2.39

13

ECM, Programmed

4011832

Unavailable

14

CABLE, GROUND

4011499

$51.99

15

Cable, Solenoid to Starter

4011498

$79.19

16

SOLENOID, STARTER

4012001

Unavailable

17

Mount, Fusebox

1016053

$15.67

18

Regulator, Sealed

4011925

$262.87

19

Clip, Rosebud

4020149

$6.39

20

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

21

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

22

PAD-BATTERY

5810290

$7.27

23

FOAM-SEAL,REAR COOLER

5810947

$4.03

24

SCREW

7517386

$1.49

24

SCREW

7517386

$1.49

25

SPACER, COIL

5133658

$7.19

26

NUT, FLANGED

7547270

$3.99

27

Rivet

7661855

$1.49

28

Screw

7515179

$2.39

29

Screw

7518196

$1.49

30

Nut, Nylon, Flanged

7518287

$3.19

31

Screw

7518157

$5.99

32

NUT-M5X.8,HX NYL-Y

7546601

$1.49

33

FUSE-5A,MINI BLADE

4011652

Unavailable

34

FUSE-15AMP,MINI BLADE

4010859

$7.19

35

FUSE-PARK,20 AMP

2434017

Unavailable
