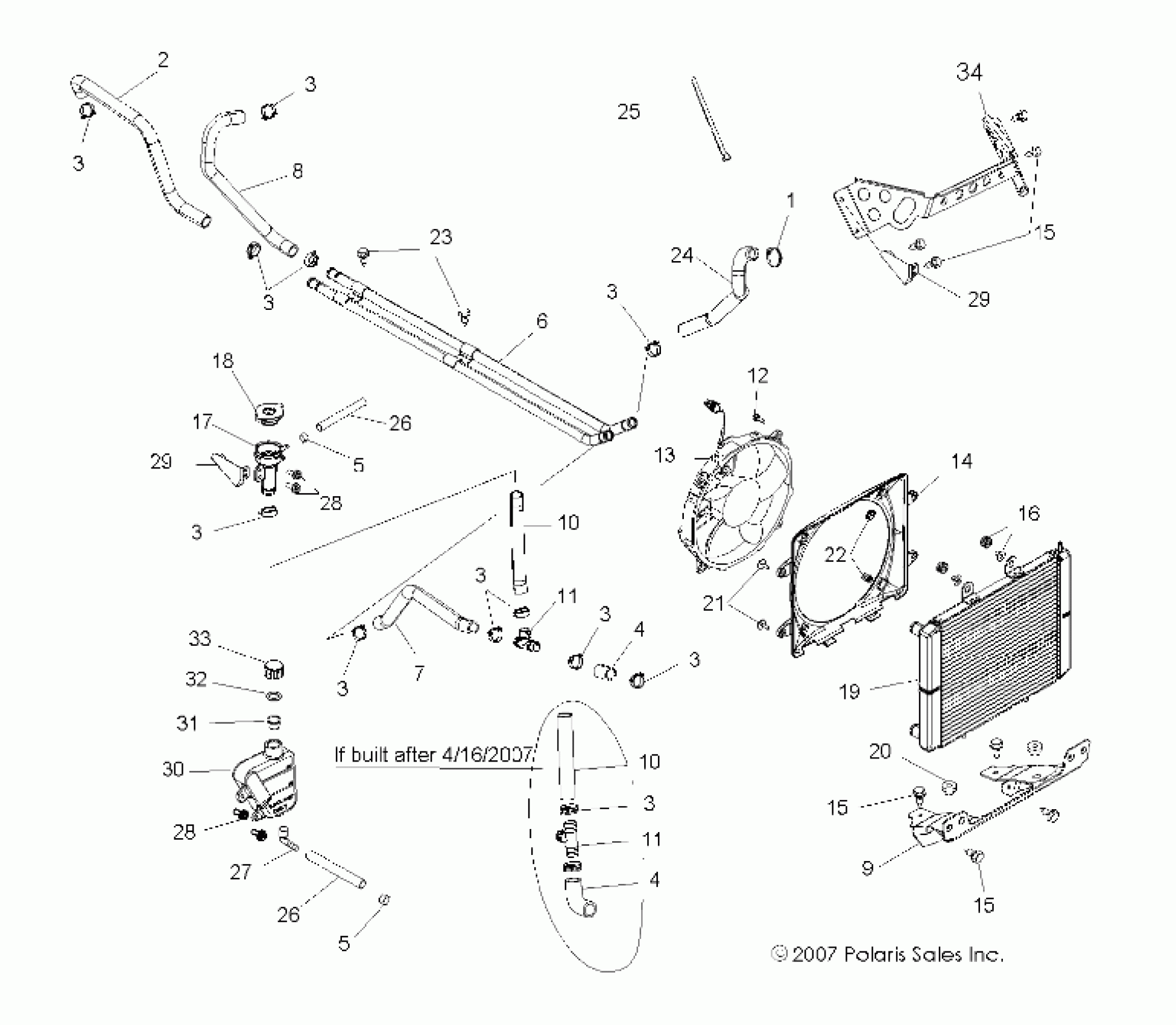

Polaris RZR 800 EFI - R08VH76AD/AG COOLING SYSTEM - R08VH76AD/AG (49RGRCOOL08VISTA) Diagram

#

Description
Price

1

CLAMP, HOSE

7081174

$7.19

2

Hose, Engine Outlet, Rear

5413148

$40.46

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

3

Clamp, Springband

7080843

$3.99

4

Hose [If built after 4/16/07]

5410958

Unavailable

4

Hose, Radiator, Lower, Short [If built before 4/16/07]

5413146

$13.99

4

Hose [If built after 4/16/07]

5410958

Unavailable

4

Hose, Radiator, Lower, Short [If built before 4/16/07]

5413146

$13.99

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

6

Tube, Coolant

1015938

Unavailable

7

Hose, Radiator, Lower [If built after 4/16/07]

5413372

Unavailable

7

Hose, Radiator, Lower, Long [If built before 4/16/07]

5413066

$40.19

8

Hose, Engine Inlet, Rear

5413147

Unavailable

9

Mount, Radiator, Lower, Matte' Black

1015842-458

$52.60

10

Hose, Radiator [If built after 4/16/07]

5413371

Unavailable

10

Hose, Filler Neck [If built before 4/16/07]

5413145

$16.47

10

Hose, Radiator [If built after 4/16/07]

5413371

Unavailable

10

Hose, Filler Neck [If built before 4/16/07]

5413145

$16.47

11

T-Connector

7052397

$23.99

11

T-Connector

7052397

$23.99

12

Screw

7517975

$5.59

13

ASM., FAN

2410413

$251.99

14

Shroud, Fan

5434853

Unavailable

15

SCREW

7517386

$1.49

15

SCREW

7517386

$1.49

15

SCREW

7517386

$1.49

16

ASM., GROMMET AND INSERT

5411975

$3.19

17

Filler, Remote

5435196

Unavailable

18

Cap, Pressure

1240044

Unavailable

19

Radiator, Core

1240319

Unavailable

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

21

Screw

7547220

$5.99

22

U-Clip

7547197

$6.23

23

Screw

7515179

$2.39

24

Hose, Radiator, Upper

5413067

Unavailable

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

26

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8450003-1525

Unavailable

27

FITTING, 90 DEGREE

7052065

$7.19

28

Screw

7512084

$1.49

28

Screw

7512084

$1.49

29

Bracket, Filler Neck

5250993

$13.19

29

Bracket, Filler Neck

5250993

$13.19

30

TANK-SURGE

5436936

$75.99

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

34

Bracket, Mount, Radiator, Upper, Matte' Black

5250497-458

Unavailable
