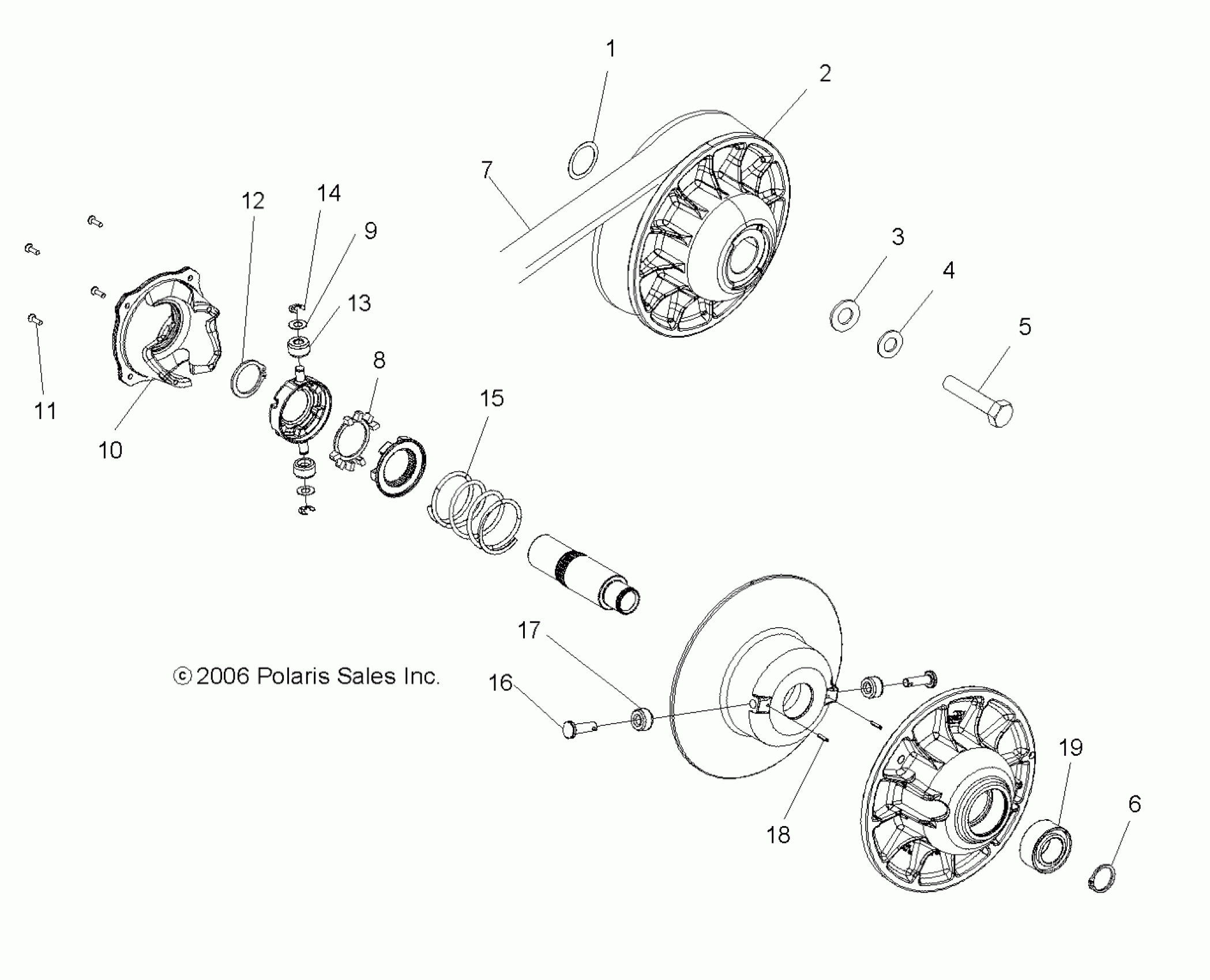

Polaris RZR 800 EFI - R08VH76AD/AG CLUTCH, DRIVEN - R08VH76AD/AG (49ATVCLUTCHDRIVEN08RZR) Diagram

#

Description
Price

1

BUSHING

7556120

Unavailable

2

Asm., Driven Clutch, EBS [Incl. 6,8,9,11-14,16-19]

1322707

$614.99

3

WASHER, DOMED

5250562

$2.39

4

WASHER, SPRING LOCK

7552901

$1.49

5

BOLT

7515382

$2.39

6

RING, RETAINING

3234205

$11.19

7

BELT, DRIVE

3211113

$79.99

7

BELT, DRIVE [HIGH PERFORMANCE ACCESSORY]

3211133

Unavailable

8

RETAINER, SPRING, INNER

7710564

Unavailable

9

WASHER, THRUST

7556226

$5.65

10

Asm., Cam

3234234

$279.99

11

Screw, Cap

3234192

$4.79

12

RING, RETAINING

7710522

$13.59

13

ROLLER, CLUTCH

3234207

$47.99

14

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

15

Spring, Compression, Yellow

3234452

$87.99

16

PIN, ROLLER

3234201

$15.99

17

ROLLER, CLUTCH

3234197

$47.99

18

PIN,SPRING SLOTTED .125X.625

3234202

$3.99

19

BEARING, BALL

3234203

$23.99
