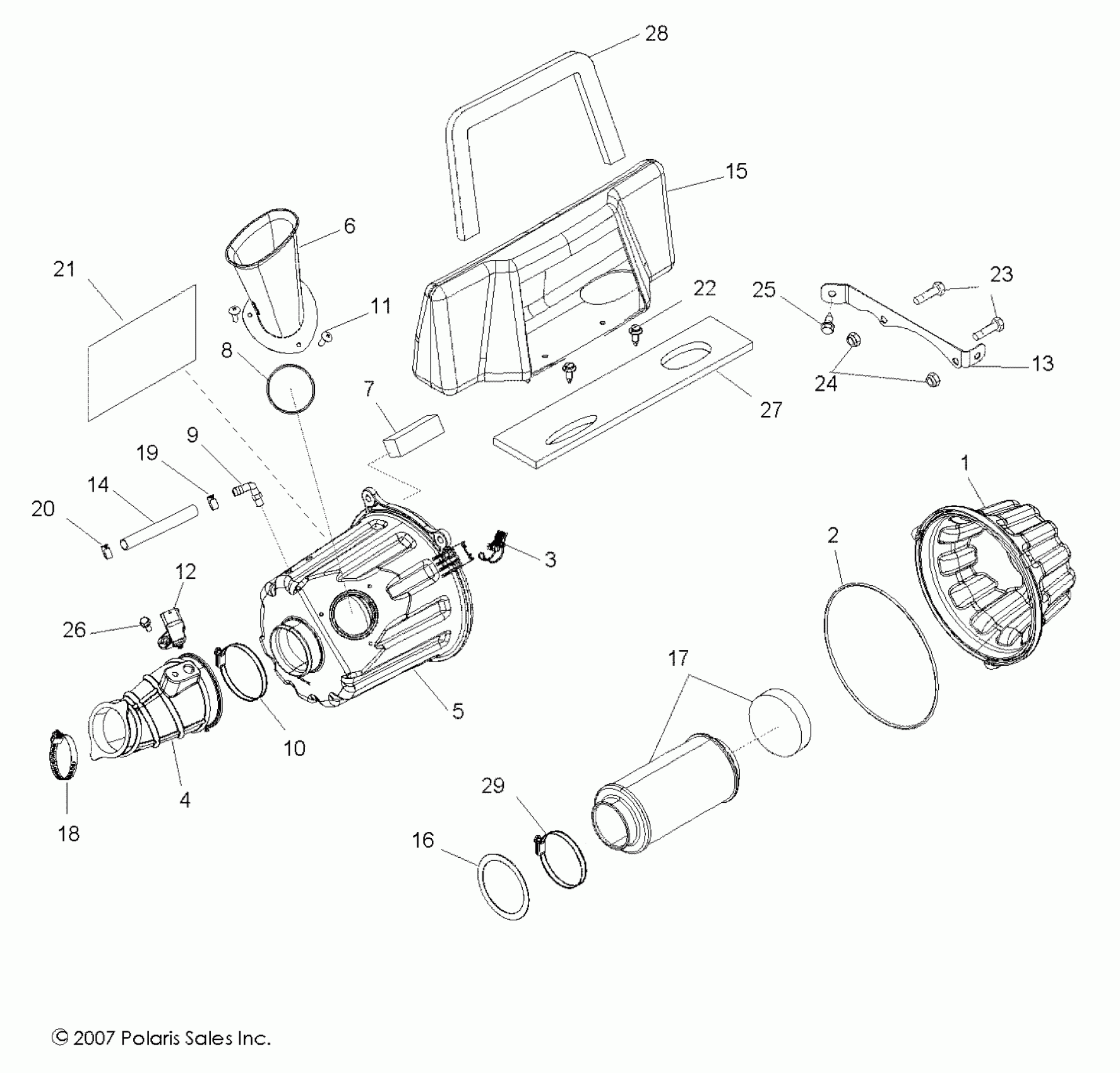

Polaris RZR 800 EFI - R08VH76AD/AG AIR BOX - R08VH76AD/AG (49RGRAIRBOX08VISTA) Diagram

#

Description
Price

1

Cap, Airbox

5436734

$19.30

2

Seal, Airbox

5813078

$11.99

3

Clip, Cover

7710621

$10.03

4

Boot, Throttle Body

5413029

$34.74

5

Can, Airbox

5436733

$131.99

6

Duct, Air Intake

5436735

Unavailable

7

Filter, Crankcase

5812910

$4.79

8

Seal, Duct, Intake

5813099

$7.99

9

Fitting, 90 Degree

7052164

$7.19

10

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

11

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

12

Sensor

2410422

Unavailable

13

Bracket, Mount

5250302

Unavailable

14

Hose, Breather

5412615

Unavailable

15

Box, Intake Black

5436625-070

Unavailable

16

Spacer, Intake Stop

5252309

Unavailable

17

Asm., Filter, Intake [Incl. Filter and Foam Seal]

1240482

$35.99

18

Clamp, Narrow Band

7080511

$4.79

19

Clamp, Hose, Spring, .69 Inch

7080699

$1.59

20

Clamp, Hose, Spring, .75 Inch

7080694

$6.53

21

Foil

5813106

$12.31

22

Rivet

7661855

$1.49

23

Bolt

7512310

$2.39

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49

25

Screw

7512399

$5.59

26

Screw

7517658

$5.59

27

Foam, Seal, Intake Duct

5813199

$20.22

28

Foam, Seal, Airbox

5813198

Unavailable

29

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19
