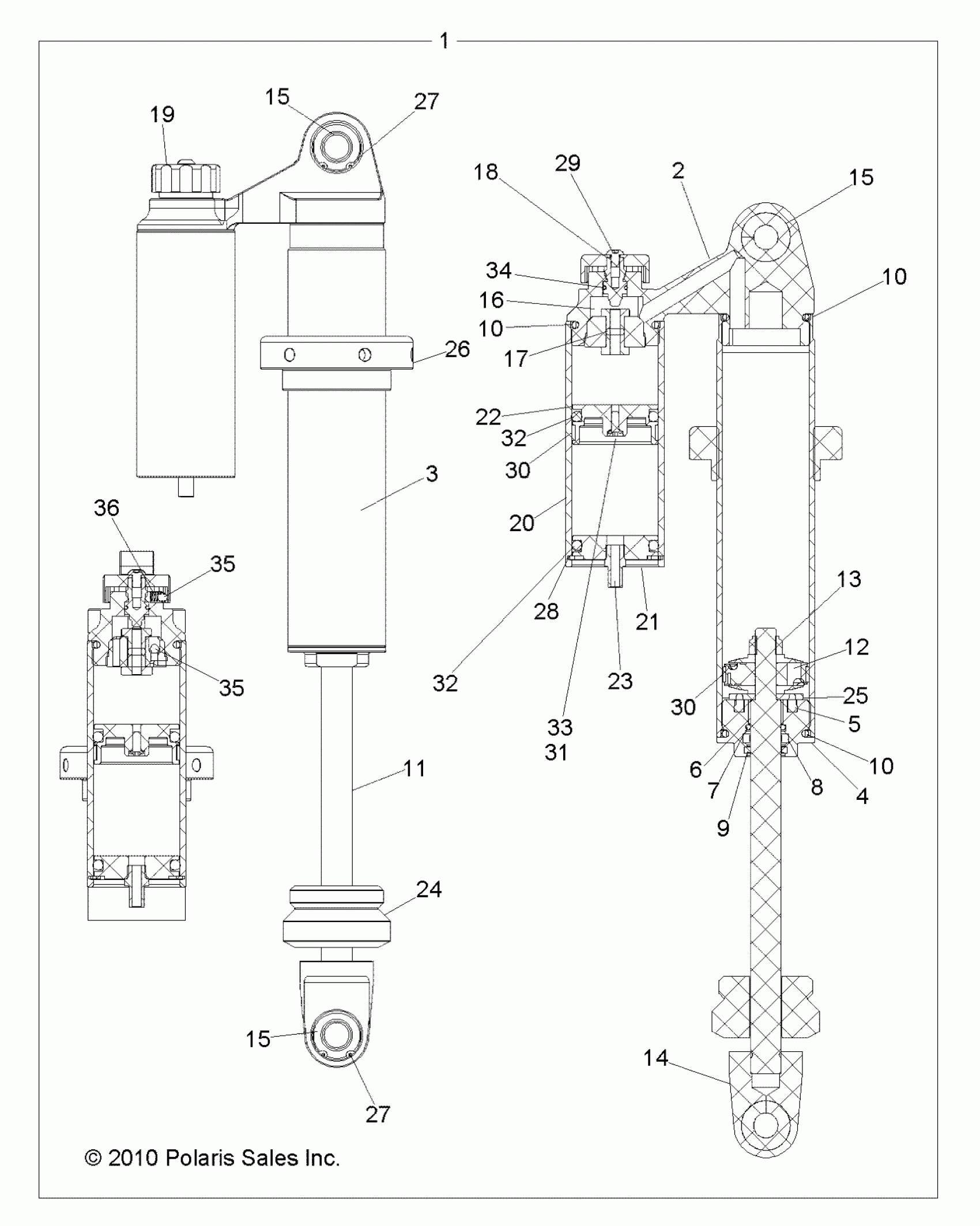

Polaris RZR 800 EFI/EPS - R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS SUSPENSION, REAR SHOCK - R12VH76AI (49RGRSHOCKRR7043645WE) Diagram

#

Description
Price

1

Shock, Rear, Walker Evans

7043645

Unavailable

1

Asm., Seal Head [Incl. 4-10]

1800398

Unavailable

2

Piggyback

1800382

Unavailable

3

BODY

1800383

Unavailable

4

Seal, Head

1800385

$52.24

5

Seal, Head

1800386

Unavailable

6

BUSHING, SHAFT

1800038

$12.70

7

O-RING, SEAL HEAD, BROWN

1800655

$8.70

8

SEAL, U-CUP, BLACK

1800656

$39.99

9

WIPER, D-TYPE

1800034

$36.41

10

O-RING BODY LOOP

1800030

$1.37

10

O-RING BODY LOOP

1800030

$1.37

10

O-RING BODY LOOP

1800030

$1.37

11

Shaft

1800390

$114.99

12

Asm., Piston [Incl. Wear Band]

1800434

$66.99

13

NUT, CRIMP

1800164

$9.52

14

LOOP, SHAFT

1800388

$69.99

15

BEARING

1800391

Unavailable

15

BEARING

1800391

Unavailable

15

BEARING

1800391

Unavailable

16

PISTON

1800217

$56.65

17

SCREW

1800219

$11.11

18

STUD, CLICKER

1800352

$39.99

19

KNOB

1800284

Unavailable

20

BODY, RESERVOIR

1800392

$109.27

21

Cap, End

1800394

Unavailable

22

PISTON, RESERVOIR

1800355

$99.99

23

VALVE

1800021

$48.56

24

BUMPER

1800593

$80.74

25

WASHER

1800393

Unavailable

26

Nut, Spring Retainer

1800395

Unavailable

27

RING, SNAP

1800041

$8.08

27

RING, SNAP

1800041

$8.08

28

RING, SNAP

1800159

$5.56

29

SCREW

1800357

$2.19

30

BAND, PISTON

1800185

$44.51

30

BAND, PISTON

1800185

$44.51

31

Screw, Bleed

1800211

$2.22

32

O-RING

1800184

$5.65

32

O-RING

1800184

$5.65

33

O-RING, BLEED SCREW

1800210

$1.60

34

O-Ring, Stud

1800215

$7.68

35

BALL, D-TENT

1800127

$6.46

35

BALL, D-TENT

1800127

$6.46

36

SPRING-COMP .025X.3, 40.5#

1800128

$11.32
