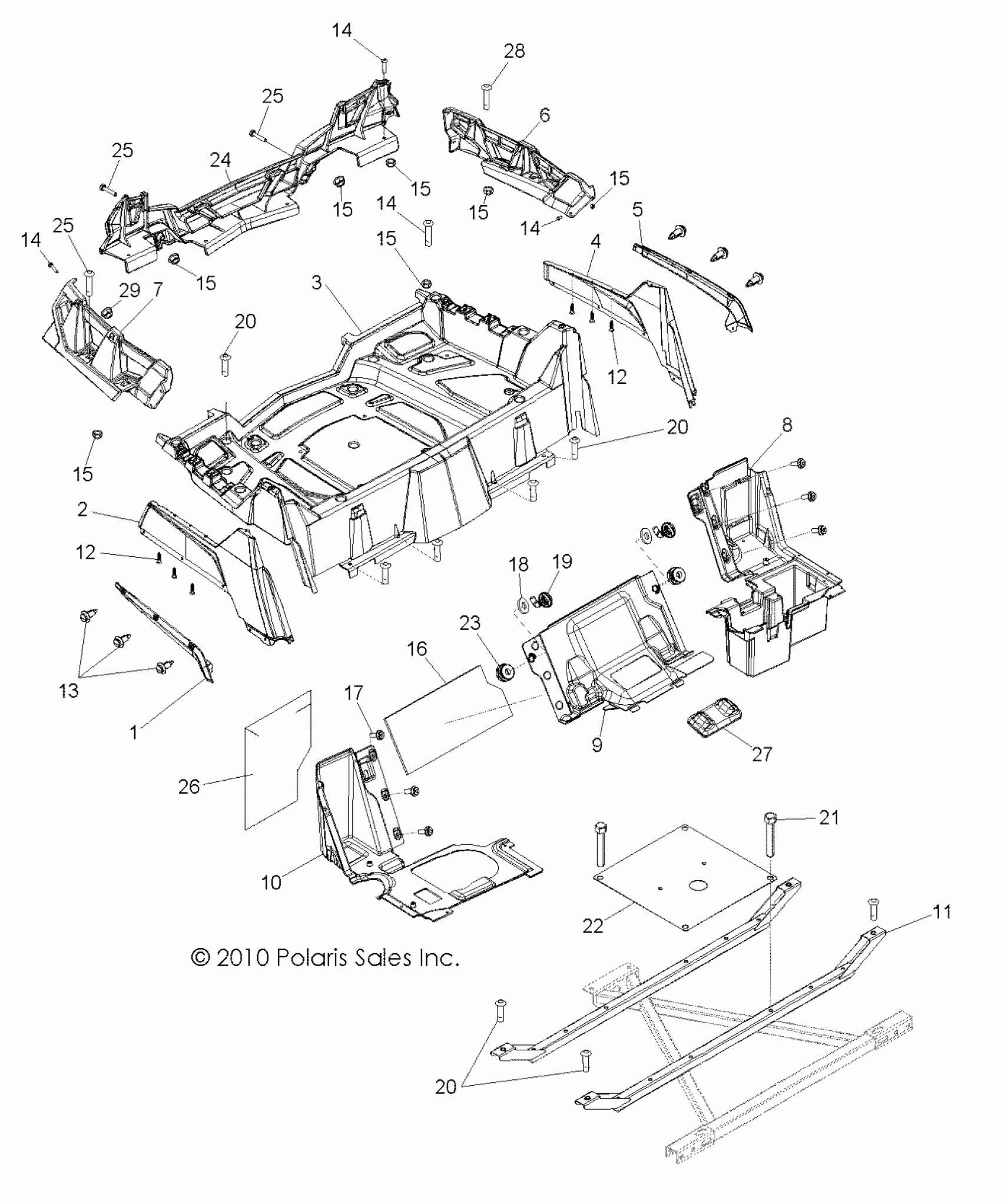

Polaris RZR 800 EFI/EPS - R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS BODY, REAR RACK and FENDERS - R12VH76AB/AD/AF/AH/AI/AJ/AM/EAB/EAS (49RGRRACKMTG11RZR) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, RH BLACK

5438210-070

$44.51

2

Fender, Rear, RH, Indy Red [VH76AD]

5437393-293

$579.99

2

Fender, Rear, RH, Sunset Red [VH76EAS]

5437474-520

Unavailable

2

Fender, Rear, RH, Polaris Pursuit Camo [VH76AH]

5437862-587

Unavailable

2

Fender, Rear, RH, Vogue Silver [VH76AJ]

5437474-354

$271.41

2

Fender, Rear, RH, Black [VH76AB]

5437474-070

$949.99

2

Fender, Rear, RH, White Lightning [VH76AF][VH76AI]

5437474-599

Unavailable

2

Fender, Rear, RH, Magnetic Metallic [VH76AM]

5437474-603

$207.14

2

Fender, Rear, RH, Broadwalk Blue [VH7EAB]

5437474-524

Unavailable

3

ASM., RACK, REAR, BLACK [INCL. WARNING DECALS]

2634104-070

Unavailable

4

Fender, Rear, LH, Magnetic Metallic [VH76AM]

5437472-603

$207.14

4

Fender, Rear, LH, Polaris Pursuit Camo [VH76AH]

5437861-587

Unavailable

4

Fender, Rear, LH, Red [VH76AD]

5437392-293

$579.99

4

Fender, Rear, LH, Sunset Red [VH7EAS]

5437472-520

Unavailable

4

Fender, Rear, LH, Indy Red [AF]

5437472-293

Unavailable

4

Fender, Rear, LH, Black [VH76AB]

5437472-070

$899.99

4

Fender, Rear, LH, White Lightning [VH76AF][VH76AI]

5437472-599

Unavailable

4

Fender, Rear, LH, Vogue Silver [VH76AJ]

5437472-354

Unavailable

4

Fender, Rear, LH, Broadwalk Blue [VH7EAB]

5437472-524

Unavailable

5

FLAIR, FENDER, REAR, LH, BLACK

5438211-070

$48.56

6

EXTENDER, RACK, REAR, LH, BLACK

5438654-070

$55.56

7

EXTENDER, RACK, REAR, RH, BLACK

5438655-070

$55.56

8

PANEL, DIVIDER, REAR, LH, BLACK

5438336-070

$104.99

9

PANEL, DIVIDER, REAR, BLACK

5438335-070

Unavailable

10

PANEL, DIVIDER, REAR, RH, BLACK

5438957-070

$56.65

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.27

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

FOAM, SOUND ATTENTION, CUT

5813658

$52.60

17

Screw

7512084

$1.19

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.56

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$5.69

22

Plate, Shield, Box [Built 1/03/12 and After]

5256351

$52.60

22

Plate, Shield, Box [Built 1/02/12 and Before]

5251419

$52.60

23

GROMMET-LATCH

5413428

$3.17

24

EXTENDER, RACK, REAR, BLACK

5438656-070

$71.43

25

SCREW

7518375

$1.41

25

SCREW

7518375

$1.41

25

SCREW

7518375

$1.41

26

FOIL, RH PANEL

5813380

$4.84

27

COVER, SEAT BELT BUCKLE, REAR

5813553

$32.37

28

SCREW

7518418

$3.97

29

NUT, NYLOK, FLANGED

7547494

$3.97
