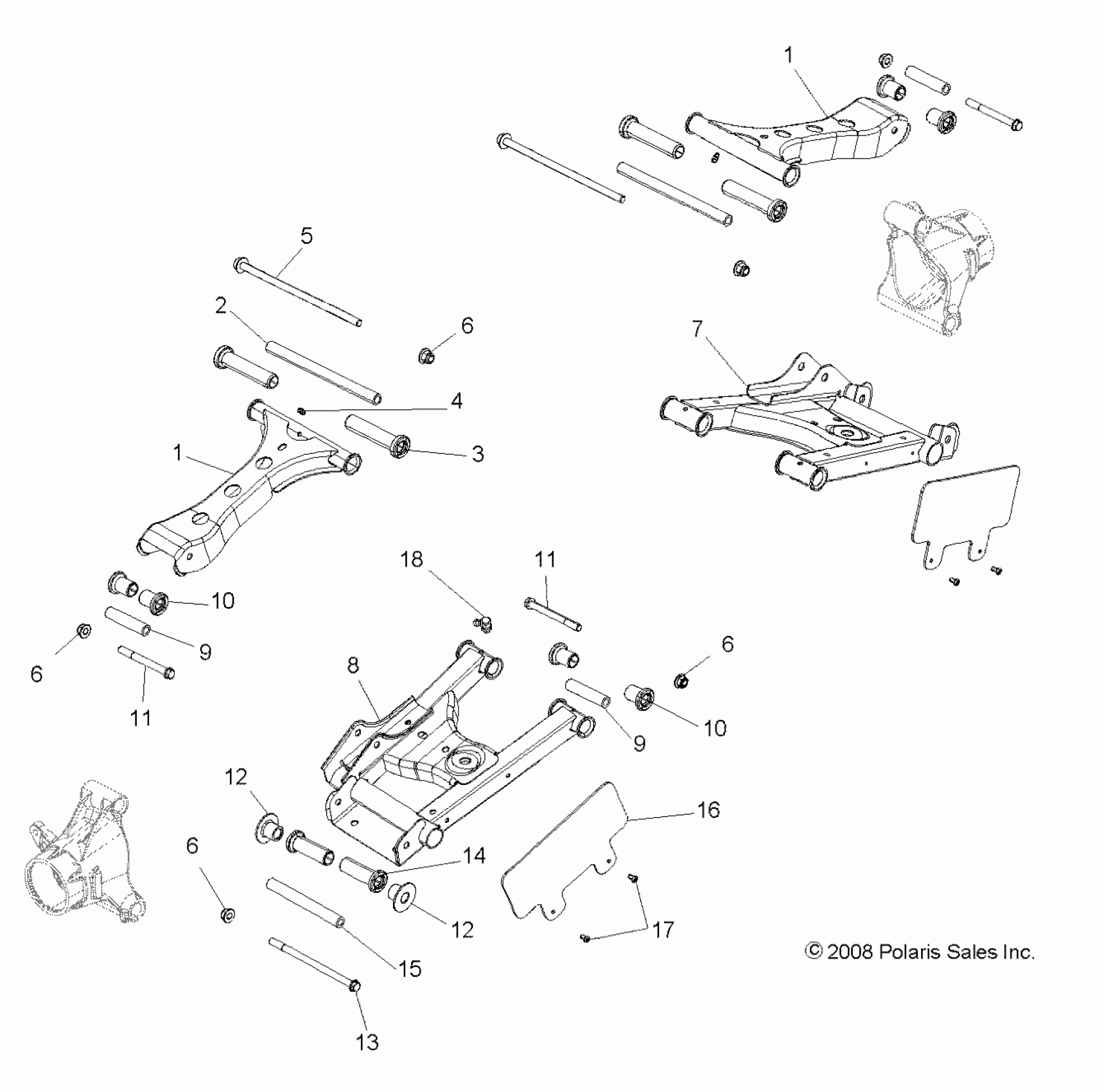

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 SUSPENSION, REAR CONTROL ARMS - R09VH76 ALL OPTIONS (49RGRSUSPRR09RZR) Diagram

#

Description
Price

1

Arm, Control, Upper, Rear, Matte' Black

1015450-458

Unavailable

1

Arm, Control, Upper, Rear, Matte' Black

1015450-458

Unavailable

2

Tube, Pivot

5136468

Unavailable

3

BUSHING, A-ARM, LONG

5436973

$5.19

3

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

Fitting, Lubrication

7080433

$1.49

5

SCREW

7519086

$27.99

6

NUT, FLANGED

7547313

$1.49

6

NUT, FLANGED

7547313

$1.49

6

NUT, FLANGED

7547313

$1.49

6

NUT, FLANGED

7547313

$1.49

7

Arm, Control Lower, Rear, Matte' Black, LH

1015451-458

Unavailable

8

Arm, Control Lower, Rear, Matte' Black, RH

1015452-458

Unavailable

9

TUBE, PIVOT

5136100

$15.99

9

TUBE, PIVOT

5136100

$15.99

10

Bushing, Control Arm

5436832

$2.38

10

Bushing, Control Arm

5436832

$2.38

11

Bolt, Flanged

7518468

$5.59

11

Bolt, Flanged

7518468

$5.59

12

BUSHING, PIVOT

5136102

$10.39

12

BUSHING, PIVOT

5136102

$10.39

13

Bolt, Flanged

7518668

$7.19

14

BUSHING, CONTROL ARM

5437229

$6.39

15

TUBE, PIVOT

5136101

Unavailable

16

Shield, CV, Rear, Black

5436014-070

$12.99

17

Screw

7512084

$1.49

18

FITTING, ZERK

7080510

$5.59
