Description

Price

1

Boot, Seal, Rod End

5411920

Unavailable

2

Rod End

7061054

Unavailable

3

Nut, Jam, LH

7547028

$2.39

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, PASSENGER, SIDE RACK

5412013

$55.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT

7515382

$2.39

9

SCREW

7518644

$4.79

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

12

SPACER-STEERING SHAFT

5252796

$4.79

12

SPACER-STEERING SHAFT

5252796

$4.79

13

Bearing, Steering

3514646

$15.99

13

Bearing, Steering

3514646

$15.99

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547188

$5.59

16

CAP-STEERING WHEEL

5436536

$31.99

17

Tube, Pivot, Matte' Black

1016721-458

Unavailable

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

Shaft, Steering, Upper/Lower [Built 1/02/09 and After]

1823681

$251.99

19

Shaft, Steering, Upper/Lower [Built 1/01/09 and Before]

1542610

Unavailable

20

BOLT [LOCK PATCH]

7518895

$3.99

21

NUT, NYLOK

7547385

$1.49

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

BOOT, DRIVER SIDE, RACK

5412012

$59.99

24

Bolt

7517909

$5.59

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

Nut

7547177

$2.39

27

Pin, Cotter

7661203

$1.49

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1823497

$547.57

29

BOLT

7512371

$4.79

30

BOLT, SHOULDER

7517607

$5.59

30

BOLT, SHOULDER

7517607

$5.59

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

Asm., Shock, Oil Locking

7043439

Unavailable

34

BOLT, SHOULDER

7518786

$2.39

34

BOLT, SHOULDER

7518786

$2.39

35

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

35

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

36

BOLT

7512325

$2.39

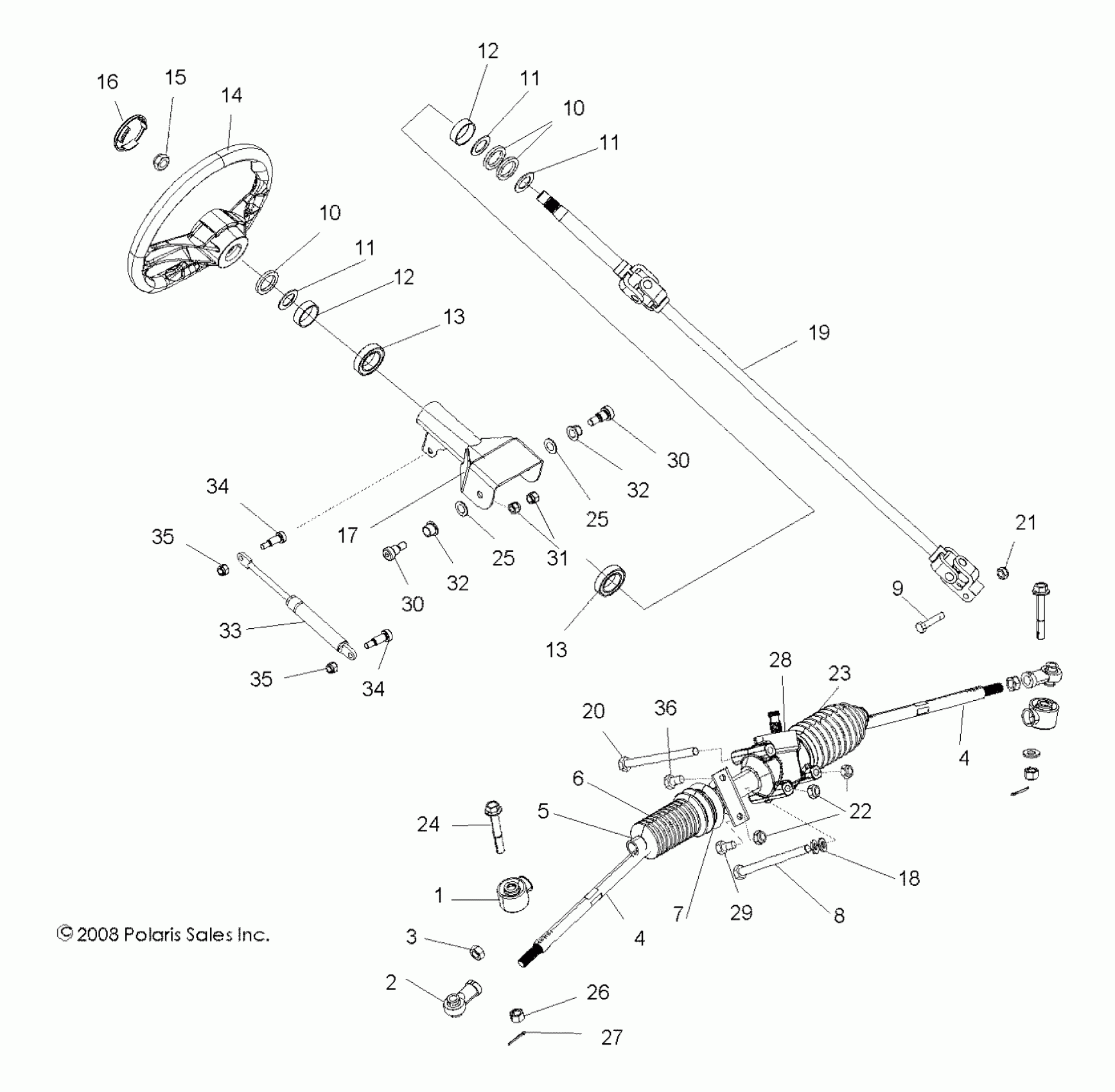

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 STEERING, STEERING ASM. - R09VH76 ALL OPTIONS (49RGRSTEERING09RZR) Diagram

Boot, Seal, Rod End

Rod End

Nut, Jam, LH

TIE ROD, INNER

TIE ROD, INNER

CLAMP, BOOT, SMALL

BOOT, PASSENGER, SIDE RACK

CLAMP, BOOT, LARGE

BOLT

SCREW

WASHER-NEOPREME,28 OD X 20 ID

WASHER-NEOPREME,28 OD X 20 ID

WASHER

WASHER

WASHER

SPACER-STEERING SHAFT

SPACER-STEERING SHAFT

Bearing, Steering

Bearing, Steering

WHEEL-STEERING, 14"

NUT

CAP-STEERING WHEEL

Tube, Pivot, Matte' Black

WASHER-.344X.688X.063 FL-Y

Shaft, Steering, Upper/Lower [Built 1/02/09 and After]

Shaft, Steering, Upper/Lower [Built 1/01/09 and Before]

BOLT [LOCK PATCH]

NUT, NYLOK

NUT-5/16-18 NYLOK-Y

BOOT, DRIVER SIDE, RACK

Bolt

WASHER

WASHER

Nut

Pin, Cotter

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

BOLT

BOLT, SHOULDER

BOLT, SHOULDER

NUT-HEX-3/8-16 A ZTB NYL

BUSHING-PEDAL PIVOT

BUSHING-PEDAL PIVOT

Asm., Shock, Oil Locking

BOLT, SHOULDER

BOLT, SHOULDER

NUT-6MM X 1 NYLOK-Z

NUT-6MM X 1 NYLOK-Z

BOLT
