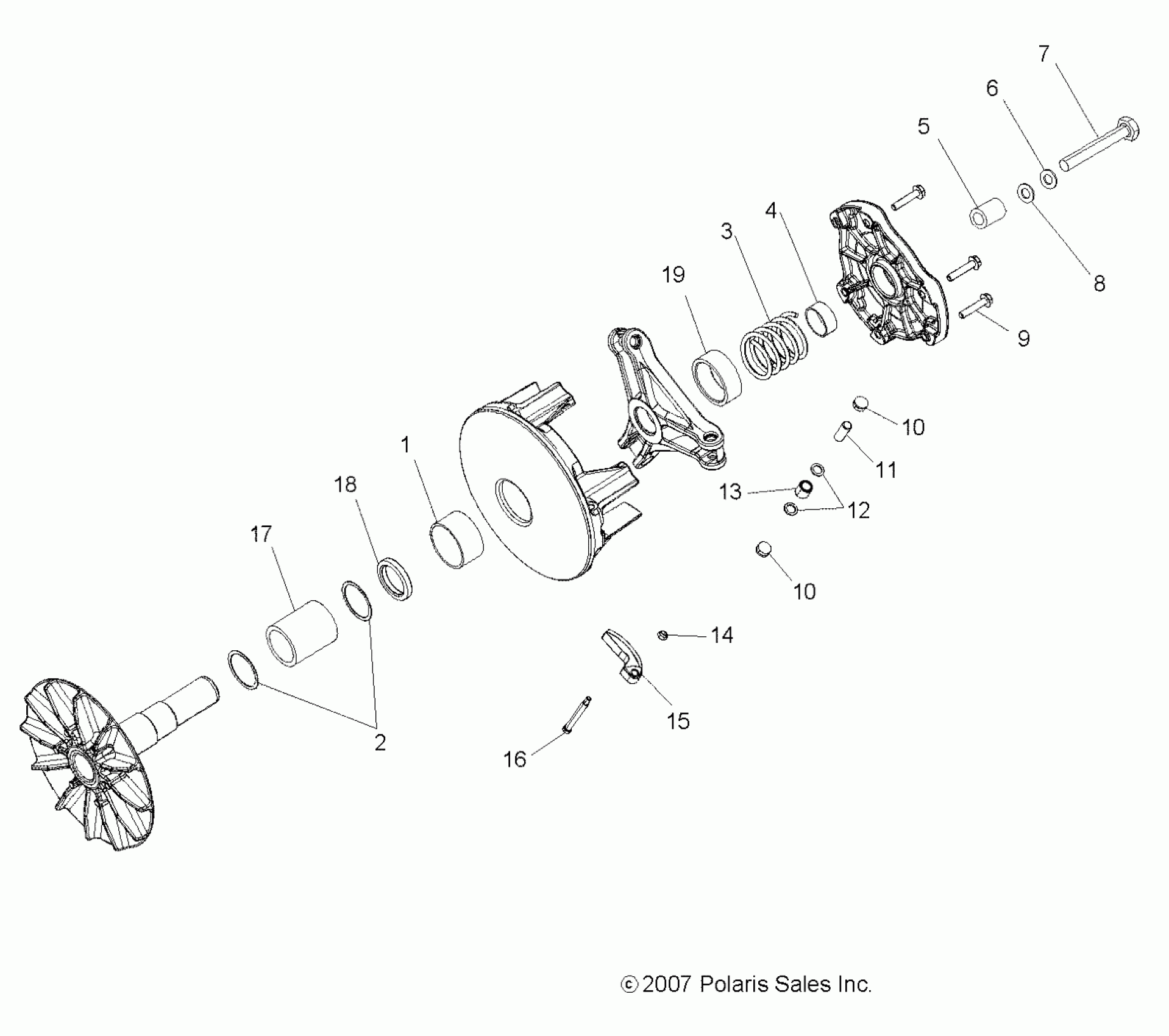

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 DRIVE TRAIN, PRIMARY CLUTCH - R09VH76 ALL OPTIONS (49RGRCLUTCHDRV08VISTA) Diagram

#

Description
Price

-

Asm., Drive Clutch [Incl. All Less 3,5-8,15]

1322743

$719.99

1

BEARING

3514492

$31.99

2

WASHER-CLUTCH,VESPEL

7556335

$6.39

3

Spring, Clutch, Blue/Red

7043199

$47.99

4

Bearing, Cover

3576510

$9.59

5

BUSHING-.437 X.770 X.50

5430261

$7.19

6

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

7

Bolt

7518197

Unavailable

8

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

9

SCREW

7518062

$4.79

10

BUTTON, CLUTCH

5431936

Unavailable

10

BUTTON, CLUTCH

5431936

Unavailable

11

PIN-ROLLER

5020422

$2.39

12

WASHER,MULTILUBE

5430945

$1.59

13

ASM-ROLLER AND BUSHING

1321622

$32.37

14

NUT, FLEXLOC

7541906

$3.19

15

Weight, Shift, 20-62F [Built 2/06/09 and After]

5632286

$13.99

15

Weight, Shift, 20-62 [Built 2/05/09 and Before]

5631700

$13.99

16

BOLT, SHOULDER

7512266

$3.19

17

Asm., Bearing, Non-Braking

1521185

$59.99

18

Spacer, Clutch

5631903

$39.59

19

Spacer, Clutch, Limiter

5437199

$8.87
