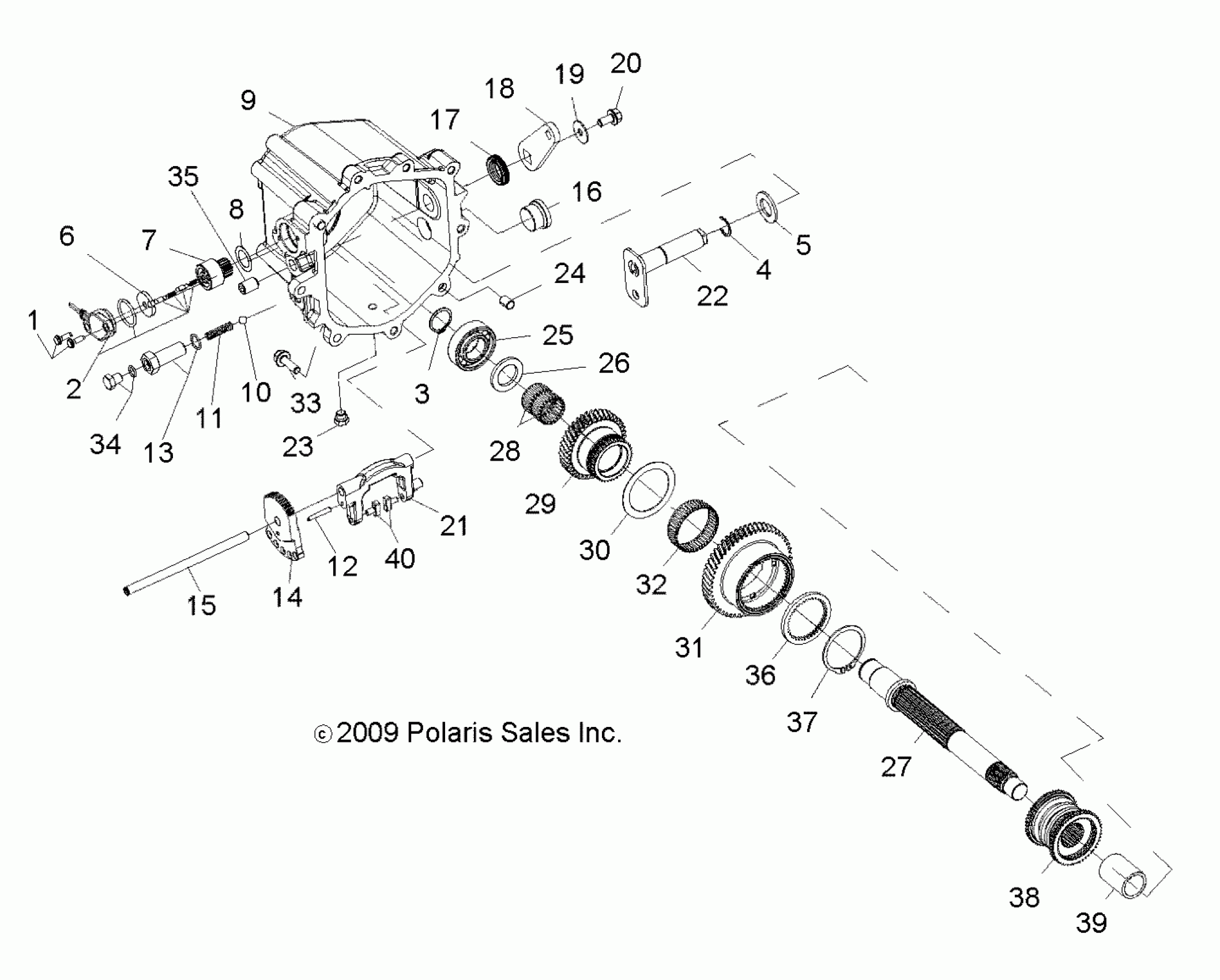

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 DRIVE TRAIN, MAIN GEARCASE INTL COMP 2 (BUILT 10/15/08 AND BEFORE) - R09VH76 ALL OPTIONS (49RGRTRANSINTL209RZRB) Diagram

#

Description
Price

-

Asm., Gearcase, Complete

1332671

Unavailable

1

SCREW, FLANGE

3234525

$9.59

2

Asm., Sensor

3234871

$241.99

3

Ring, Retaining

3234893

Unavailable

4

Ring, Retaining

3234866

$9.70

5

Washer

3234862

Unavailable

6

SPACER

3234523

$11.19

7

SENSOR, DRUM GEAR

3234522

$79.19

8

WASHER

3234521

$7.19

9

Asm., Housing, Shift Cover [Incl. 17]

3234864

$514.99

10

BALL

3234520

$5.59

11

SPRING, COMPRESSION

3234870

$12.79

12

Pin, Spring

3234487

$5.59

13

ASM., SLEEVE, DETENT

3234481

$43.99

14

Plate, Gear Detent

3234486

Unavailable

15

Pin, Pivot

3234485

Unavailable

16

PLUG, FILL, W/O-RING

5133736

$23.99

17

SEAL, OIL

3234493

$11.99

18

LEVER, SHIFT CABLE

3234492

$27.99

19

WASHER

3234491

$5.59

20

SCREW

3234490

$5.59

21

Asm., Clutch Yoke

3234867

Unavailable

22

Asm., Shifter

3234865

$121.02

23

PLUG, DRAIN

5133731

$11.19

24

BUSHING, DOWEL

3234503

$6.39

25

BEARING, BALL

3234502

$31.99

26

Washer, Thrust

3234510

Unavailable

27

Asm., Clutch Shaft

3234872

$299.99

28

Bearing, Needle

3234532

$24.99

29

Gear, Clutch, 38T

3234873

$335.99

30

WASHER, THRUST

3234887

$27.99

31

Gear, Clutch, 53T

3234535

Unavailable

32

BEARING, NEEDLE

3234536

$31.99

33

SCREW, FLANGE

7518172

$7.19

34

Asm., Screw

3234869

$10.55

35

SET, SCREW

3234484

$5.59

36

PLATE, RETAINING

3234874

Unavailable

37

RING, RETAINING

3234879

$12.79

38

Asm., Shift Collar

3234875

$709.99

39

Spacer, Park/Reverse

3234876

$84.99

40

BLADE, CLUTCH YOKE

3234868

$12.79
