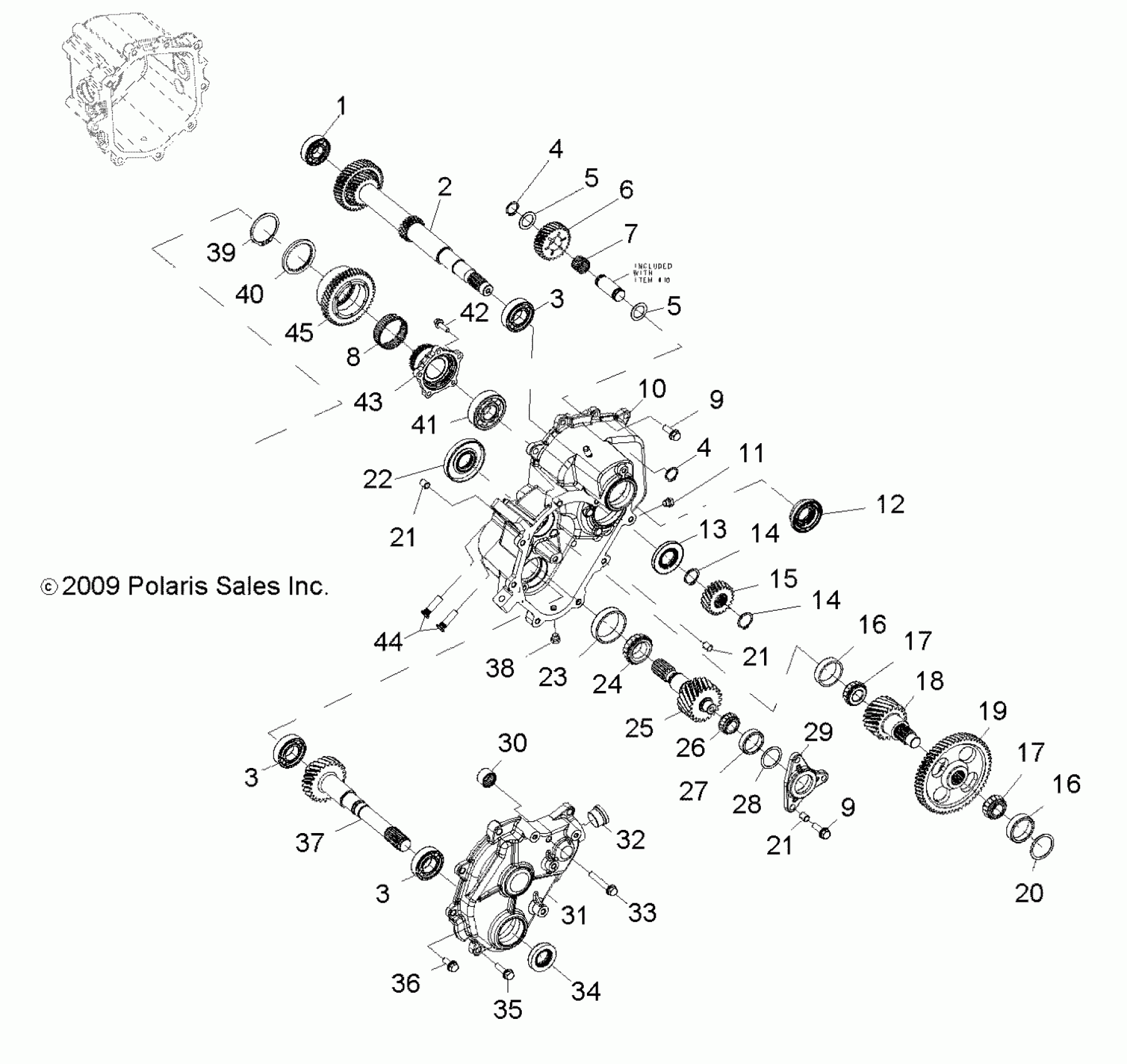

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 DRIVE TRAIN, MAIN GEARCASE INTL COMP 1 (BUILT 10/15/08 AND BEFORE) - R09VH76 ALL OPTIONS (49RGRTRANSINTL09RZRB) Diagram

#

Description
Price

-

Asm., Gearcase, Complete

1332671

Unavailable

1

BEARING, BALL

3234549

$23.74

2

Asm., Gear, Shaft/Pin

3234550

$649.99

3

BEARING, BALL

3234502

$37.99

3

BEARING, BALL

3234502

$37.99

3

BEARING, BALL

3234502

$37.99

4

RING, RETAINING

3234552

$7.14

4

RING, RETAINING

3234552

$7.14

5

WASHER, THRUST

3234878

$13.75

5

WASHER, THRUST

3234878

$13.75

6

Gear, Reverse, 29T

3234554

Unavailable

7

BEARING, NEEDLE

3234555

Unavailable

8

BEARING, NEEDLE

3234536

$31.75

9

SCREW

7518172

$7.14

9

SCREW

7518172

$7.14

10

Asm, Transmission/Transmission Case [Incl. 4,12,13,22,44]

3234863

$549.99

11

PLUG, DRAIN W/O-RING

5133731

$11.32

12

SEAL, OIL

3234551

$47.49

13

Seal, Oil

3234546

$48.40

14

RING, RETAINING

3234547

$4.76

14

RING, RETAINING

3234547

$4.76

15

GEAR, MAIN PINION

3234548

$93.08

16

BEARING, CUP

3234556

$11.90

16

BEARING, CUP

3234556

$11.90

17

BEARING, CONE

3234557

$19.84

17

BEARING, CONE

3234557

$19.84

18

Shaft, Pinion, 20T

3234558

$185.24

19

GEAR, MAIN OUTPUT

3234559

$239.99

20

KIT, SHIM

3234560

Unavailable

21

BUSHING, DOWEL

3234503

$6.35

21

BUSHING, DOWEL

3234503

$6.35

21

BUSHING, DOWEL

3234503

$6.35

22

SEAL, OIL

3610102

$32.37

23

Bearing, Cup

3234562

$40.46

24

Bearing, Cone

3234563

Unavailable

25

Shaft, Pinion, 21T

3234564

$299.99

26

BEARING, CONE

3234565

$23.74

27

BEARING, CUP

3234566

$15.87

28

KIT, SHIM

3234567

$43.56

29

CAP, BEARING RETAINER

3234568

$61.74

30

BEARING, NEEDLE

3234561

$19.84

31

ASM., COVER, TRANSMISSION [INCL. 34]

3234496

$354.99

32

PLUG, FILL W/O-RING

5133736

$24.27

33

SCREW

3234571

Unavailable

34

SEAL, OIL

3234570

$28.32

35

SCREW

3234618

$11.39

36

SCREW, FLANGE

3234511

Unavailable

37

Shaft, Pinion, 24T

3234569

$409.99

38

PLUG, DRAIN

5133731

$11.32

39

RING, RETAINING

3234879

$13.75

40

PLATE, RETAINING

3234874

Unavailable

41

BEARING, BALL

3234545

$37.99

42

Screw

3234544

$5.56

43

FLANGE, PARK

3234877

Unavailable

44

STUD, PRESS FIT

7518378

$1.59

45

Gear, Clutch, Reverse, 47T

3234542

$194.74
