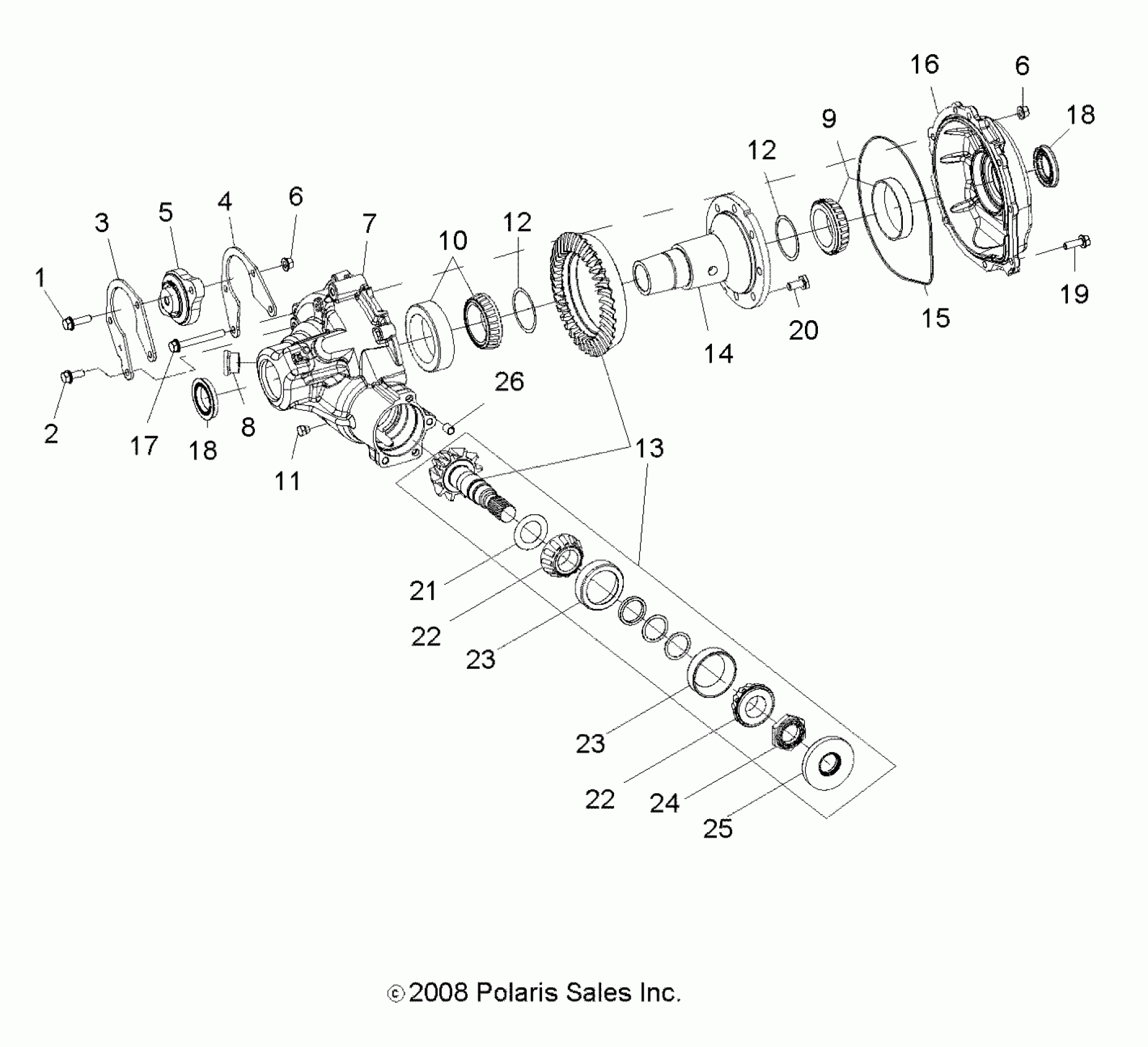

Polaris RZR 800 EFI ALL OPTIONS - R09VH76 DRIVE TRAIN, GEARCASE, CARRIER, INTL COMP (BUILT 10/16/08 AND AFTER) - R09VH76 ALL OPTIONS (49RGRGEARCASERR09RZRA) Diagram

#

Description
Price

1

SCREW

3234618

$9.59

2

SCREW, FLANGE

3234511

$4.79

3

BRACKET, DIFFERENTIAL MOUNT, REAR, RH

5250016

$35.99

4

BRACKET, DIFFERENTIAL MOUNT, REAR, LH

5250329

$35.99

5

MOUNT, DIFFERENTIAL, REAR

1332450

$63.99

6

NUT, FLANGE

3234500

$4.79

6

NUT, FLANGE

3234500

$4.79

7

Asm., Differential Housing, Rear [Incl. 13,18,21-25]

3234860

Unavailable

8

PLUG, FILL W/O-RING

5133736

$23.99

9

BEARING, TAPERED ROLLER

3514435

$123.99

10

BEARING, TAPERED ROLLER

3514657

$107.99

11

PLUG, DRAIN

5133731

$11.19

12

KIT, SHIM

3234504

Unavailable

12

KIT, SHIM

3234504

Unavailable

13

Asm., Gear and Pinion

-------

Unavailable

14

Axle, Spool

3234505

Unavailable

15

O-Ring

5412338

$9.59

16

Asm., Cover, Rear [Incl. 18]

3234861

$229.99

17

SCREW

3234501

$7.19

18

SEAL, OIL, SHAFT

3610159

$39.99

18

SEAL, OIL, SHAFT

3610159

$39.99

19

SCREW, FLANGED

7518172

$7.19

20

SCREW

7518173

$4.79

21

SHIM

-------

Unavailable

22

Cone, Tapered Roller Bearing

-------

Unavailable

22

Cone, Tapered Roller Bearing

-------

Unavailable

23

Cup, Tapered Roller Bearing

-------

Unavailable

23

Cup, Tapered Roller Bearing

-------

Unavailable

24

Nut, Pinion

-------

Unavailable

25

SEAL, OIL PINION

3610102

$31.99

26

BUSHING, DOWEL

3234503

$6.39
