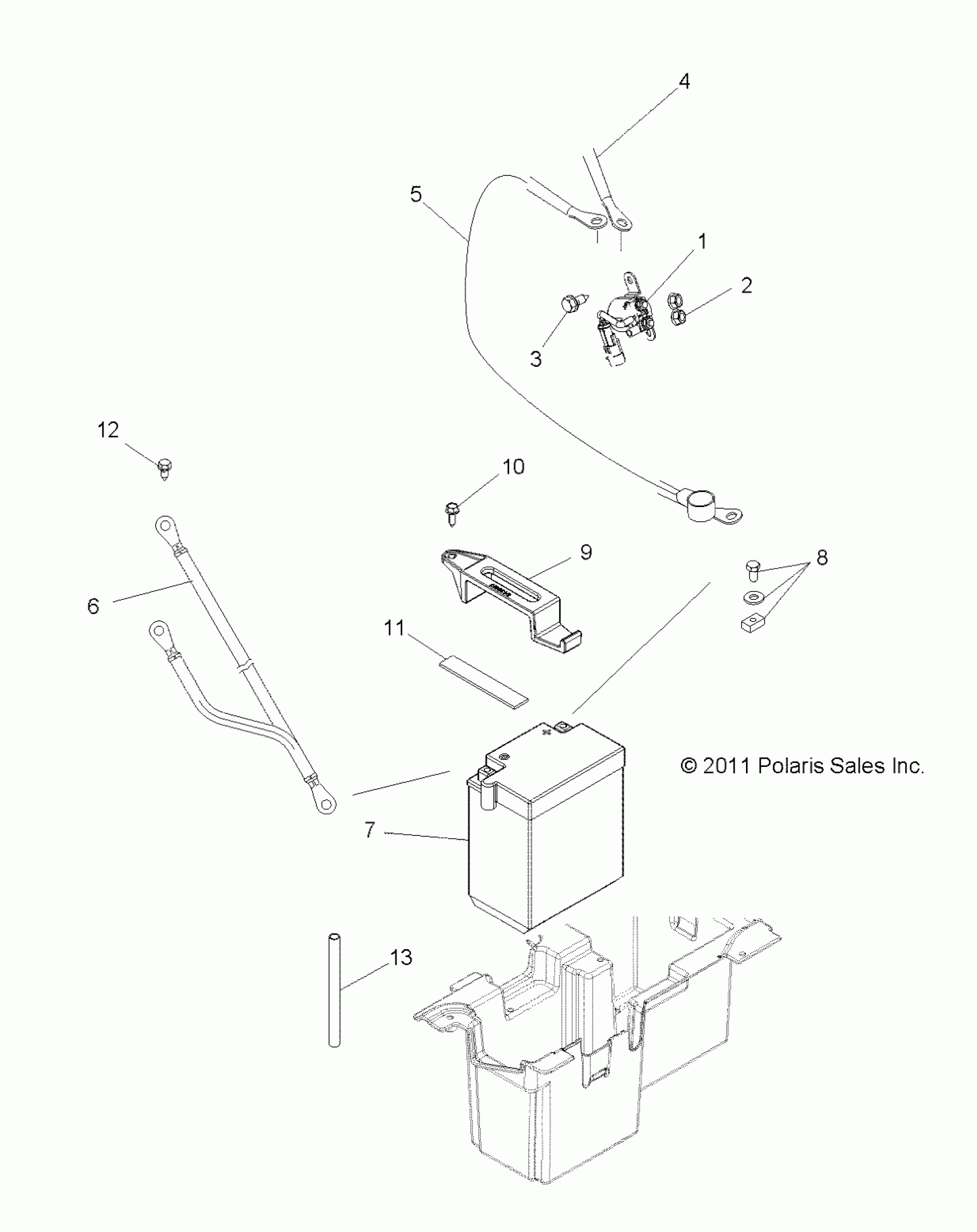

Polaris RZR 570 - Z14VH57AD/6EAI/6EAW ELECTRICAL, BATTERY - Z14VH57AD/6EAI/6EAW (49RGRBATTERY12RZR570) Diagram

SOLENOID, STARTER

4012001

Unavailable

NUT, FLANGED

7547270

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

Cable, Solenoid to Starter

4011498

$79.19

CABLE-BATT TO SOLENOID/TERMINA

4011497

$43.99

CABLE, GROUND, ENGINE/BATTERY/CHASSIS

4014470

$47.99

BATTERY-14AH,DRY W/O ACID [AD]

4012622

Unavailable

BATTERY [EAI][EAW]

4010630

$147.60

KIT, BATTERY BOLT [AD]

2202213

$3.79

BATTERY BOLT KIT [EAI][EAW]

2201357

$11.19

STRAP, BATTERY RETAINER [AD]

5438917

$10.39

STRAP, BATTERY HOLDDOWN [EAI][EAW]

5258648

$7.19

Screw

7512098

$1.59

PAD, RACK MOUNT

5810455

$3.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

TUBE-BATTERY VENT,305MM

5435030

$3.99
