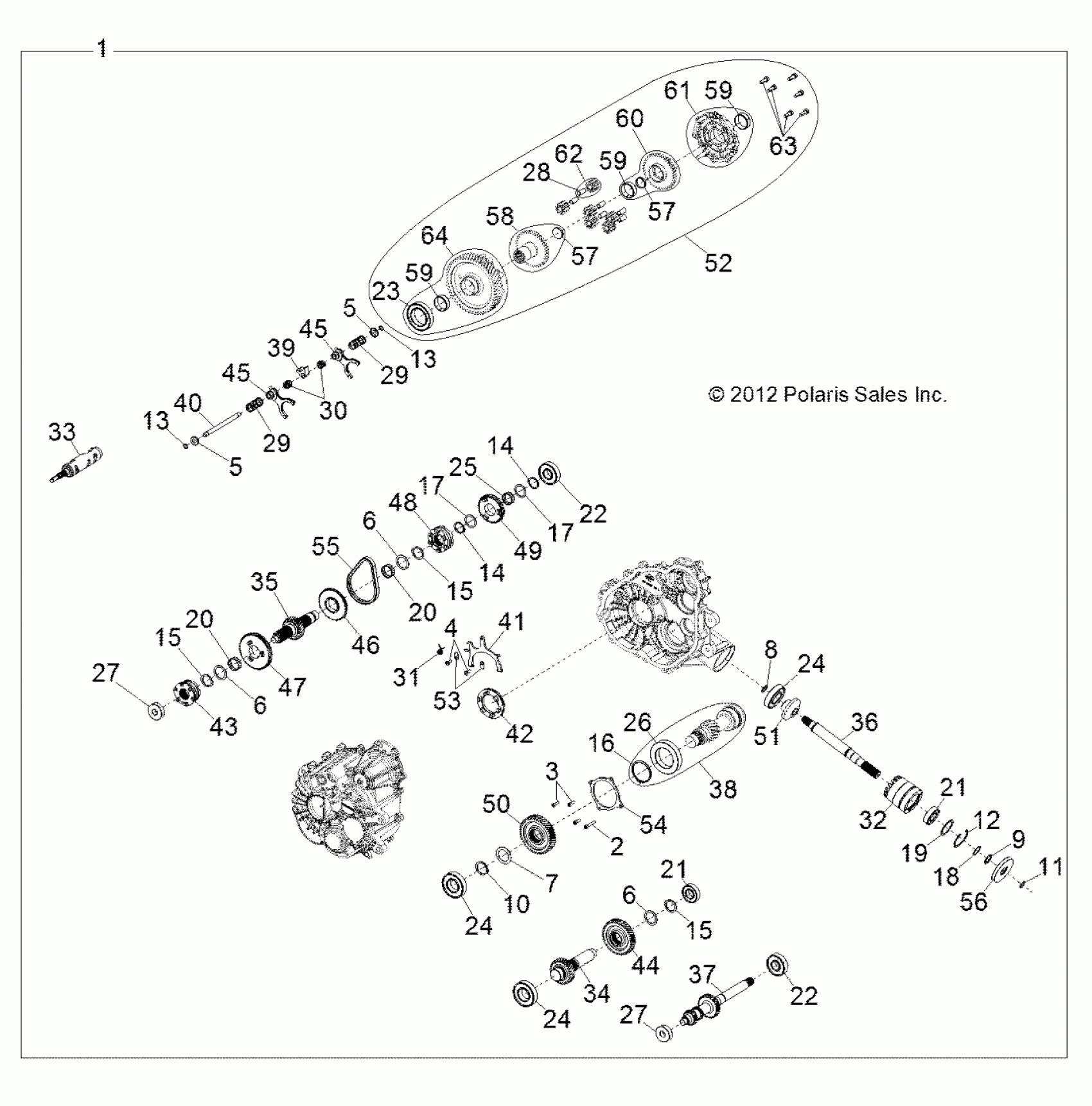

Polaris RZR 570 - Z14VH57AD/6EAI/6EAW DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z14VH6EAI/6EAW (49RGRTRANSINTL1333084) Diagram

#

Description
Price

1

ASM. GEARCASE [Incl. All]

1333084

Unavailable

2

SCREW, SOCKET/CAP

3235208

$11.11

3

SCREW, SOCKET HEAD, CAP

3235332

$3.97

4

SCREW, HEX, PAN HEAD

3234309

$7.14

5

WASHER-CUP

3234091

$9.52

5

WASHER-CUP

3234091

$9.52

6

WASHER

3235211

$10.32

6

WASHER

3235211

$10.32

6

WASHER

3235211

$10.32

7

WASHER

3235212

$13.49

8

WASHER

3235213

$15.87

9

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

10

RING, RETAINING

3233364

$6.46

11

RING, RETAINING, EXTERNAL

3234318

$3.17

12

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

13

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

13

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

14

RING, RETAINING

3234205

$11.11

14

RING, RETAINING

3234205

$11.11

15

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

15

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

15

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

16

RING, RETAINING

3235216

$10.32

17

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

17

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

18

SHIM

3234272

$36.41

19

SHIM

3234273

$13.75

20

BEARING, NEEDLE

3233014

$43.65

20

BEARING, NEEDLE

3233014

$43.65

21

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

21

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

22

BEARING

3233020

$47.62

22

BEARING

3233020

$47.62

23

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

24

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

24

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

24

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

25

BEARING, NEEDLE

3233384

$31.75

26

BEARING, BALL

3235218

$59.52

27

BEARING, BALL

3234652

$15.87

27

BEARING, BALL

3234652

$15.87

28

BEARING, PLAIN

----

Unavailable

29

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

29

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

30

SPRING, COMPRESSION

3234089

$28.32

31

SPRING, TORSION, RETURN

3234276

$8.89

32

TUBE, SNORKEL

3234278

$101.17

33

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

34

SHAFT, IDLER, 29T

3235223

$128.24

35

SHAFT-REVERSE,27T(285878)

3235380

$246.89

36

SHAFT, FRONT OUTPUT

3235394

$133.56

37

SHAFT, INPUT

3235429

$178.08

38

SUBASM.,SHAFT [INCL. BEARING, RET.RING]

3235336

$446.49

39

COLLAR-SHIFT

3234073

$31.75

40

RAIL, SHIFT SHAFT

3234079

$28.32

41

FORK, SHIFT

3235455

$93.08

42

DOG, ENGAGEMENT

3234928

$87.13

43

SHIFT DOG, PARK

3235457

$145.70

44

GEAR, 46T, STAGE 2

3235381

$156.74

45

FORK, SHIFT

3235454

$89.03

45

FORK, SHIFT

3235454

$89.03

46

SPROCKET, 48T, 6-FACE

3235231

$80.94

47

GEAR, LOW, 67T

3235232

$125.46

48

ENGAGEMENT DOG

3235233

$129.51

49

GEAR, 53T

3235234

$99.74

50

GEAR, 46T, STAGE 3

3235236

$128.24

51

GEAR, 13T, FRONT OUTPUT

3235237

$156.74

52

DIFF, LOCKING

3235373

$493.99

53

RETAINER-FORK

3234934

$12.34

54

COVER-BEARING,CNTR DR.

3235241

$48.56

55

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

56

SEAL, TRIPLE LIP

3234113

$36.41

57

PLUG,EXPANSION,1 1/4

3234249

$13.49

57

PLUG,EXPANSION,1 1/4

3234249

$13.49

58

SUBASM., 39T, SIDE GEAR [INCL. PLUGS]

3235374

$223.24

59

BEARING, PLAIN

3234241

$15.87

59

BEARING, PLAIN

3234241

$15.87

59

BEARING, PLAIN

3234241

$15.87

60

SUBASM., 39T, SIDE GEAR [INCL.PLUG, BUSHING]

3235375

$223.24

61

SUBASM., DIFF COVER [INCL. PLUG, BUSHING]

3235376

$169.43

62

GEAR SUBASSEMBLY [INCL. BUSHING]

3234469

$72.84

63

SCREW

3235096

$9.70

64

SUBASM., GEAR, 53T [INCL. PINS, BUSHING, BEARING]

3235378

$484.11
