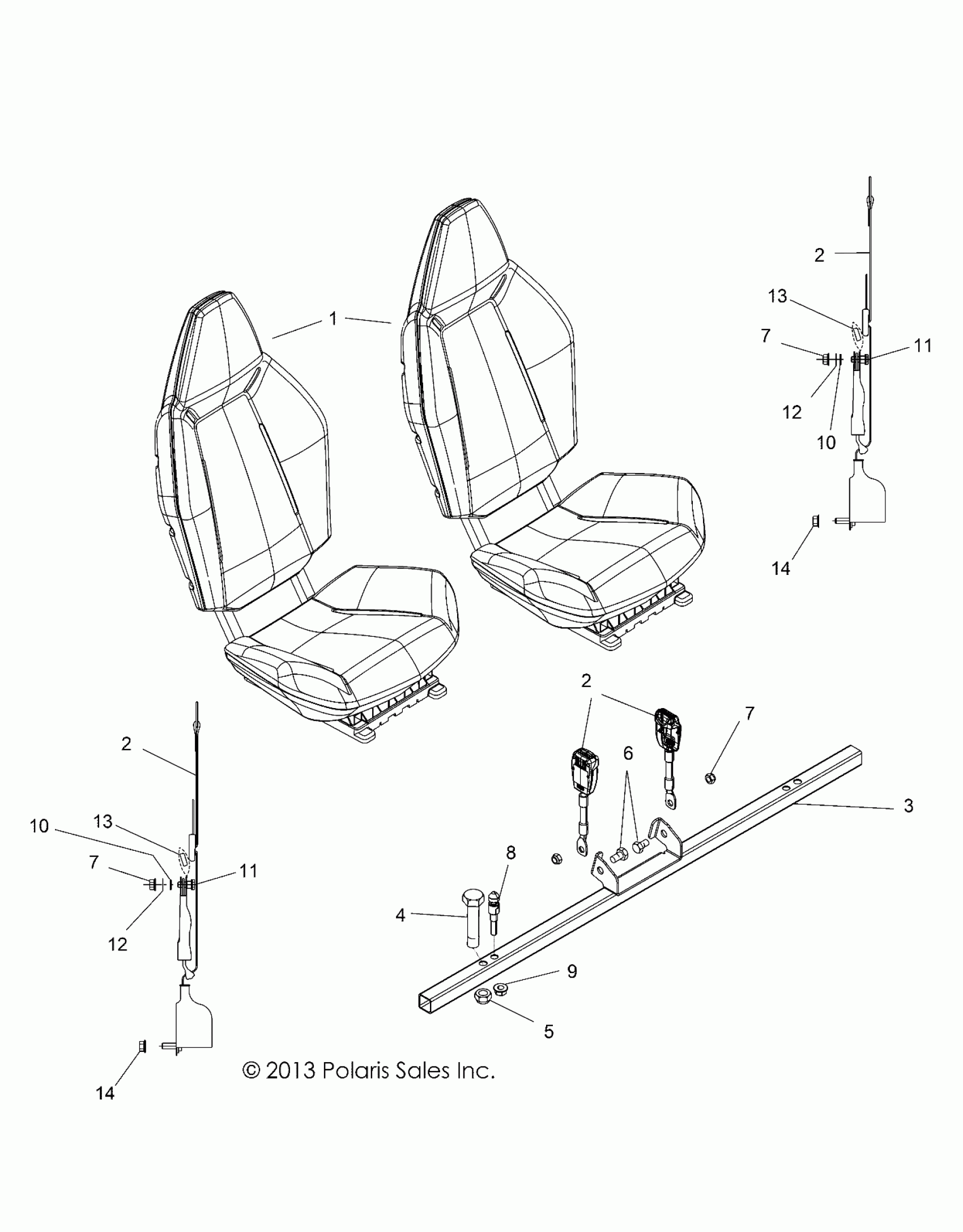

Polaris RZR 570 - Z14VH57AD/6EAI/6EAW BODY, SEAT MOUNTING and BELTS - Z14VH57AD/6EAI/6EAW (49RGRSEATMTG14RZR570) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

2

ASM., SEAT BELT, 3 POINT [INCL. 11-13]

2634887

$223.24

2

ASM., SEAT BELT, 3 POINT [INCL. 11-13]

2634887

$223.24

2

ASM., SEAT BELT, 3 POINT [INCL. 11-13]

2634887

$223.24

3

BASE, SEAT, REAR, MATTE BLACK

1017452-458

Unavailable

4

SCREW

7517442

$6.35

5

NUT, NYLON

7542525

$4.76

6

SCREW

7519072

$5.56

7

NUT

7547441

$4.76

7

NUT

7547441

$4.76

7

NUT

7547441

$4.76

8

PLUNGER-LATCH

7519252

$28.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

WASHER-SEATBELT,RUBBER

5813829

$1.19

10

WASHER-SEATBELT,RUBBER

5813829

$1.19

11

BOLT, SHOULDER

5137011

$5.56

11

BOLT, SHOULDER

5137011

$5.56

12

RETAINER

5253444

Unavailable

12

RETAINER

5253444

Unavailable

13

BOLT, CAP

5137010

Unavailable

13

BOLT, CAP

5137010

Unavailable

14

NUT, NYLOK

7540000

$3.97

14

NUT, NYLOK

7540000

$3.97
