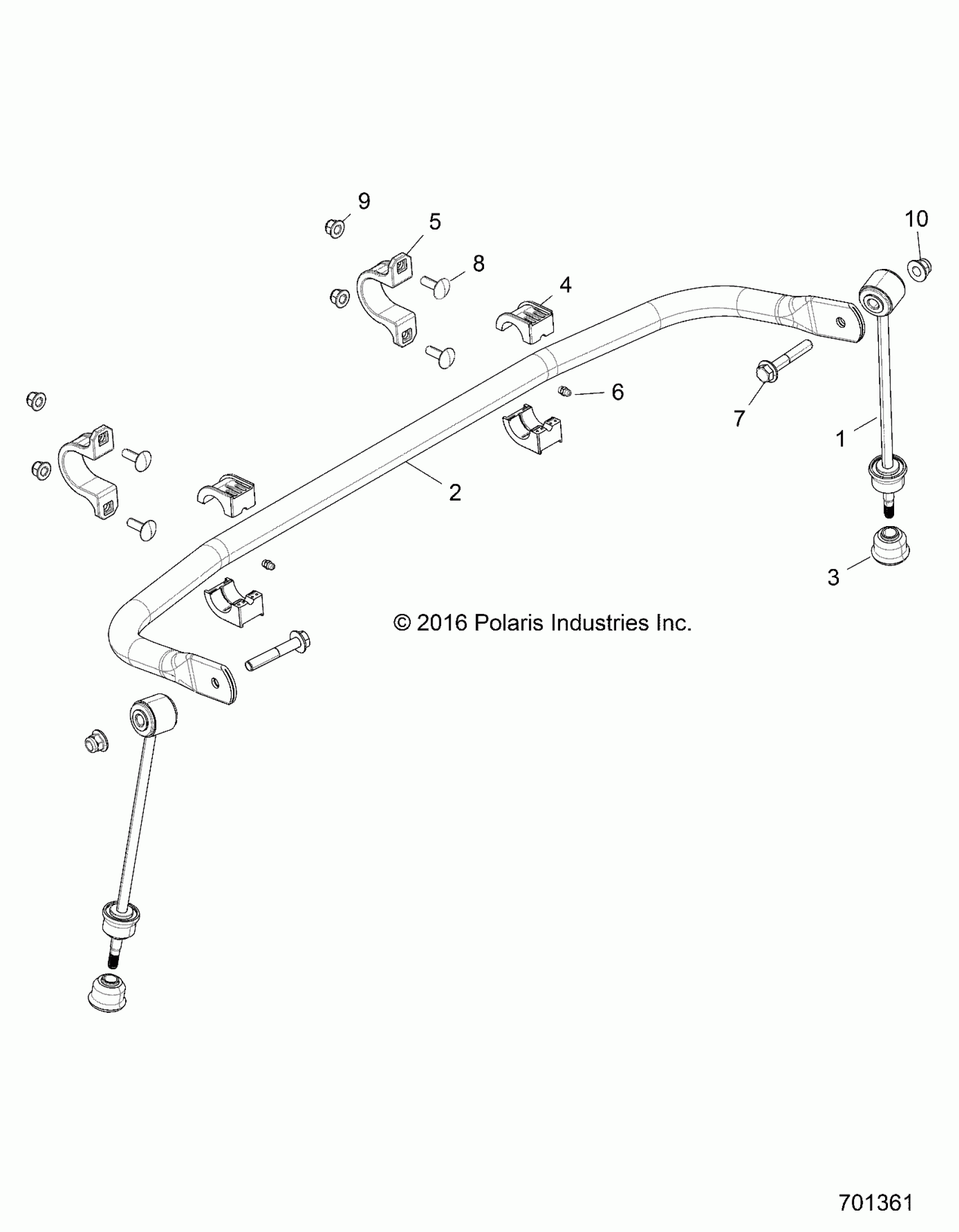

Polaris RZR 570 S (R05) - Z17VJE57AR SUSPENSION, STABILIZER BAR, REAR - Z17VJE57AR (701361) Diagram

#

Description

Price

1

ASM-LINKAGE,STABILIZER BAR

1543764

$89.03

2

TUBE-STABILIZER,REAR,BLK

5339661-458

$194.99

3

BUSHING-LNKG TORBAR,DURO80

5415470

$4.76

4

BUSHING-REAR BAR,28.5MM

5450606

$3.97

5

BRKT-CAP,SWAY BAR,1.25"

5632497

$40.46

6

FITTING-LUB,1/4-28-STR/1792-Y

7080433

$1.19

7

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.56

8

SCR-RHCAR-M8X1.25X25 10.9 ZB3

7520298

$7.59

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
