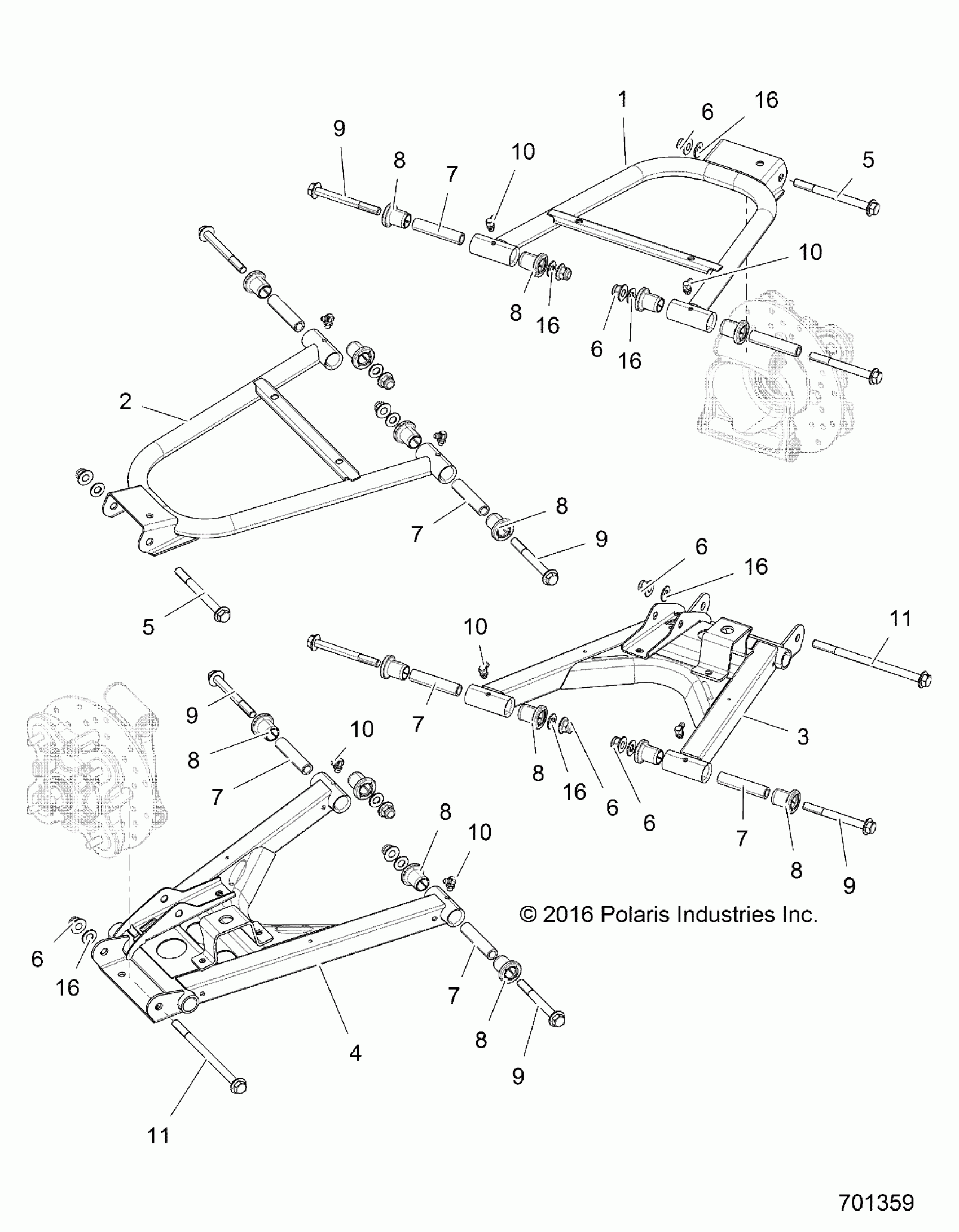

Polaris RZR 570 S (R05) - Z17VJE57AR SUSPENSION, REAR CONTROL ARMS - Z17VJE57AR (701359) Diagram

#

Description
Price

1

WELD-CNTRL ARM,REAR,UPR,LH,RED

1018465-293

$169.99

2

WELD-CNTRL ARM,REAR,UPR,RH,RED

1018466-293

$169.99

3

WELD-CNTRL ARM,REAR,LWR,LH,RED

1018460-293

Unavailable

3

WELD-CNTRL ARM,REAR,LWR,LH,RED

1018460-293

Unavailable

4

WELD-CNTRL ARM,REAR,LWR,RH,RED

1018461-293

Unavailable

5

SCREW

7519365

$13.49

5

SCREW

7519365

$13.49

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

7

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

9

SCREW

7519043

$9.52

9

SCREW

7519043

$9.52

9

SCREW

7519043

$9.52

9

SCREW

7519043

$9.52

9

SCREW

7519043

$9.52

10

FITTING, ZERK

7080510

$5.56

10

FITTING, ZERK

7080510

$5.56

10

FITTING, ZERK

7080510

$5.56

10

FITTING, ZERK

7080510

$5.56

10

FITTING, ZERK

7080510

$5.56

11

SCREW

7519042

$9.52

11

SCREW

7519042

$9.52

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

16

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
