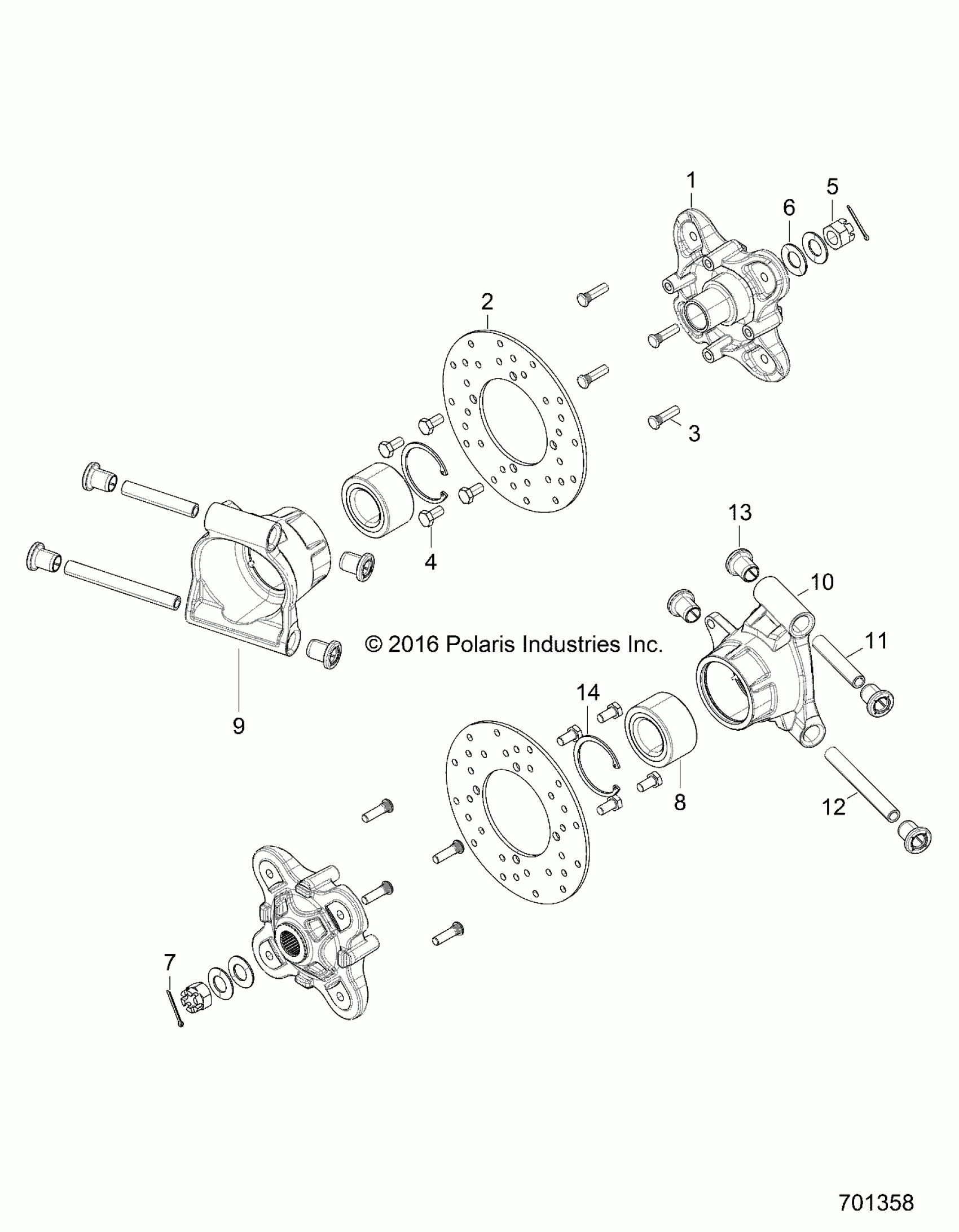

Polaris RZR 570 S (R05) - Z17VJE57AR SUSPENSION, REAR CARRIER - Z17VJE57AR (701358) Diagram

HUB-WHEEL,REAR,MACH

5139163

Unavailable

DISC-BRAKE,REAR,8.625X.188

5248250

$75.99

STUD-3/8-24X1.38,PRESS FIT-Z

7518378

$1.59

SCR-M10X1.5X20,8.8 ZY3

7519343

$4.79

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

BEARING-WHEEL,40X74X40MM

3514635

$39.99

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.99

CARRIER-BEARING,WHEEL,LH

5138501

$251.73

CARRIER-BEARING,WHEEL,RH

5138502

$251.73

SHAFT-PIVOT,89.71MM,15.88OD

5138794

$5.59

SHAFT-PIVOT,139.1MM,15.88OD

5138796

$11.99

BUSHING-STANDARD,ORV

5439874

$2.39

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

RING-RETAINING,2.875,INTERNAL

7710440

$10.39
