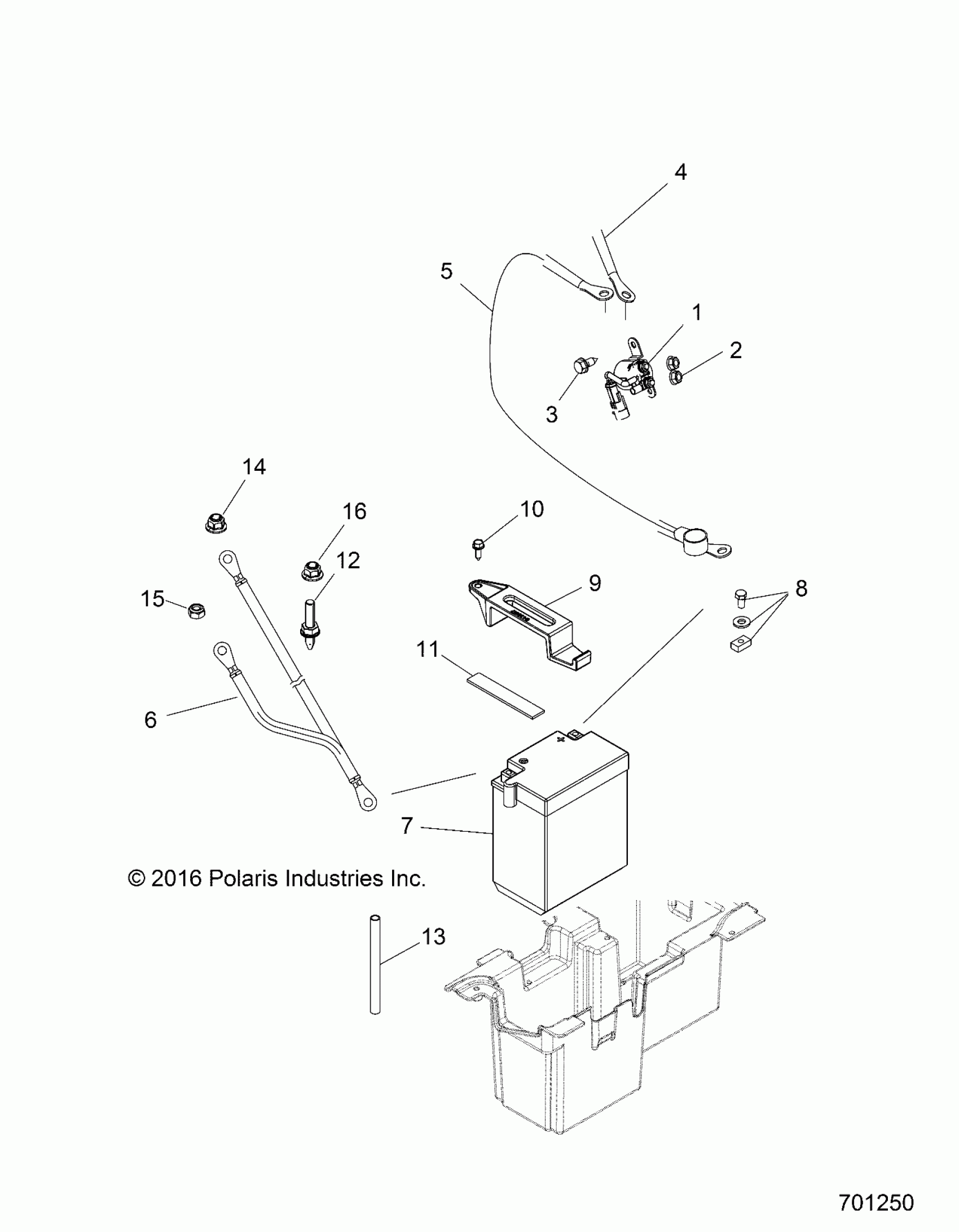

Polaris RZR 570 S (R05) - Z17VJE57AR ELECTRICAL, BATTERY - Z17VJE57AR (701250) Diagram

#

Description
Price

1

SOLENOID, STARTER [INCL 2]

4012001

Unavailable

2

NUT, FLANGED

7547270

$3.99

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

4

Cable, Solenoid to Starter

4011498

$79.19

5

CABLE-BATT TO SOLENOID/TERMINA

4011497

$43.99

6

CABLE, GROUND, ENGINE/BATTERY/CHASSIS

4014470

$47.99

7

BATTERY

4010630

$147.60

8

BATTERY BOLT KIT

2201357

$11.19

9

STRAP, BATTERY HOLDDOWN

5258648

$7.19

10

Screw

7512098

$1.59

11

PAD, RACK MOUNT

5810455

$3.19

12

STUD

7519333

$7.99

13

TUBE-BATTERY VENT,305MM

5435030

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

16

NUT-M6 FLANGE,NYLOC

7547274

$1.49
