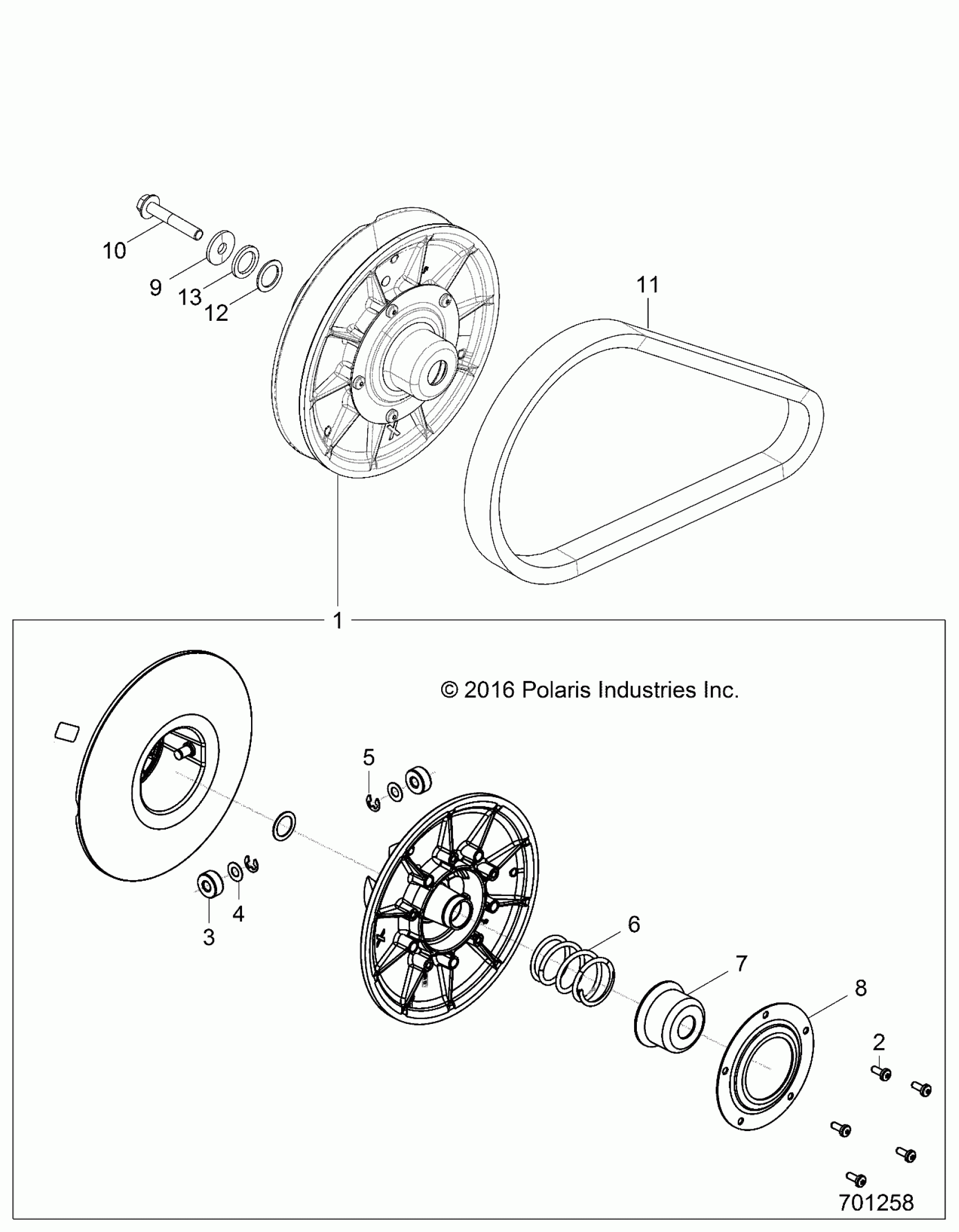

Polaris RZR 570 S (R05) - Z17VJE57AR DRIVE TRAIN, SECONDARY CLUTCH - Z17VJE57AR (701258) Diagram

#

Description

Price

1

ASM., DRIVEN CLUTCH [INCL. 2-9]

1323070

$347.99

2

SCR-TORX,M6X1.0X16

7519735

$9.59

3

ROLLER-CLUTCH,.955 ODX.450

5439831

$35.99

4

WASHER, THRUST

7556226

$5.65

5

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

6

SPRING-DRIVEN,104-173

7044015

$47.99

7

CUP-SPRING,BOSS LW UTILITY

5256403

$39.99

8

PLATE, RETAINER

5256404

$35.99

9

WASHER-.406X1.25X.125 BELLE-Y

7556130

$6.39

10

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

11

BELT-DRIVE

3211206

$79.99

12

WASHER-30MM ODX 21MM ID X 1.5

7556483

$3.99

13

WSHR-THRUST,1.189X0.838X0.12

7556745

$5.59
