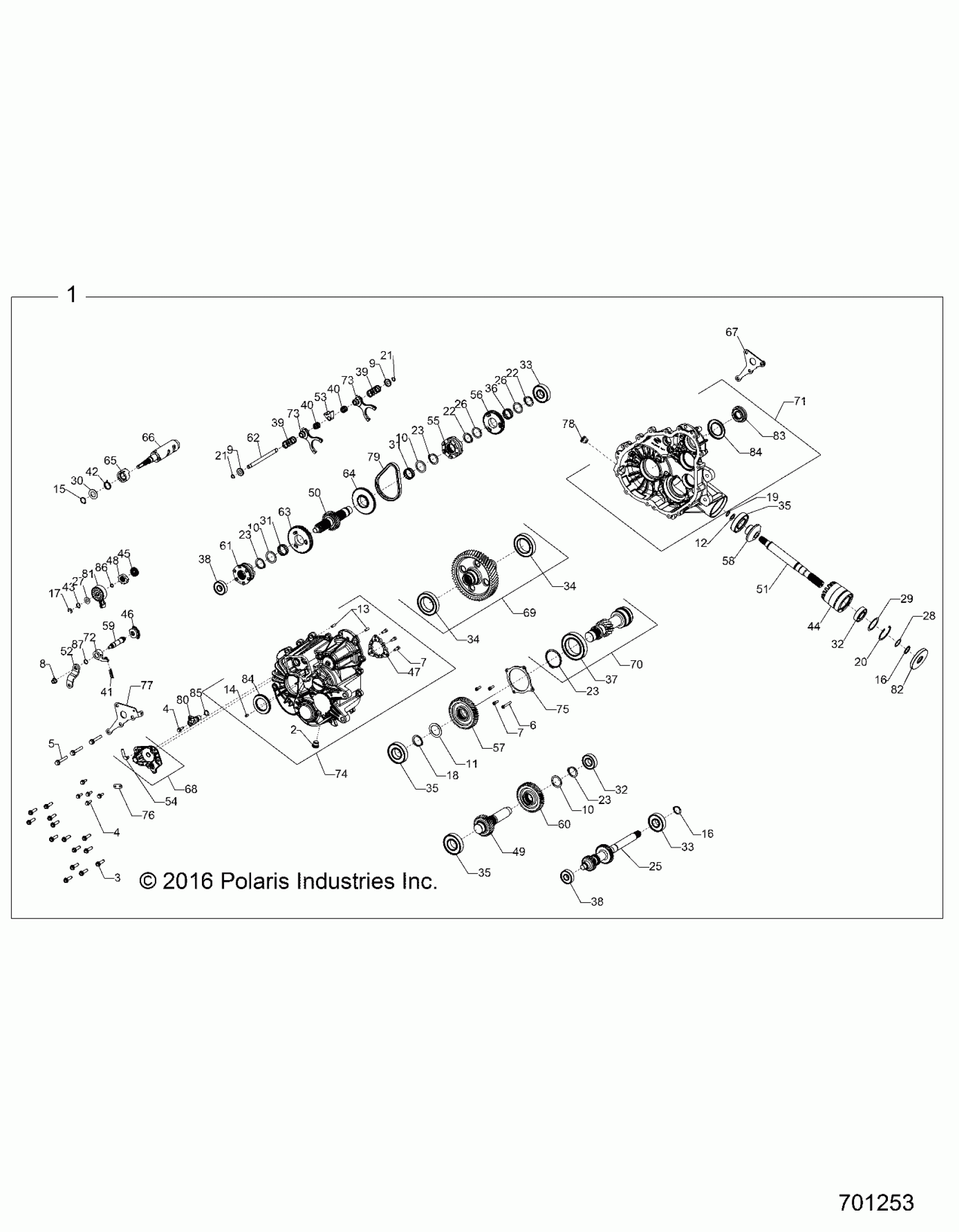

Polaris RZR 570 S (R05) - Z17VJE57AR DRIVE TRAIN, MAIN GEARCASE - Z17VJE57AR (701253) Diagram

#

Description
Price

1

ASM-GEARCASE [INCL. ALL]

1333664

$3,299.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.14

5

SCREW HEX FLANGE M8 X 50

3235207

$10.32

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

3235208

$11.11

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.97

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

10

WASHER 32.3 X 42 X 1.5

3235211

$10.32

11

WASHER 35.6 X 50 X 1.5

3235212

$13.49

12

WASHER 17.3 X 25 X 1.5

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING SLOTTED 6 X 12

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

17

RING SNAP

3233834

$10.32

18

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.46

19

RING, RETAINING EXTERNAL SHR-66

3234318

$3.17

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING, RETAINING

3234205

$11.11

22

RING, RETAINING

3234205

$11.11

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

25

INPUT,SHAFT BOSS L/W UTILITY

3235710

$244.99

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

28

SHIM 1.18 OD X 0.995 ID

3234272

$36.41

29

SHIM 2.04 OD X 1.63 ID

3234273

$13.75

30

SPACER 19.4 X 34 X 2

3235883

$28.56

31

BEARING, NEEDLE

3233014

$43.65

31

BEARING, NEEDLE

3233014

$43.65

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

33

BEARING

3233020

$47.62

33

BEARING

3233020

$47.62

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING, NEEDLE CAGE ASSY

3233384

$31.75

37

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.52

38

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

38

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.87

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

40

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$28.32

41

SPRING, COMPRESSION DETENT

3234578

$13.75

42

SPRING TORSION

3235885

$20.22

43

SPRING, WASHER

3235327

$9.52

44

TUBE, SNORKEL MACH

3234278

$101.17

45

GEAR, SECTOR 16T

3233839

$36.41

46

GEAR-SECTOR,31T

3233832

$36.41

47

PLATE, PARK 12-FACE

3235456

$40.46

48

STAR, DETENT

3235982

$36.41

49

SHAFT, IDLER 29T

3235223

$128.24

50

SHAFT-REVERSE,27T(285878)

3235380

$246.89

51

SHAFT, FRONT OUTPUT

3235394

$133.56

52

BELLCRANK TXC

3235386

$32.37

53

COLLAR-SHIFT

3234073

$31.75

54

TUBE, VENT 90 -1/4" HOSE

3234230

$10.51

55

ENGAGEMENT DOG, 6-FACE

3235233

$129.51

56

GEAR, 53T

3235234

$99.74

57

GEAR, 46T STAGE 3

3235236

$128.24

58

GEAR, 13T SNORKEL

3235237

$156.74

59

SHAFT-SHIFT(352973)

3235238

$42.74

60

GEAR, 46T STAGE 2

3235381

$156.74

61

SHIFT DOG, PARK

3235457

$145.70

62

RAIL, SHIFT SHAFT

3235542

$28.32

63

GEAR, LOW 61T

3235561

$99.74

64

SPROCKET 48T 6-FACE

3235755

$80.94

65

PARK CAM

3235983

$183.95

66

DRUM, SHIFT MACH

3235984

$279.27

67

WELDMENT REAR MOUNT BRACKET

3235239

$40.46

68

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$135.54

69

SUBASSEMBLY, 53T GEAR, [INCLUDES BEARINGS]

3235335

$408.49

70

SUBASM.,SHAFT [INCLUDES ALL HARDWARE]

3235336

$446.49

71

SUBASSEMBLY LH CASE [INCLUDES ALL HARDWARE]

3235382

$569.99

72

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$36.41

73

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

73

SUBASSEMBLY, SHIFT FORK

3235920

$72.84

74

SUBASSEMBLY RH COVER [INCLUDES ALL HARDWARE]

3235995

$517.74

75

COVER-BEARING,CNTR DR.

3235241

$48.56

76

BRACKET WIRE HARNESS

3235350

$8.89

77

BRACKET, REAR MOUNT

3235351

$48.56

78

PLUG, M18 X 1.5

3234755

$27.78

79

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

80

SENSOR-SPEED,TRANS

4013908

$109.27

81

SWITCH, ROTARY 2 PIN RESISTIVE

7662299

$113.32

83

SEAL, DUAL LIP, 25 X 47 VITON

3234851

$42.74

84

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37

84

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37

85

O-RING

3234302

$7.27

86

O-RING, -12 VITON

3233836

$6.87

87

O-RING, -14 VITON

3233828

$6.87
