BRAKES, BRAKE LINES and MASTER CYLINDER - Z17VJE57AR (701344)

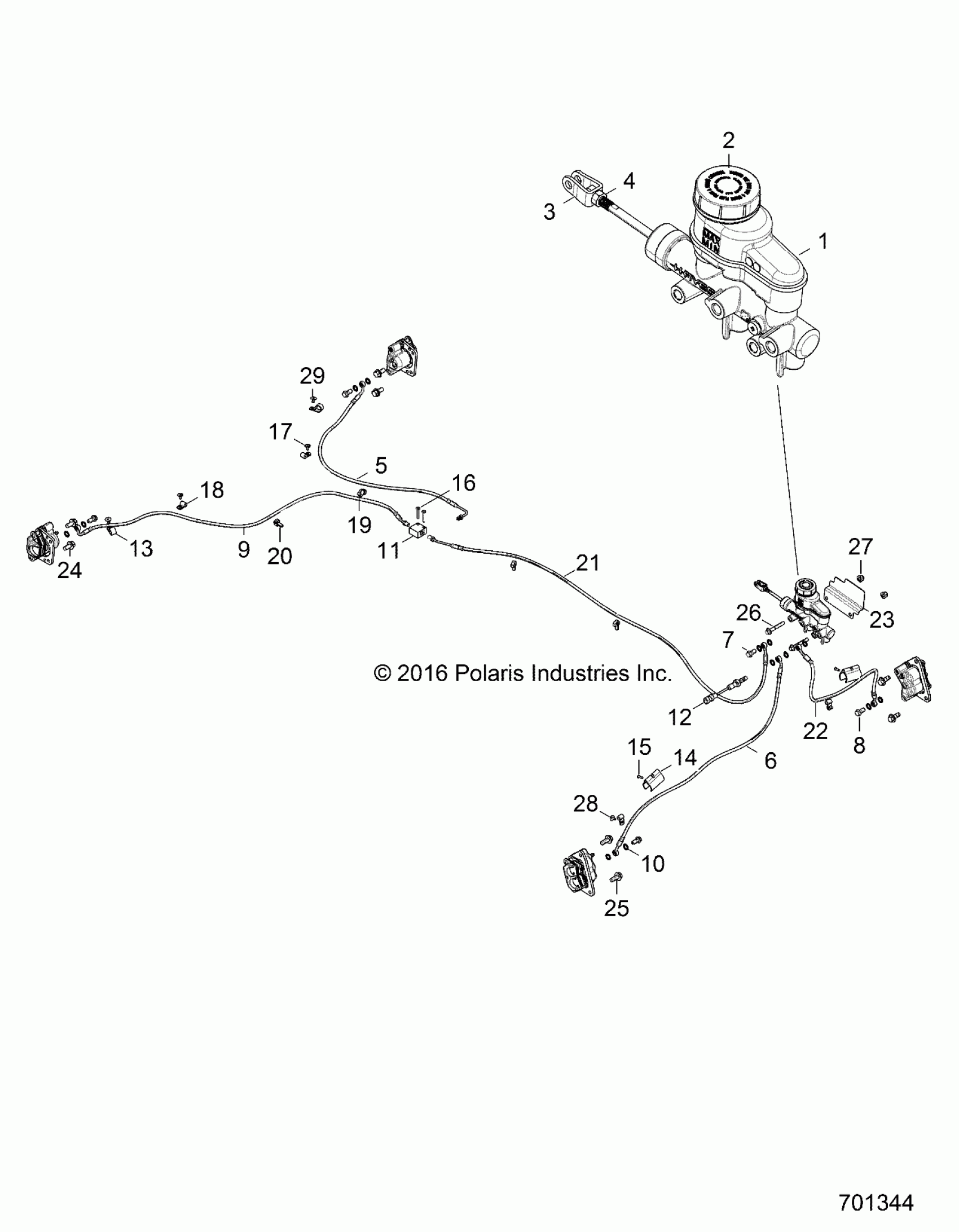

Polaris RZR 570 S (R05) - Z17VJE57AR BRAKES, BRAKE LINES and MASTER CYLINDER - Z17VJE57AR (701344) Diagram
#
Description
Price
1
ASM-TANDEM MASTER CYL,HB II [INCL 2-4]
1911982
$131.99
2
KIT, CAP, MASTER CYLINDER TANDEM
2203455
$47.99
3
KIT-CLEVIS,M/C TANDEM,HB 3/4"
2203456
$31.99
4
KIT-NUTS,CLEVIS,M/C TANDEM
2203457
$31.99
5
LINE-BRK,LR,39.8,90F,70B,280�J
1912721
$79.99
6
LINE-BRK,FR,38,45B,90SB,100,JF
1912790
$75.99
7
BOLT-BANJO, 10MM X 1.25-6G
1910958
$7.99
8
BOLT, BANJO
1910499
$5.59
9
LINE-BRAKE,RR,LT,INT'L
1911449
$91.99
10
SEAL
5413212
$4.79
11
FITTING-TEE,BRAKE
7052293
$59.99
12
SWITCH-BRK,M10X1.25,DBL,SEALED
4014225
$87.99
13
CLAMP-HOSE,.625 DIA VNL COATED
7080880
$5.59
14
RETAINER, BRAKE LINE
5439192
$1.59
15
Rivet
7621323
$1.49
16
SCREW
7512025
$4.79
17
Screw
7512084
$1.49
18
CLAMP-WIRE/TUBE .25 DIA
7081246
$1.49
19
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
20
Clip
7670102
Unavailable
21
LINE, BRAKE, MASTER TO REAR
1911919
$79.99
22
LINE-BRK,FL,27.5,20B,90SB,45JF
1912789
$59.99
23
SHIELD-MASTER CYL
5251507
$26.39
24
BOLT, FLANGED
7518558
$3.99
25
BOLT, FLANGED
7518760
$9.59
26
SCR-M8X1.25X55,HX/FL-Y
7517281
$8.99
27
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
28
SCR-10-24X1/2 PH/TX/TRIRD/SEMB
7518176
$4.79
29
RIVET3/16(.063-.250)ST-ST-LF-B
7621472
$1.49
