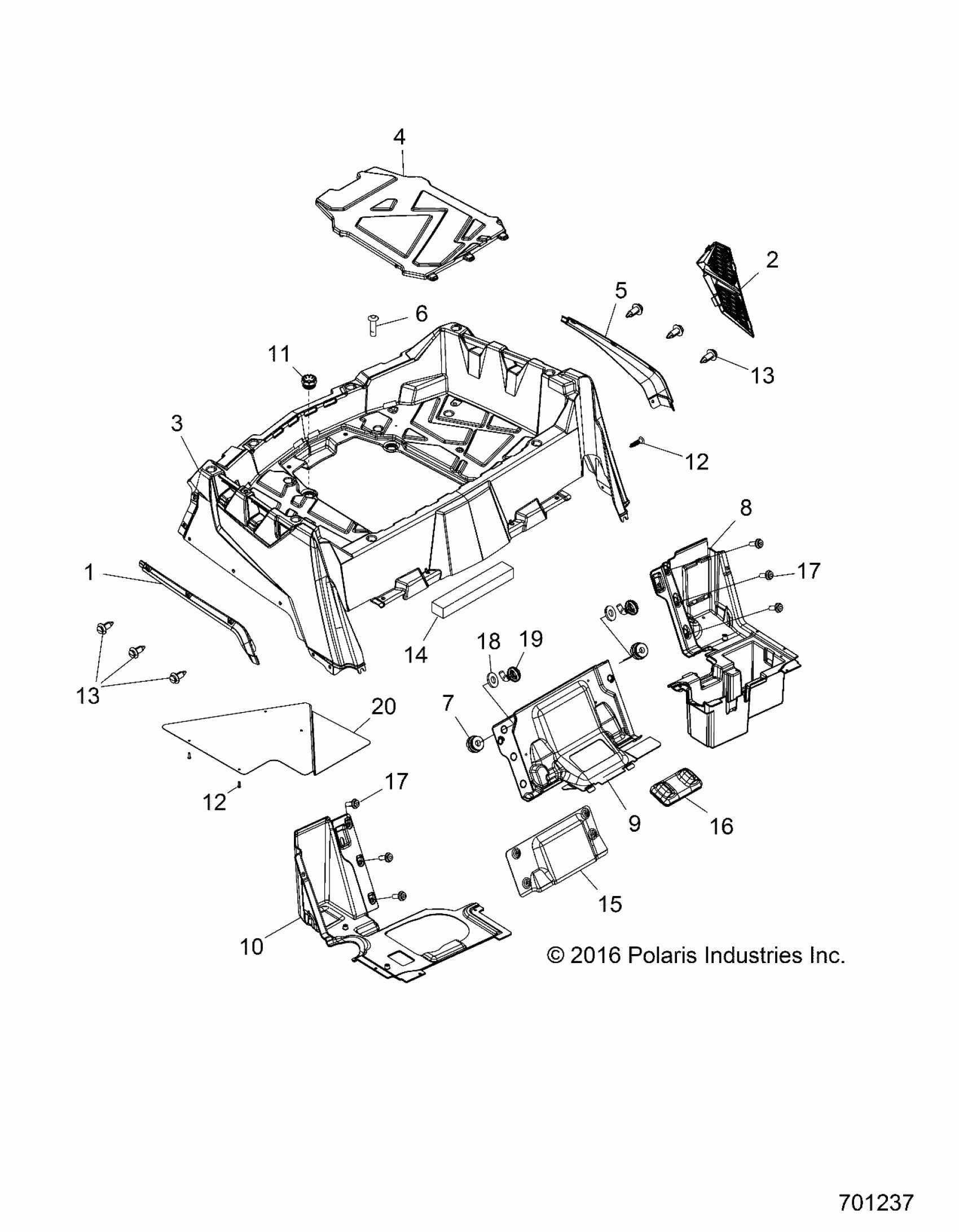

Polaris RZR 570 S (R05) - Z17VJE57AR BODY, REAR RACK and FENDERS - Z17VJE57AR (701237) Diagram

#

Description
Price

1

FLAIR-REAR FENDER,RH,BLK

5453035-070

$114.99

2

PANEL, FILTER, FENDER, LH, BLACK

5438941-070

$44.51

3

ASM-RACK,REAR,BLK [INCL. DECAL]

2636406-070

$319.03

4

BOX, MAINT PANEL, REMOVABLE

5438906-070

$59.99

5

FLAIR-REAR FENDER,LH,BLK

5453034-070

$114.99

6

SCREW

7517685

Unavailable

7

GROMMET-LATCH

5413428

$3.17

8

PANEL, DIVIDER, REAR, LH, BLACK

5438336-070

$104.99

9

PANEL, DIVIDER, REAR, BLACK

5439327-070

$79.98

10

PANEL, DIVIDER, REAR, RH, BLACK

5438957-070

$56.65

11

GROMMET

5412507

$6.35

12

SCREW

7512026

$1.19

12

SCREW

7512026

$1.19

13

Rivet

7661855

$1.19

13

Rivet

7661855

$1.19

14

SEAL, PANEL

5813751

$13.75

15

SHIELD-FOIL,FRT PANEL

5814477

$40.46

16

COVER, SEAT BELT BUCKLE, REAR

5813553

$32.37

17

Screw

7512084

$1.19

17

Screw

7512084

$1.19

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.56

20

SHIELD-HEAT

5263157

$44.51
