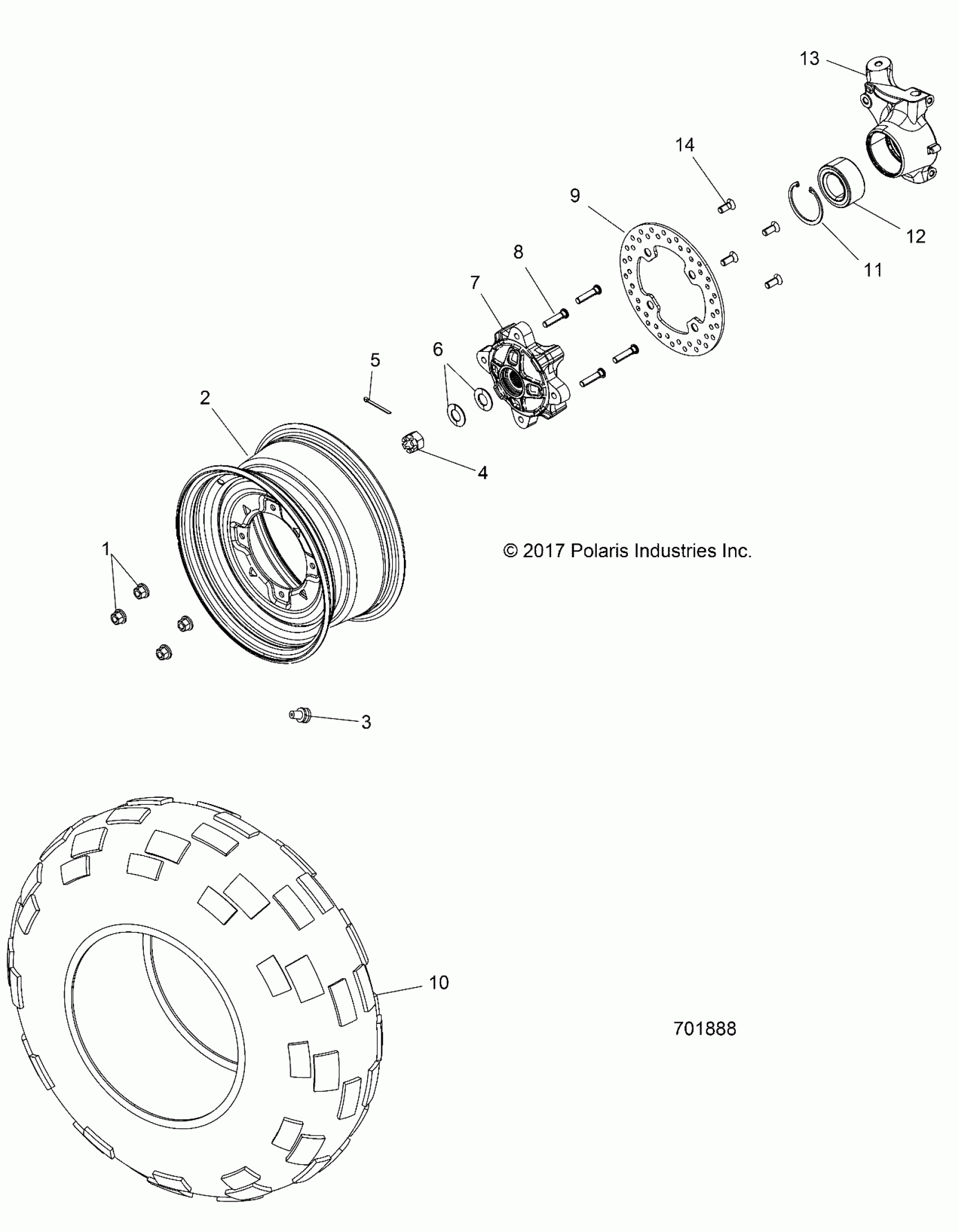

Polaris RZR 570 (R06) - Z18VHA57B2 WHEELS, FRONT - Z18VHA57B2 (701888) Diagram

#

Description
Price

1

NUT, FLANGED

7547237

$2.38

2

RIM, FRONT, BLACK

1520263-067

$90.87

3

VALVE-RIM

1525017

$6.46

4

NUT, CASTLE

7547337

$1.98

5

PIN, COTTER

7661404

$4.76

6

WASHER, CONE

7555796

$7.94

7

HUB, WHEEL, FRONT, BLACK

5137659-067

$109.27

8

STUD

7517871

$1.59

9

DISC, BRAKE, FRONT

5254999

$68.79

10

TIRE, FRONT, 25X8-12

5414817

$94.49

11

RING-RETAINING,2.835,INTERNAL

7710780

$9.52

12

BEARING, BALL, SEALED

3514699

$39.68

13

CARRIER, BEARING, LH

5135442

$125.46

13

CARRIER, BEARING, RH

5135443

$111.11

14

SCREW

7518978

$3.97
