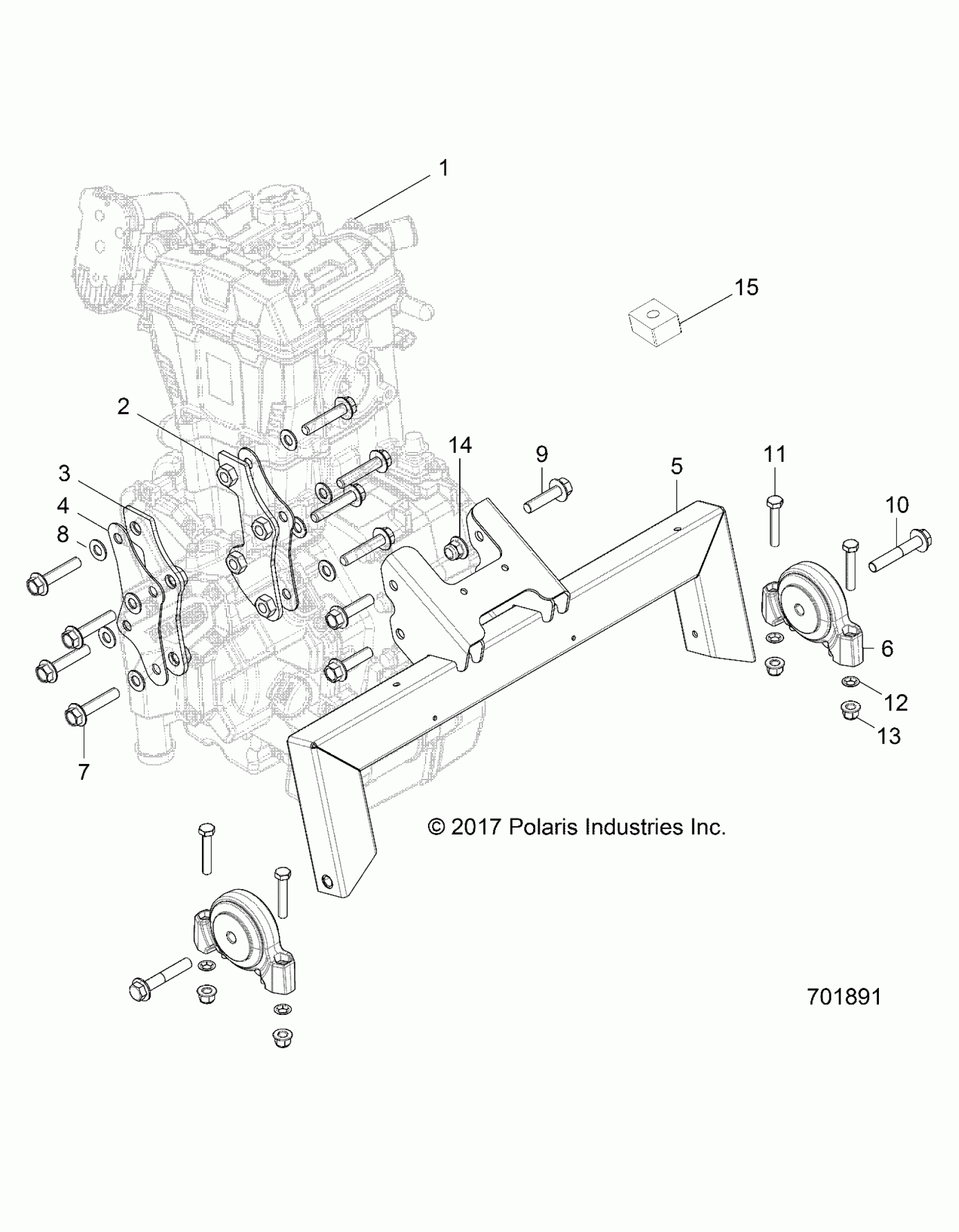

Polaris RZR 570 (R06) - Z18VHA57B2 ENGINE, MOUNTING & LONG BLOCK - Z18VHA57B2 (701891) Diagram

#

Description
Price

1

K-LONG BLOCK 570

2207381

$4,162.39

2

TRANSMISSION, INNER, LEFT

1018420

Unavailable

3

TRANSMISSION, INNER, RIGHT

1018421

Unavailable

4

BRKT-COUPLER,TRANS,OUTER

5255321

$10.39

5

WELD-MNT,ENGINE,BLK

1023536-329

Unavailable

6

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

7

SCREW

7518971

$6.39

8

WASHER

7556153

$1.99

9

SCREW

7519332

$5.59

10

BOLT

7518826

$4.79

11

SCREW

7519097

$1.59

12

Nut, Pal

7547030

$4.79

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

BRKT-MNT,ENG.ZINC,YELLOW

5263675

Unavailable
