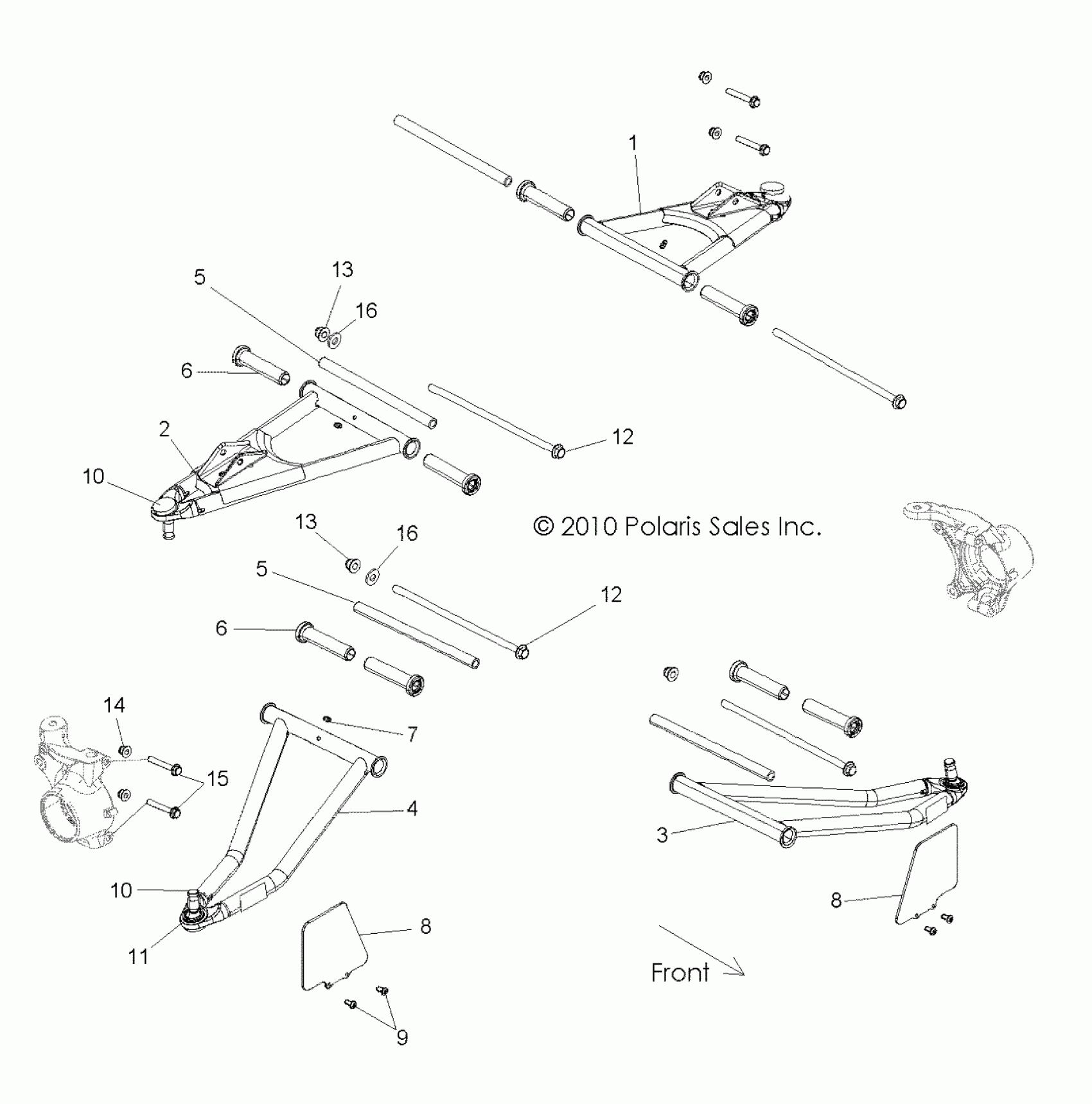

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU SUSPENSION, FRONT CONTROL ARMS - Z17VHA57A2/E57AU (49RGRSUSPFRT11RZR) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, FRONT, MATTE BLACK, LH

1018203-458

$127.99

2

ARM, CONTROL, UPPER, FRONT, MATTE BLACK, RH

1018204-458

$127.99

3

ARM, CONTROL, LOWER, FRONT, MATTE BLACK, LH

1018205-458

$127.99

4

ARM, CONTROL, LOWER, FRONT, MATTE BLACK, RH

1018206-458

$127.99

5

SHAFT, PIVOT

5138791

$27.99

5

SHAFT, PIVOT

5138791

$27.99

6

BUSHING, A-ARM, LONG

5439732

Unavailable

6

BUSHING, A-ARM, LONG

5439732

Unavailable

7

FITTING, ZERK

7080510

$5.59

8

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

8

SHIELD, CV, FRONT, BLACK

5438641-070

$3.19

9

Screw

7512084

$1.49

10

BALL, JOINT

7061220

$75.99

10

BALL, JOINT

7061220

$75.99

11

RING, RETAINING

7710533

$2.39

12

BOLT, FLANGED

7519087

$13.59

12

BOLT, FLANGED

7519087

$13.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

NUT, NYLOK

7547405

$1.49

15

SCREW, FLANGE

7516733

$6.39

16

WASHER

7556153

$1.99

16

WASHER

7556153

$1.99
