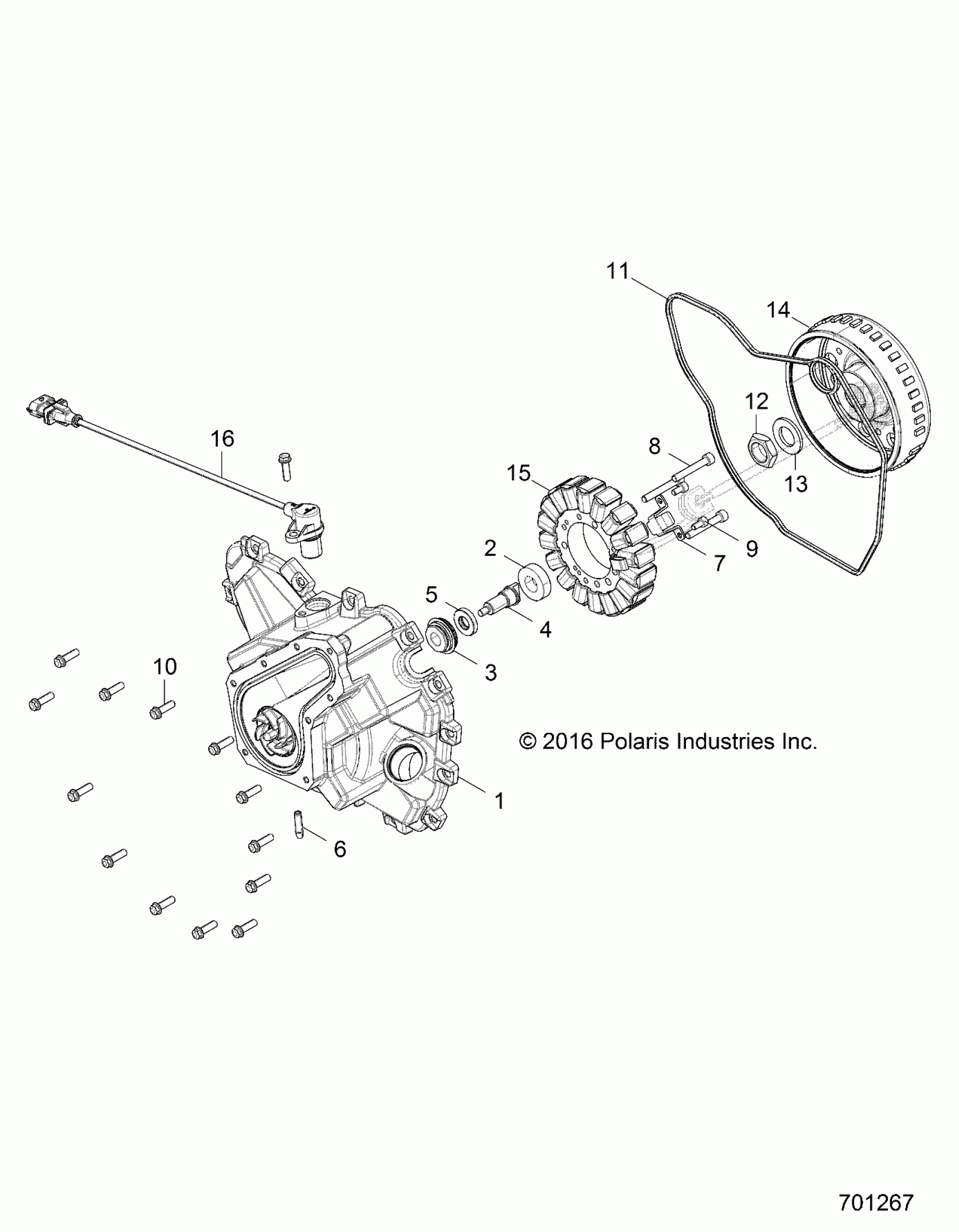

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU ENGINE, STATOR COVER and FLYWHEEL - Z17VHA57A2/E57AU (701267) Diagram

Description

Price

KIT, IGNITION COVER [INCL. 2-6, IMPELLER]

2204736

$191.99

BEARING-SHAFT,WATERPUMP [FROM 1/15/2023]

3515828

$10.39

BEARING, SHAFT, WATERPUMP [TO 1/15/2023]

3514696

$10.32

SEAL-WATERPUMP SHAFT,WATER

3610173

Unavailable

SHAFT-PUMP DRIVE,G-1CYL

5138035

$39.99

SEAL, TYPE S

5411197

$24.27

FITTING-6MM,BRASS

7052524

$5.59

GUIDE-STATOR LEAD

5254832

$7.19

SCREW

7510005

$5.70

SCREW

7517847

$3.19

SCREW

7518576

$3.19

GASKET-STATOR COVER

5414329

$23.99

NUT-HEX,M18X1.5 4 JAM,RH

7547488

$7.19

WASHER

7556878

$3.99

FLYWHEEL

4013969

$503.09

STATOR

4015340

$263.99

SENSOR, CRANK POSITION

2411719

$101.17
