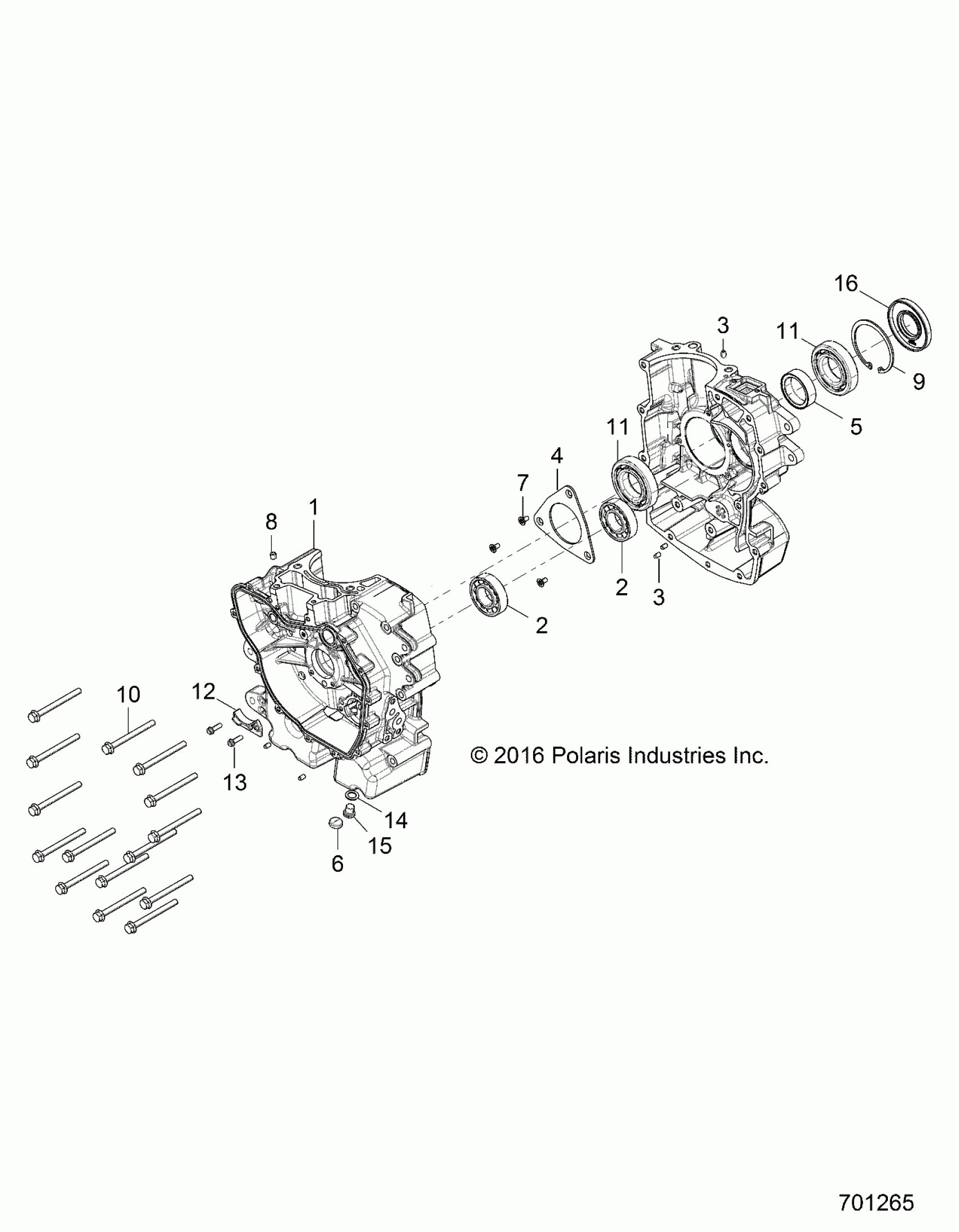

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU ENGINE, CRANKCASE - Z17VHA57A2/E57AU (701265) Diagram

#

Description
Price

1

K-CRANKCASE 570 [INCL. 1-13]

2206362

$1,349.99

2

BEARING-BALL,30X62X16 [FROM 1/15/2023]

3515827

$16.67

2

BEARING, BALL [TO 1/15/2023]

3514426

$19.84

2

BEARING-BALL,30X62X16 [FROM 1/15/2023]

3515827

$16.67

2

BEARING, BALL [TO 1/15/2023]

3514426

$19.84

3

PIN-DOWEL,M6X10

5136879

$2.38

3

PIN-DOWEL,M6X10

5136879

$2.38

4

PLATE-BEARING RETAINER

5256915

$24.27

5

SPACER, BEARING

5137838

$49.99

6

PLUG-EXPANSION,19MM

7051530

$8.08

7

SCREW

7517598

$11.33

8

DWL-HOL,M8X8

7661977

$8.08

9

RING-SNAP,80X2.5

7710660

$4.03

10

SCREW

7520104

$5.56

11

BEARING-BALL 40X80X18 DG NCAGE [FROM 1/15/2023]

3515831

$32.54

11

BEARING, BALL [TO 1/15/2023]

3514389

$32.54

11

BEARING-BALL 40X80X18 DG NCAGE [FROM 1/15/2023]

3515831

$32.54

11

BEARING, BALL [TO 1/15/2023]

3514389

$32.54

12

GUIDE-CAM DRIVE,LOWER

3022711

$10.51

13

SCR-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

14

WASHER, COPPER

5812232

$1.59

15

PLUG, SOCKET

7052306

$15.37

16

SEAL-CRANKSHAFT

3610171

$48.56
