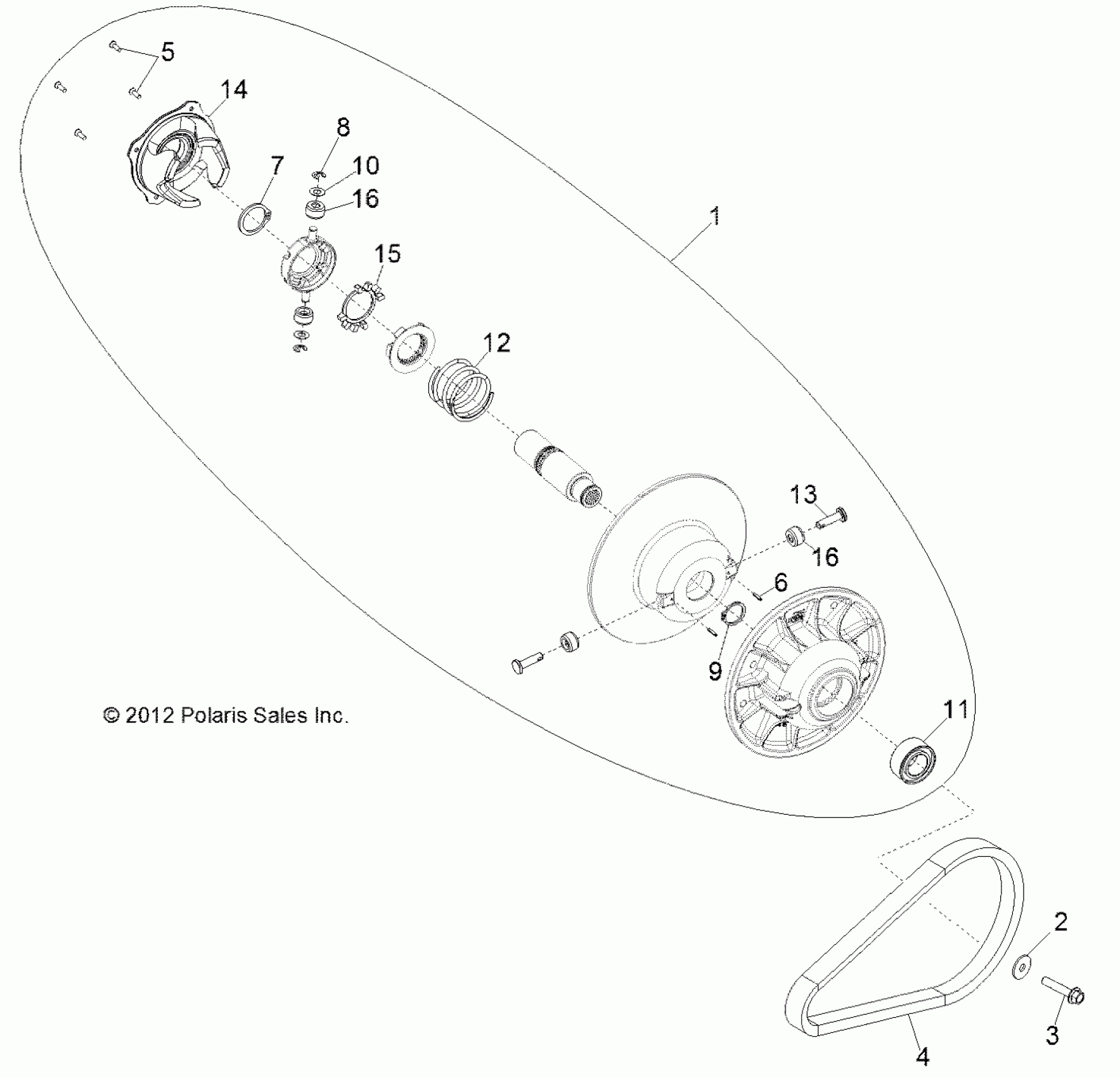

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU DRIVE TRAIN, SECONDARY CLUTCH - Z17VHE57AU (49RGRCLUTCHDVN1323051) Diagram

#

Description
Price

1

ASM-DRIVEN 30MM,BTD,BASIC [INCL. 2,7-9]

1323403

$495.29

2

WASHER, FLAT

7555846

$5.59

3

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

4

BELT-DRIVE

3211206

$79.99

5

SCREW-HELIX, PATCH

3234754

$5.59

6

PIN,SPRING SLOTTED .125X.625

3234202

$3.99

7

RING, RETAINING, EXTERNAL

7710522

$13.59

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

RING, RETAINING

3234205

$11.19

10

WASHER, THRUST

7556226

$5.65

11

BEARING, BALL

3234203

$23.99

12

SPG-104-173,COMP 2.00 OD

3234452

$87.99

13

PIN, ROLLER

3234201

$15.99

14

ASM-CAM

3235961

Unavailable

15

RETAINER, SPRING, INNER

7710564

Unavailable

16

ROLLER, CLUTCH

5434534

$48.56

16

ROLLER, CLUTCH

5434534

$48.56
