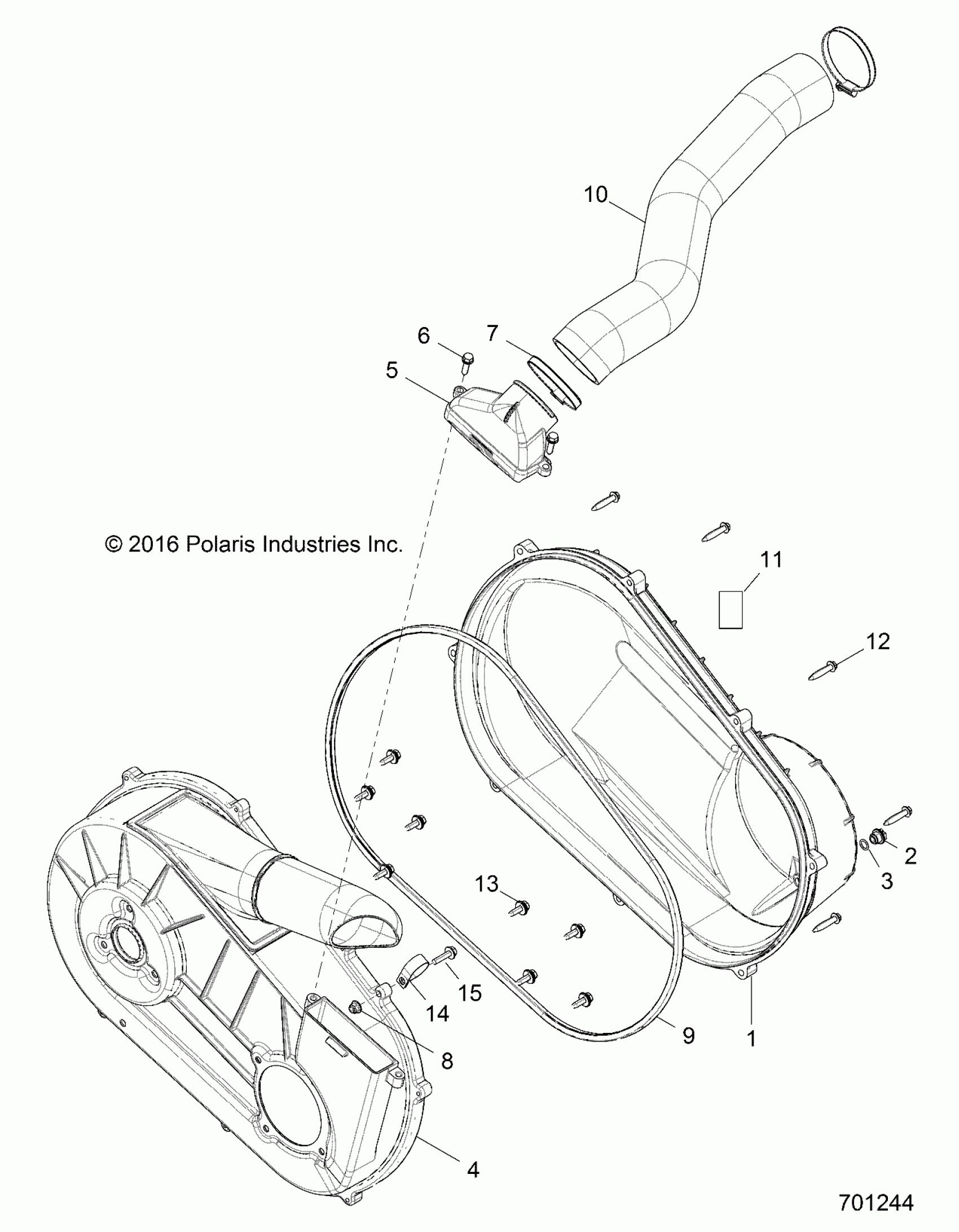

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU DRIVE TRAIN, CLUTCH COVER and DUCTING - Z17VHA57A2/E57AU (701244) Diagram

#

Description

Price

1

ASM., COVER, CLUTCH, OUTER [INCL. 2,3]

2634179

$175.99

2

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

3

O RING-.364X.504X.07

5410542

Unavailable

4

ASM., COVER, CLUTCH, INNER [INCL. 5,6]

2635045

$213.00

5

DUCT-CLUTCH,AIR IN

5438891

$27.99

6

Screw

7512098

$1.59

7

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

SEAL, OUTER, CLUTCH COVER

5521831

Unavailable

10

HOSE, INTAKE, CLUTCH

5414156

$67.99

11

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

12

SCR-HXFL-M6X35 ZOD HILO [A2]

7519330

$3.99

13

ASM., BOLT/WASHER

7519278

$4.79

14

CLAMP-RUBBER COATED, .562

7080573

$7.19

15

BOLT

7518576

$3.19
