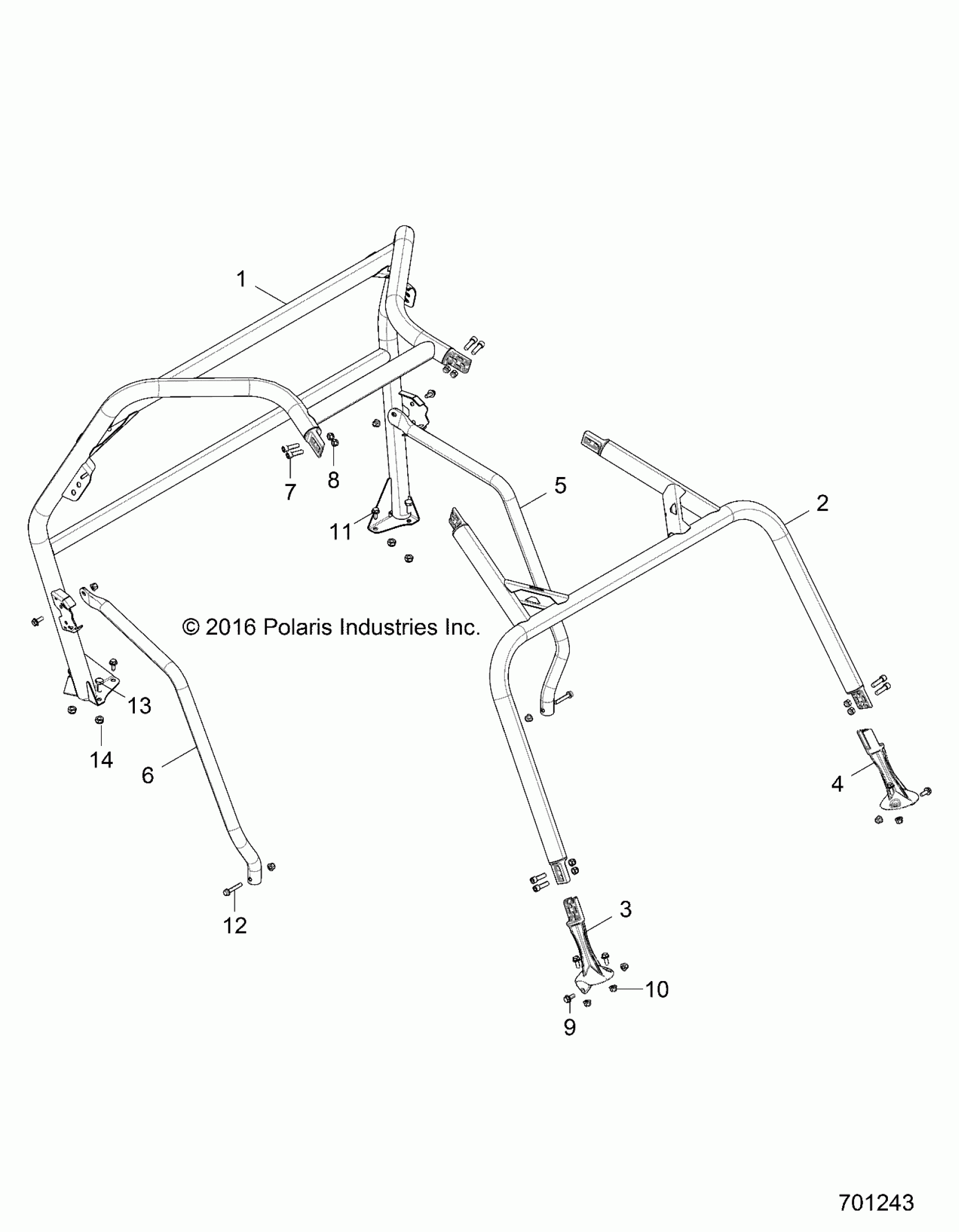

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU CHASSIS, CAB FRAME - Z17VHA57A2/E57AU (701243) Diagram

#

Description

Price

1

FRAME, CAB, BACK, MATTE BLACK

1019563-458

$1,049.99

2

FRAME, CAB, FRONT, MATTE BLACK

1019958-458

$329.99

3

Base, Cab Frame, Front, Base, RH, Matte Black

5632414-458

$154.99

4

Base, Cab Frame, Front, Base, LH, Matte Black

5632415-458

$154.99

5

TUBE-SIDE BAR,LH,BLK

5339659-458

$188.79

6

TUBE-SIDE BAR,RH,BLK

5339660-458

$188.79

7

SCREW

7517935

$2.38

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.19

9

BOLT, FLANGE

7518702

$3.97

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

11

BOLT

7518555

$2.38

12

SCREW

7516732

$1.59

13

SCR-M10X1.5X25,HEX,DIN933,8.8

7519308

$4.76

14

NUT-NY INS,M10X1.5,HEX,ZINC,YW

7547385

$1.19
