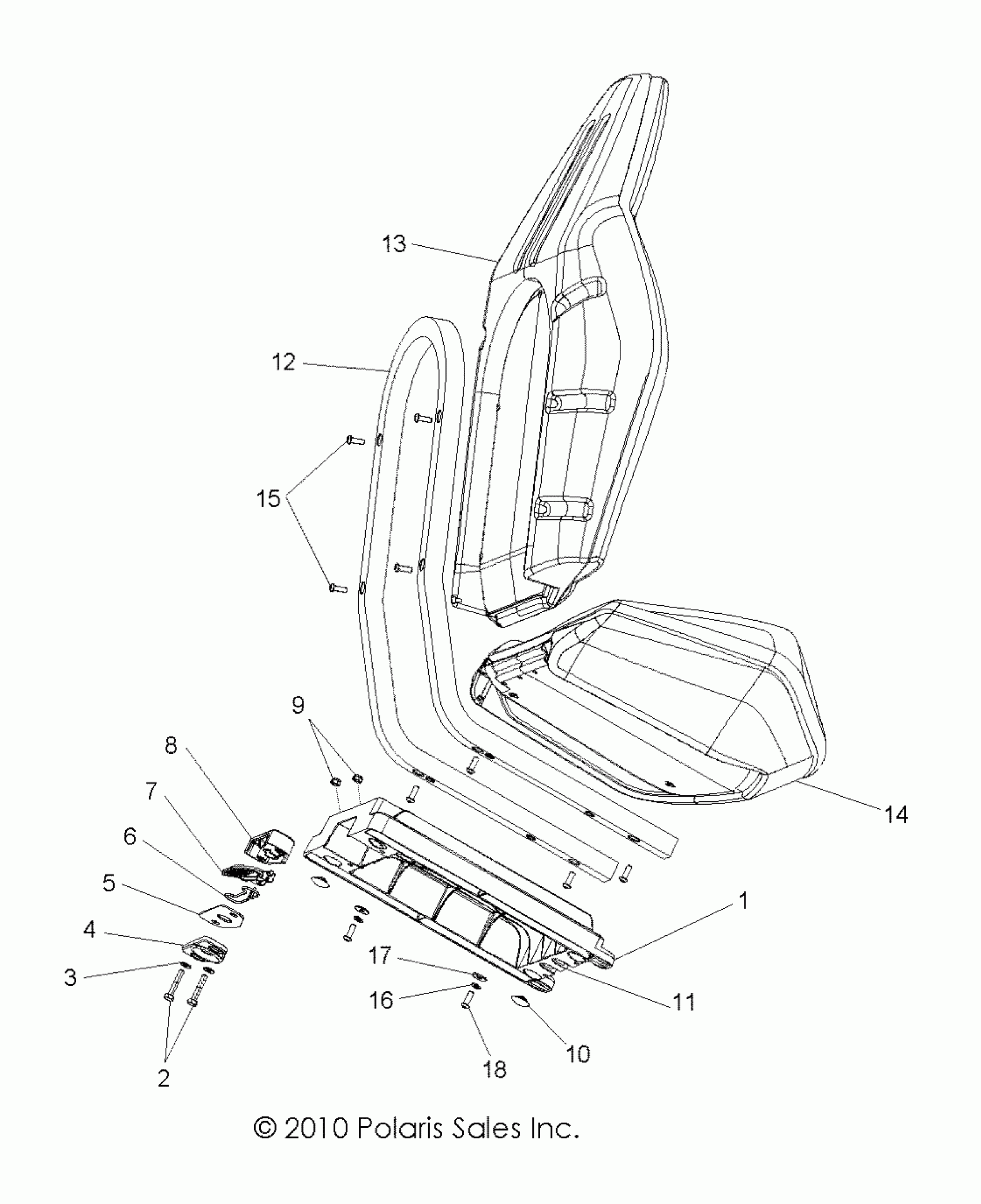

Polaris RZR 570 (R06) - Z17VHA57A2/E57AU BODY, SEAT ASM. - Z17VHA57A2/E57AU (49RGRSEAT11RZR) Diagram

#

Description
Price

1

ASM., SEAT BASE [INCL. 2-11]

2633532

$55.99

2

BOLT

7512126

$4.79

3

Washer, Flat

7558301

$1.49

4

CAP-LATCH,SEAT

5437120

$7.99

5

PLATE-LATCH,SEAT

5258647

$6.39

6

SPRING, SEAT LATCH

7081466

$39.99

7

HANDLE-SEAT BASE LATCH

5437121

$4.84

8

PLATE-TOP, SEAT BASE LATCH

5437119

$6.46

9

Nut, Nylok

7542122

$1.49

10

GROMMET, SEAT BASE

5413441

$3.99

11

BASE, SEAT

5436597

Unavailable

12

ASM., TUBE, SEAT HOOP, BLACK

2634133

$95.99

13

ASM., SEAT BACK, WHITE [A2]

2686399

Unavailable

13

ASM-SEAT BACK,BLK/RED [AU]

2684959

Unavailable

14

ASM., SEAT BOTTOM [A2]

2685956

$207.99

14

ASM-SEAT BTM,BLK/RED [AU]

2685954

Unavailable

15

SCREW

7515177

$3.19

16

WASHER, SPRING LOCK

7552801

$1.59

17

Washer, Flat

7555859

$1.49

18

SCREW

7519296

$1.59
