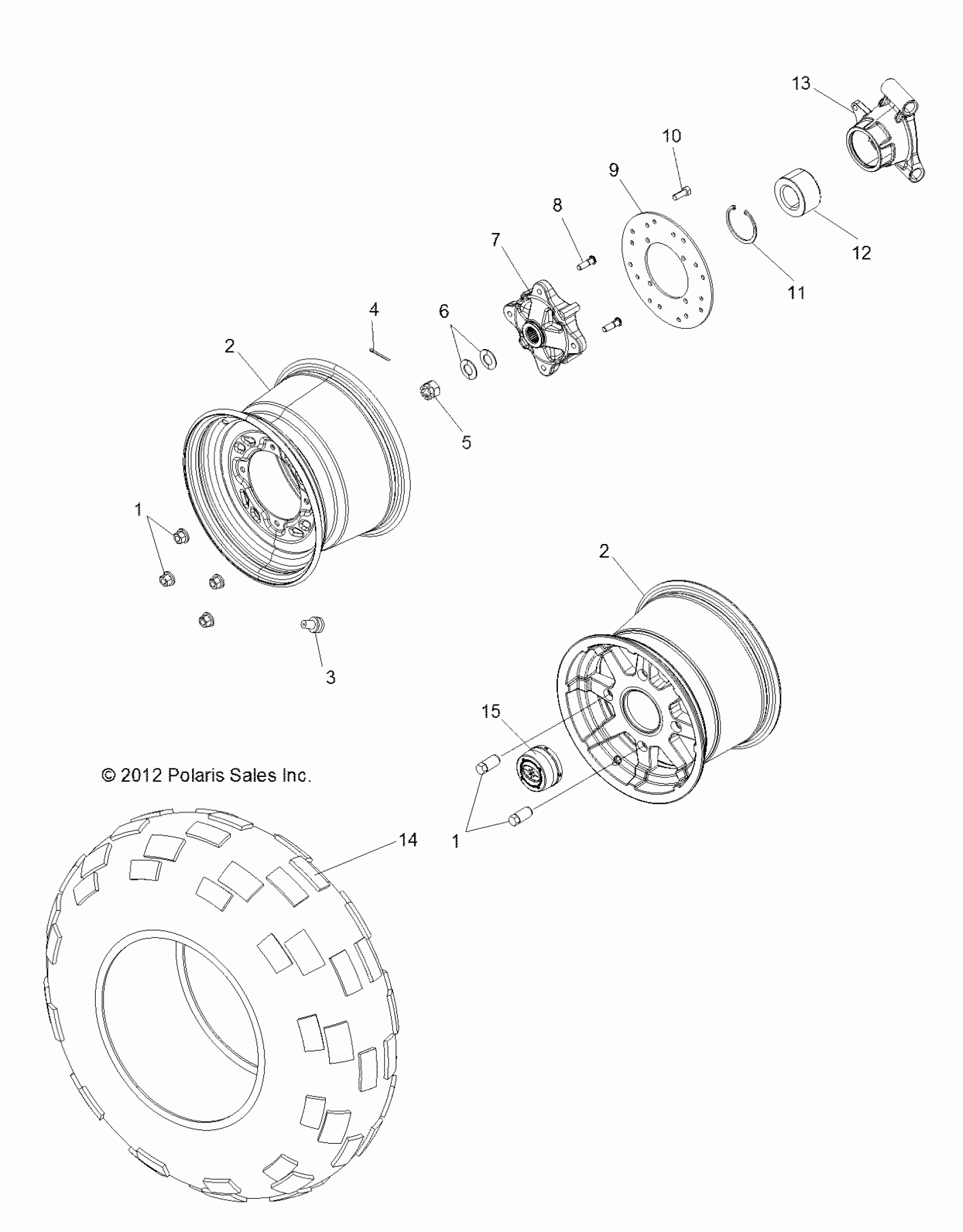

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS WHEELS, REAR - Z16VHA57A2/EAK/AS (49RGRWHEELRR13RZR570) Diagram

#

Description
Price

1

NUT, FLANGED [A2]

7547237

$2.38

1

NUT, WHEEL [AK][AS]

7547309

$3.57

1

NUT, FLANGED [A2]

7547237

$2.38

1

NUT, WHEEL [AK][AS]

7547309

$3.57

2

RIM, REAR, BLACK [A2]

1520992-067

$137.60

2

RIM, REAR, MATTE BLACK [AK][AS]

1521161-458

$309.03

2

RIM, REAR, BLACK [A2]

1520992-067

$137.60

2

RIM, REAR, MATTE BLACK [AK][AS]

1521161-458

$309.03

3

VALVE-RIM

1525017

$6.46

4

PIN, COTTER

7661404

$4.76

5

NUT, CASTLE

7547337

$1.98

6

WASHER, CONE

7555796

$7.94

7

HUB, WHEEL, REAR

5139163

$112.09

8

STUD

7518378

$1.59

9

DISC, BRAKE, REAR

5248250

$76.89

10

SCREW

7519343

$4.76

11

RING, RETAINING

7710440

$10.32

12

BEARING, BALL

3514635

$39.68

12

BEARING-WHEEL,HD,40X74X40MM [OPTIONAL]

3515087

$63.49

13

CARRIER, BEARING, WHEEL, LH

5138501

$266.25

13

CARRIER, BEARING, WHEEL, RH

5138502

$266.25

14

TIRE, REAR, 25X10-12 [AK][AS]

5413061

$181.49

14

TIRE, REAR, 25X10-12 [A2]

5414179

$144.99

15

CAP-RIM [AK][AS]

1521128

$24.22
