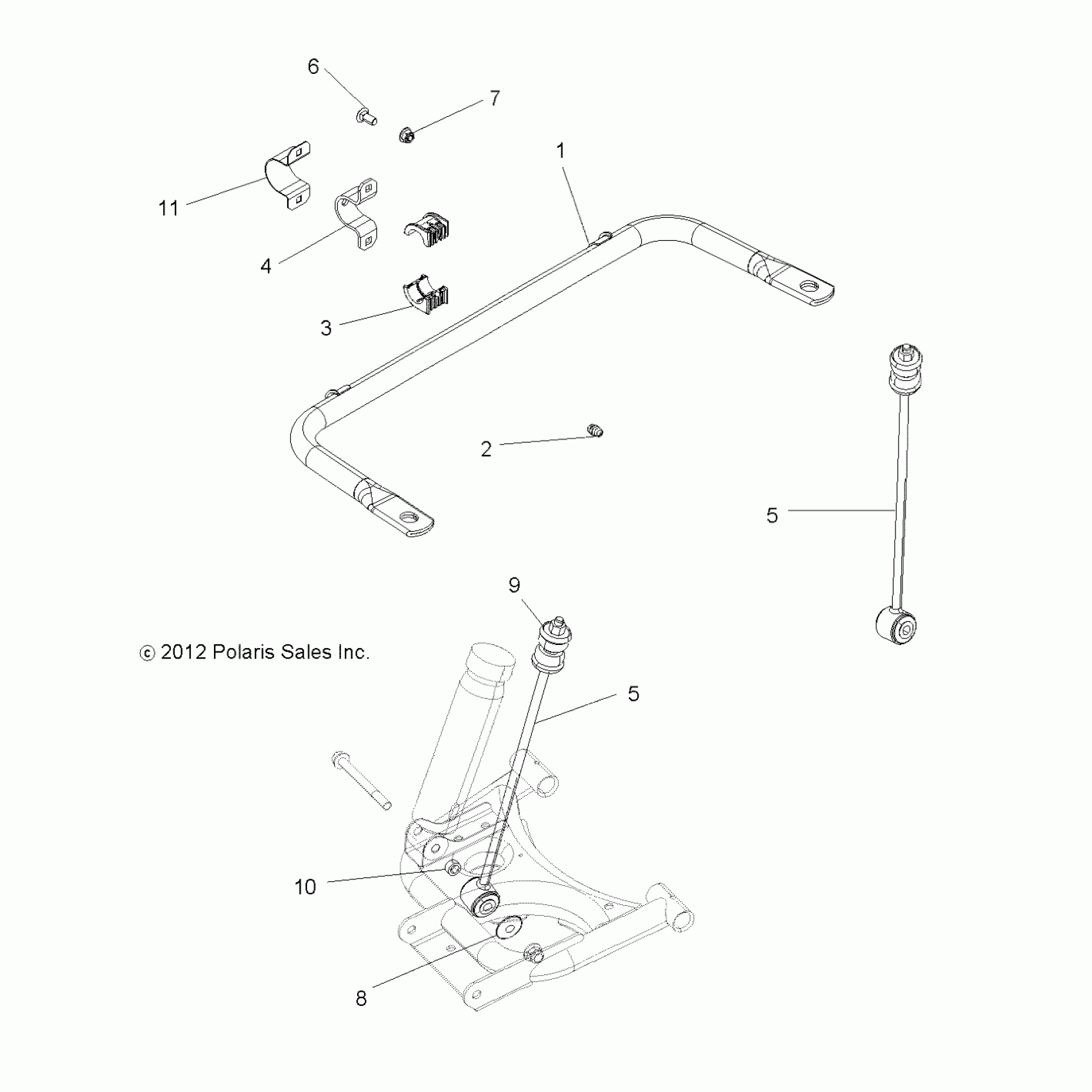

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS SUSPENSION, STABILIZER BAR, REAR - Z16VHA57A2/EAK/AS (49RGRSTABILIZERRR13RZR570) Diagram

#

Description
Price

1

BAR, STABILIZER, REAR, MATTE BLACK

1018449-458

$349.99

2

Fitting, Lubrication

7080433

$1.19

3

BUSHING-UPPER STEERING,1 IN

5439731

$6.35

4

BRACKET-BUSHING

5255357

$28.32

5

ASM., LINKAGE, STABILIZER BAR [INCL. 9]

1542942

Unavailable

5

ASM., LINKAGE, STABILIZER BAR [INCL. 9]

1542942

Unavailable

6

BOLT, CARRIAGE

7520298

$7.59

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

WASHER

7555852

$2.38

9

BUSHING, TORSION BAR LINKAGE

5413295

$4.76

10

SPACER

5334945

$3.97

11

SHIELD, BUSHING

5256741

$32.37
