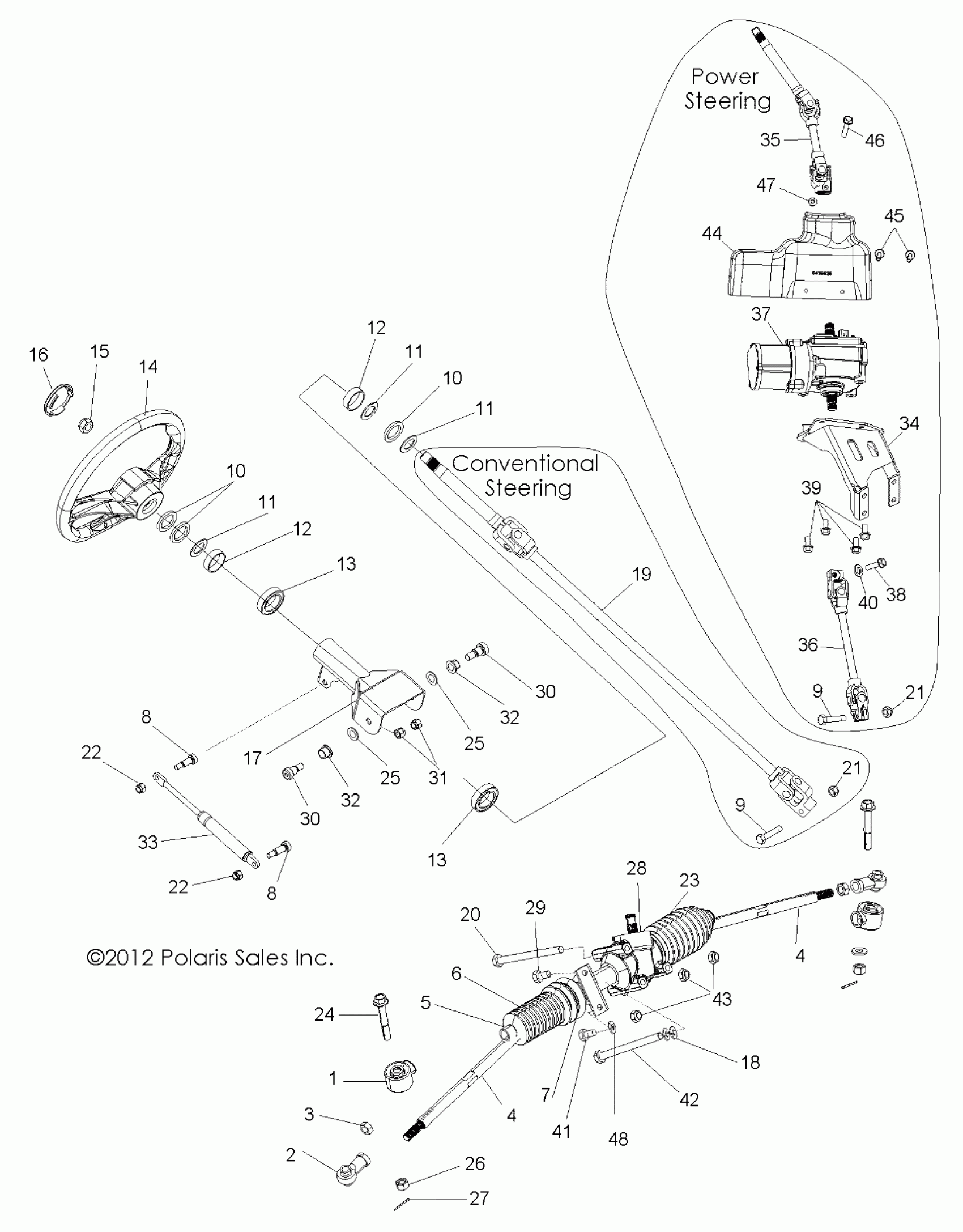

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS STEERING, STEERING ASM. - Z16VHA57A2/EAK/AS (49RGRSTEERING13RZR570) Diagram

#

Description
Price

1

Boot, Seal, Rod End

5411920

Unavailable

2

ROD END

-------

Unavailable

3

NUT, JAM, LH

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

-------

Unavailable

6

BOOT, PASSENGER, SIDE RACK

-------

Unavailable

7

CLAMP, BOOT, LARGE

-------

Unavailable

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

9

SCREW

7518644

$4.79

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

10

WASHER-NEOPREME,28 OD X 20 ID

7556482

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

11

WASHER

7556483

$3.99

12

SPACER-STEERING SHAFT

5252796

$4.79

12

SPACER-STEERING SHAFT

5252796

$4.79

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547188

$5.59

16

CAP-STEERING WHEEL

5436536

$31.99

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$127.99

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

SHAFT, STEERING [A2]

1823727

$127.99

20

BOLT [LOCK PATCH]

7518895

$3.99

21

NUT, NYLOK

7547385

$1.49

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, DRIVER SIDE, RACK

5412012

$59.99

24

Bolt

7517909

$5.59

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.49

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1823632

$519.19

29

BOLT

7512325

$2.39

30

BOLT, SHOULDER

7517607

$5.59

30

BOLT, SHOULDER

7517607

$5.59

31

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

ASM., SHOCK, OIL LOCKING

7043810

$91.99

34

MOUNT, EPS, BLACK [AK][AS]

1017716-458

$119.99

35

SHAFT, STEERING, EPS, UPPER [AK][AS]

1823749

$139.99

36

SHAFT, STEERING, EPS, LOWER [AK][AS]

1823782

$159.99

37

ASM., POWER STEERING [AK][AS]

2413041

$1,971.19

38

BOLT, CAP [AK][AS]

7517924

$4.79

39

BOLT [AK][AS]

7518558

$3.99

40

WASHER, SPRING LOCK [AK][AS]

7552901

$1.49

41

BOLT

7512371

$4.79

42

BOLT

7515382

$2.39

43

NUT-5/16-18 NYLOK-Y

7542324

$1.49

44

COVER, EPS [AK][AS]

5438626

$31.99

45

SCREW [AK][AS]

7519092

$1.49

46

SCREW [AK][AS]

7516827

$6.39

47

NUT-M6 FLANGE,NYLOC [AK][AS]

7547274

$1.49

48

NUT, PAL [AK][AS]

7547030

$4.79
