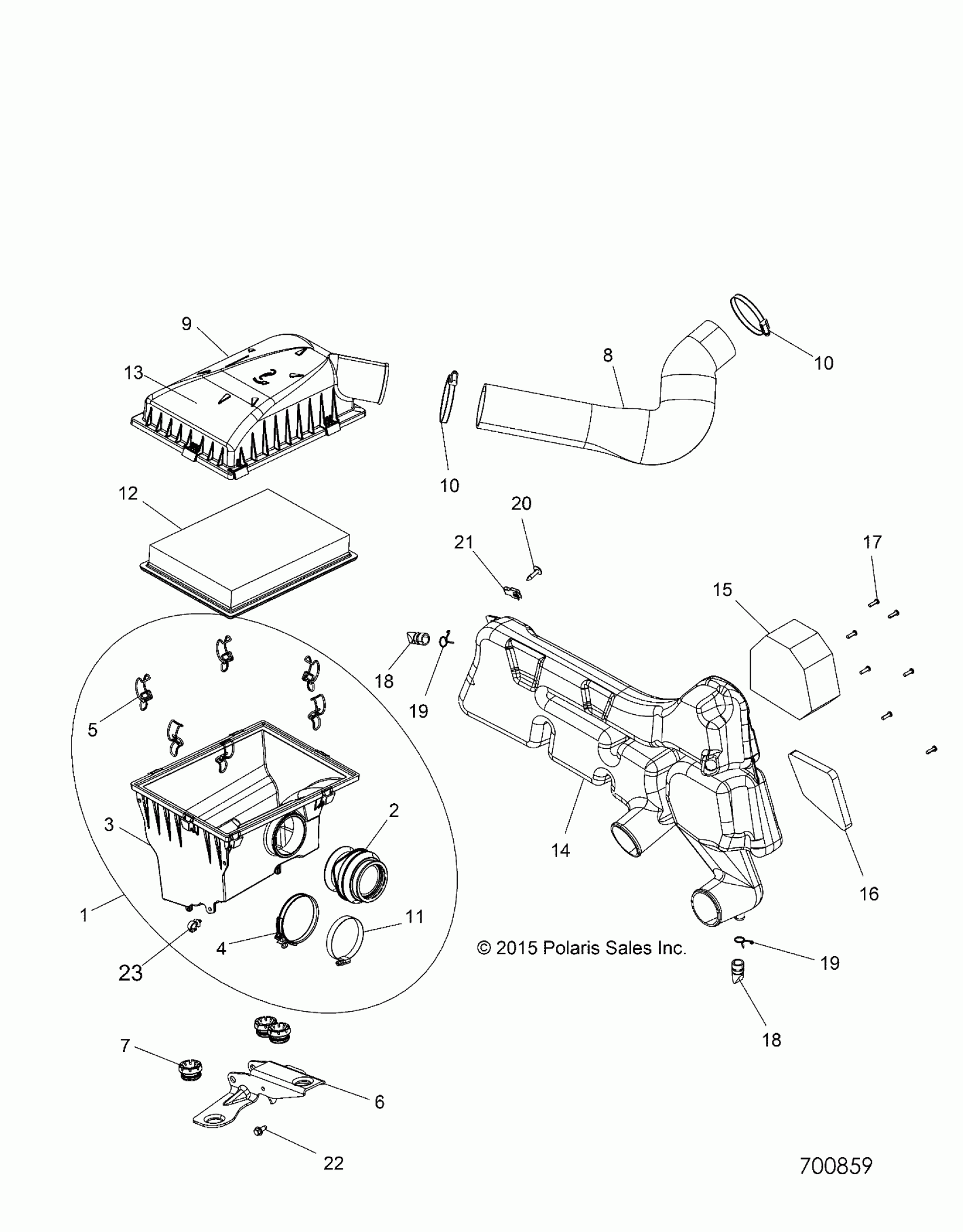

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS ENGINE, AIR INTAKE SYSTEM - Z16VHA57A2/EAK/AS (700859) Diagram

#

Description
Price

1

ASM., AIRBOX, MAIN [INCL. 1-5]

1240633

$83.99

1

ASM., AIRBOX, MAIN [INCL. 1-5]

1240633

$83.99

2

BOOT, AIRBOX

5414134

$23.99

3

BASE, AIRBOX

5438897

$67.99

4

Clamp, Airbox

7081312

$11.19

5

CLIP-AIRBOX

7081707

$4.79

6

BRACKET, MOUNT, BLACK

5254922-329

$27.99

7

GROMMET

5412507

$6.39

8

HOSE, INTAKE

5415098

$87.99

9

LID, AIRBOX

5450157

$67.99

10

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

10

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

11

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

12

FILTER, AIRBOX, MAIN

7081706

$35.99

13

DECAL, FILTER MAINTENANCE

7177872

$6.39

14

BOX, INTAKE

5450598

$155.99

15

FILTER, ENGINE IN

5813713

$31.99

16

FILTER, CLUTCH IN

5813712

$12.79

17

SCREW

7512026

$1.49

18

Cap, Drain

5412960

$15.19

18

Cap, Drain

5412960

$15.19

19

Clamp, Hose

7080694

$6.53

19

Clamp, Hose

7080694

$6.53

20

SCREW

7517685

$1.59

22

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

23

CLIP-ROUTING,.472 B.D.,HINGED

7670116

$5.59
