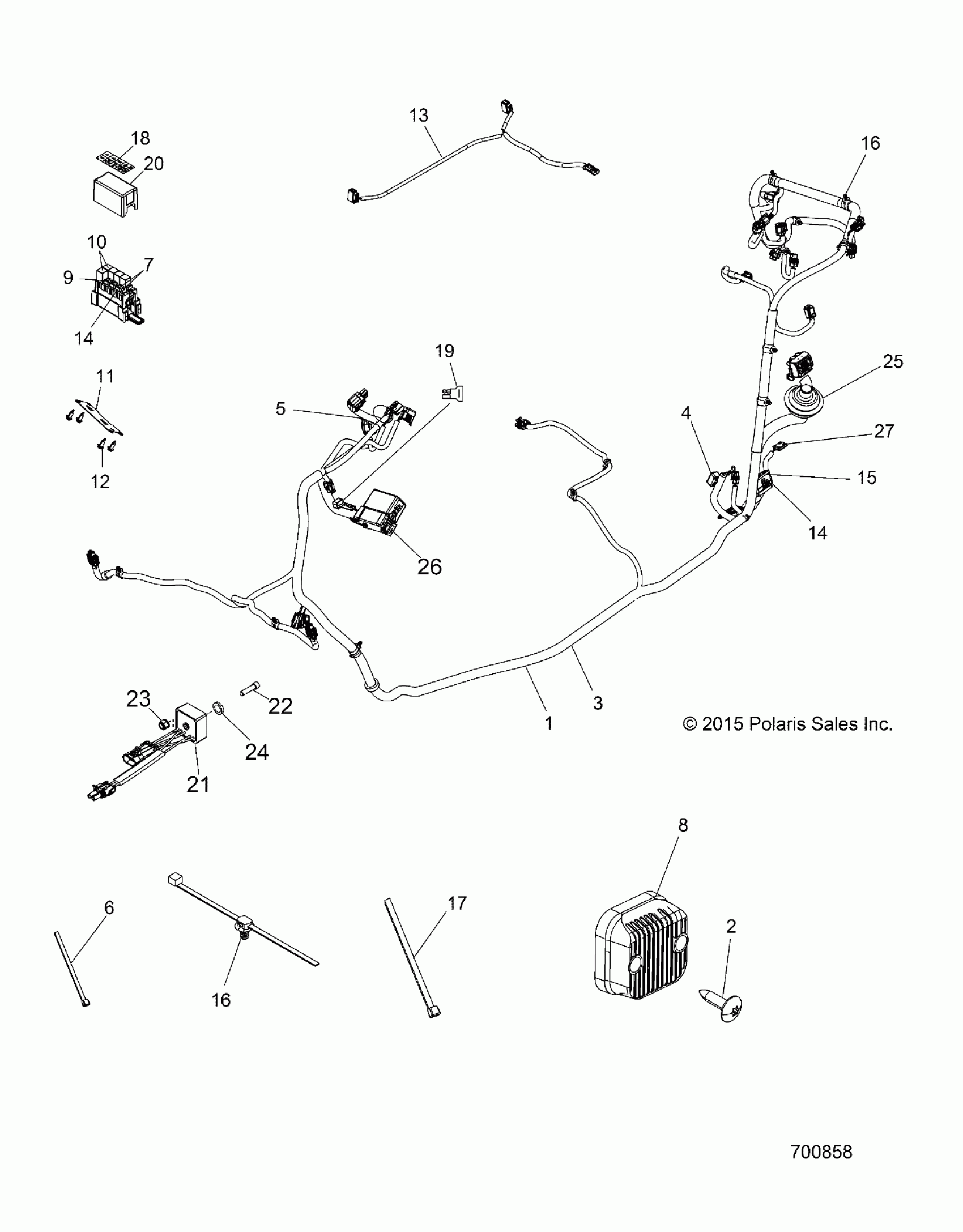

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS ELECTRICAL, WIRE HARNESS - Z16VHE57AK/AS (700858) Diagram

#

Description
Price

1

KIT, HARNESS, IAC

2878507

$135.99

1

KIT, HARNESS, PHASE SENSOR

2878504

$127.99

1

KIT, HARNESS, TPS

2878498

$113.32

1

KIT, HARNESS, COIL

2878501

Unavailable

1

KIT, HARNESS, REGULATOR, AC IN

2878505

$95.99

1

KIT, HARNESS, REGULATOR, DC OUT

2878506

$307.99

1

KIT, STATOR

2878508

Unavailable

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

KIT, HARNESS, CPS

2878497

$111.99

1

KIT, HARNESS, T-BAP

2875542

Unavailable

1

KIT, HARNESS, HEADLIGHT

2878493

$47.99

1

HARNESS, CHASSIS [INCL. 3-5,7,9,10,14-16,18-20]

2412372

$848.39

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

KIT, FUSIBLE LINK, 1 MM

2202670

$35.99

4

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

FUSE-PARK,20 AMP

2434017

Unavailable

8

REGULATOR, 3 PH, 35 AMP

4012941

$227.99

9

FUSE-IGNITION,10 AMP

2434016

$4.79

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

PLATE, FUSE MOUNT

5253675

$7.19

12

Rivet

7661855

$1.49

13

HARNESS, BOX

2411805

$55.99

14

FUSE-MAIN,30 AMP

2434015

$7.19

14

FUSE-MAIN,30 AMP

2434015

$7.19

15

DECAL, POWER FUSE

7177211

Unavailable

16

CLIP, ROUTING

7081888

$27.99

16

CLIP, ROUTING

7081888

$27.99

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

DECAL, RELAY/FUSE BLOCK

7176911

Unavailable

19

DIODE, 6 AMP

2410000

$35.99

20

COVER-RELAY/FUSE CENTER

5438758

$11.32

21

RELAY, 9 AMP, LONG

4012829

$71.99

22

SCREW

7519257

$3.99

23

NUT, FLANGED, NYLOCK

7542339

Unavailable

24

SPACER-.26X.50X.31

7556318

$2.39

25

GROMMET-65MM,BLK

5813954

$7.19

26

CLIP-BASE,RELAY/FUSE CENTER

5450411

$10.39

27

CONNECTOR-2F,56 SERIES, UNSEALD (BK)

-------

Unavailable
