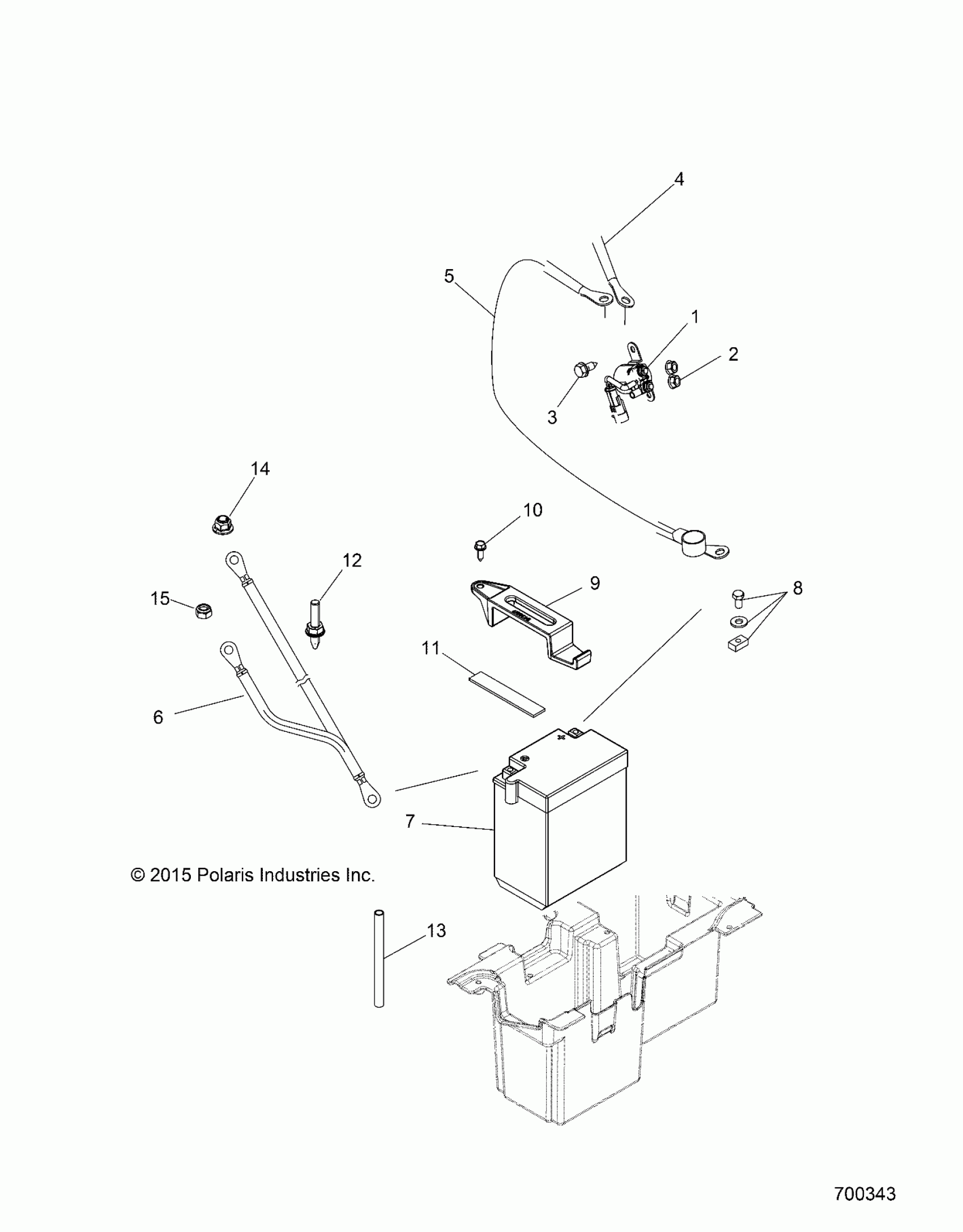

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS ELECTRICAL, BATTERY - Z16VHA57A2/EAK/AS (700343) Diagram

#

Description
Price

1

SOLENOID, STARTER [INCL 2]

4012001

$47.60

2

NUT, FLANGED

7547270

$3.97

3

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

4

Cable, Solenoid to Starter

4011498

$89.99

5

CABLE-BATT TO SOLENOID/TERMINA

4011497

$44.51

6

CABLE, GROUND, ENGINE/BATTERY/CHASSIS

4014470

$48.56

7

BATTERY-14AH,DRY W/O ACID [A2]

4012622

$128.56

7

BATTERY [AK][AS]

4010630

$147.60

8

KIT, BATTERY BOLT [A2]

2202213

$3.79

8

BATTERY BOLT KIT [AK][AS]

2201357

$11.11

9

STRAP, BATTERY RETAINER [A2]

5438917

$10.51

9

STRAP, BATTERY HOLDDOWN [AK][AS]

5258648

$8.99

10

Screw

7512098

$1.59

11

PAD, RACK MOUNT

5810455

$3.22

12

STUD

7519333

$7.94

13

TUBE-BATTERY VENT,305MM

5435030

$4.84

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.19
