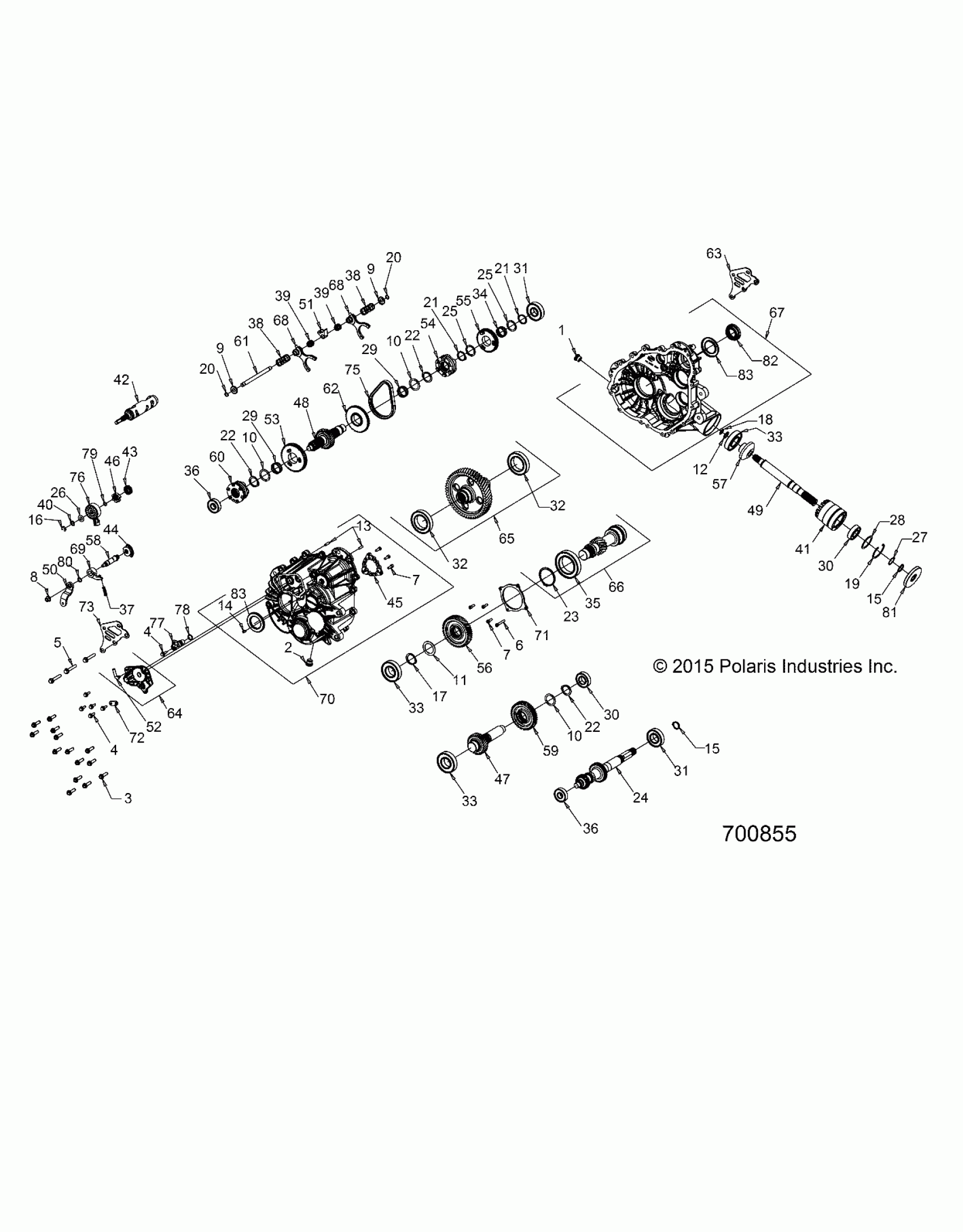

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS DRIVE TRAIN, MAIN GEARCASE - Z16VHA57A2 (700855) Diagram

#

Description
Price

-

ASM., GEARCASE [INCL. ALL]

1333507

$3,455.99

1

PLUG, M18 X 1.5

3234755

$27.78

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

4

SCREW

3235206

$7.14

4

SCREW

3235206

$7.14

5

SCREW

3235207

$10.32

6

SCREW, SOCKET HEAD, CAP

3235208

$11.11

7

SCREW, SOCKET HEAD, CAP

3235332

$3.97

7

SCREW, SOCKET HEAD, CAP

3235332

$3.97

8

NUT

3235210

$7.94

9

WASHER-CUP

3234091

$9.52

9

WASHER-CUP

3234091

$9.52

10

WASHER

3235211

$10.32

10

WASHER

3235211

$10.32

10

WASHER

3235211

$10.32

11

WASHER

3235212

$13.49

12

WASHER

3235213

$15.87

13

PIN, DOWEL 6 X 20

3234330

$7.14

14

PIN, SPRING, SLOTTED

7043746

$8.08

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

16

RING, SNAP

3233834

$10.32

17

RING, RETAINING, SHAFT

3233364

$6.46

18

RING, RETAINING, EXTERNAL

3234318

$3.17

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING, RETAINING

3234205

$11.11

21

RING, RETAINING

3234205

$11.11

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

23

RING, RETAINING

3235216

$10.32

24

INPUT SHAFT BOSS L/W UTILITY

3235429

$178.08

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

27

SHIM

3234278

$101.17

28

SHIM

3234273

$13.75

29

BEARING, NEEDLE

3233014

$43.65

29

BEARING, NEEDLE

3233014

$43.65

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

31

BEARING

3233020

$47.62

31

BEARING

3233020

$47.62

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

34

BEARING, NEEDLE

3233384

$31.75

35

BEARING, BALL

3235218

$59.52

36

BEARING, BALL

3234652

$15.87

36

BEARING, BALL

3234652

$15.87

37

BRACKET, WIRE HARNESS

3235350

$8.89

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

39

SPRING, COMPRESSION

3234089

$28.32

39

SPRING, COMPRESSION

3234089

$28.32

40

WASHER, SPRING

3235327

$9.52

41

TUBE

3234278

$101.17

42

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

43

GEAR, SECTOR, 16T

3233839

$36.41

44

GEAR-SECTOR,31T

3233832

$36.41

45

PLATE, PARK

3235456

$40.46

46

DETENT STAR

3235603

$40.46

47

SHAFT, IDLER, 29T

3235223

$128.24

48

SHAFT-REVERSE,27T(285878)

3235380

$246.89

49

SHAFT, OUTPUT, FRONT

3235394

$133.56

50

BELLCRANK

3235386

$32.37

51

COLLAR-SHIFT

3234073

$31.75

52

TUBE, VENT

3234230

$10.51

53

GEAR, LOW, 67T

3235232

$125.46

54

DOG, ENGAGEMENT

3235233

$129.51

55

GEAR, 53T

3235234

$99.74

56

GEAR, 46T

3235236

$128.24

57

GEAR, 13T

3235237

$156.74

58

SHAFT-SHIFT(352973)

3235238

$42.74

59

GEAR, 46T

3235381

$156.74

60

DOG, SHIFT, PARK/LOW

3235457

$145.70

61

RAIL, SHIFT SHAFT

3235542

$28.32

62

SPROCKET, 48T, 6-FACE

3235755

$80.94

63

BRACKET, MOUNT, REAR

3235239

$40.46

64

SUBASSEMBLY, SECTOR COVER [INCL. ALL HARDWARE]

3235713

$135.54

65

SUBASM., OUTPUT GEAR [INCL. BEARING]

3235335

$408.49

66

SUBASM.,SHAFT [INCL. ALL HARDWARE]

3235336

$446.49

67

SUBASM., CASE, LH [INCL. ALL HARDWARE]

3235382

Unavailable

68

SUBASM., SHIFT FORK

3235454

$89.03

68

SUBASM., SHIFT FORK

3235454

$89.03

69

PAWL, ROLLER

3235452

$36.41

70

SUB-ASSY,RH COVER [INCL. ALL HARDWARE]

3235756

$549.99

71

COVER-BEARING,CNTR DR.

3235241

$48.56

72

BRACKET-WIRE HARNESS

3235350

$8.89

73

BRACKET, MOUNT, REAR

3235351

$48.56

75

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

76

SWITCH, ROTARY

7661999

$117.37

77

SENSOR-SPEED,TRANS

4013908

$109.27

78

O-RING

3234302

$7.27

79

O-RING

3233836

$6.87

80

O-RING

3233828

$6.87

81

SEAL, TRIPEL LIP

3234113

$36.41

82

SEAL

3234851

$42.74

83

SEAL, TRIPLE LIP

3235052

$32.37

83

SEAL, TRIPLE LIP

3235052

$32.37
