Description

Price

-

ASM. GEARCASE, EBS [INCL. ALL]

1333508

$2,371.59

1

PLUG,EXPANSION,1 1/4

3234249

$13.59

1

PLUG,EXPANSION,1 1/4

3234249

$13.59

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCR-M6X1.0X20,HXFLG(105295)

3235206

$7.19

6

SCR-M6X1.0X20,HXFLG(105295)

3235206

$7.19

7

SCREW-CAP HH,M8 X 1.25 X 20

3235096

Unavailable

8

SCR-M8X50,HXFLG(105343)

3235207

$10.39

9

SCR-M6X1.0X40,SOC/CAP(105344)

3235208

$11.19

10

SCR-SCKT HD,CP,M6X1X18(105355)

3235332

$3.99

10

SCR-SCKT HD,CP,M6X1X18(105355)

3235332

$3.99

11

NUT-M8X1.25,HXFLG,NYLN(110093)

3235210

$7.99

12

WASHER-CUP

3234091

$9.59

12

WASHER-CUP

3234091

$9.59

13

WASHER-32.3X42X1.5(115288)

3235211

$10.39

13

WASHER-32.3X42X1.5(115288)

3235211

$10.39

13

WASHER-32.3X42X1.5(115288)

3235211

$10.39

14

WASHER-35.6X57X1.5(115289)

3235212

$13.59

15

WASHER-17.3X25X1.5(115290)

3235213

$15.99

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

SHAFT-REVERSE,26T

7043746

$7.19

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

19

RING, SNAP

3233834

$10.39

20

RING-RETAINING,IRR 7200-137

3233364

$6.39

21

RING,RETAINING,EXTERNAL SHR-66

3234318

$3.19

22

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING,RETAINING

3234205

$11.19

24

RING,RETAINING

3234205

$11.19

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,VSH-237(130298)

3235216

$10.39

27

SHAFT-PINNION,INPUT,BOSS,LW

3235429

$175.99

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

30

SHIM 1.180 X .995

3234272

$31.99

31

SHIM 2.040 OD X 1.630 ID

3234273

$12.79

32

BEARING, NEEDLE

3233014

$43.99

32

BEARING, NEEDLE

3233014

$43.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

BEARING

3233020

$47.99

34

BEARING

3233020

$47.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

37

BEARING-NEEDLE,30X35X13-CAGED

3233384

$31.99

38

BEARING-BALL,CN(180173)

3235218

$59.99

39

BEARING,PLAIN,10X12X25

3234239

$15.99

40

PLAIN,BEARING 40X44X15

3234241

$15.99

40

PLAIN,BEARING 40X44X15

3234241

$15.99

40

PLAIN,BEARING 40X44X15

3234241

$15.99

41

BEARING,BALL,6303 17X47X14

3234652

$15.99

41

BEARING,BALL,6303 17X47X14

3234652

$15.99

42

SPRING-COMPRESSION

3233830

$10.39

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

44

SPRING-COMPRESSION

3234089

$23.99

44

SPRING-COMPRESSION

3234089

$23.99

45

SPRING, TORSION RETURN

3234276

$7.99

46

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

47

WASHER-SPRING,210393

3235327

$9.59

48

TUBE, SNORKLE MACH

3234278

$95.99

49

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

50

GEAR-SECTOR,16T

3233839

$31.99

51

GEAR-SECTOR,31T

3233832

$31.99

52

SHIFT FORK (270507)

3235455

$87.99

53

PARK PLATE (270509)

3235456

$35.99

54

DETENT STAR

3235603

$35.99

55

SHAFT-IDLER,29T(285803)

3235223

$107.99

56

SHAFT-REVERSE,27T(285878)

3235380

$243.99

57

SHAFT-FRONT OUTPUT(285914)

3235394

$131.99

58

BELLCRANK(290064)

3235397

Unavailable

59

COLLAR-SHIFT

3234073

$31.99

60

TUBE-VENT,90-1/4" HOSE

3234230

$9.59

61

DOG-ENGAGEMENT

3234928

$67.99

62

GEAR-LOW,67T(352856)

3235232

$115.99

63

ENGAGEMENT DOG,6-FACE(352857)

3235233

$119.99

64

GEAR-53T(352858)

3235234

$79.99

65

GEAR-46T,STAGE 3(352872)

3235236

$103.99

66

GEAR-13T,FRONT OUTPUT(352957)

3235237

$123.99

67

SHAFT-SHIFT(352973)

3235238

$37.61

68

GEAR-46T,STAGE 2

3235381

$123.99

69

SHIFT DOG, PARK/LOW (353357)

3235457

$135.99

70

RAIL-SHIFT SHAFT(353622)

3235542

$27.99

71

SPROCKET-48T,6-FACE REVERSE

3235755

$79.99

72

WELD-REAR MOUNT BRKT(400153)

3235239

$39.99

73

GEAR SUBASSEMBLY

3234469

$67.99

74

SUBASSEMBLY, SECTOR COVER

3235713

$107.99

75

DIFF-LOCKING (411600)

3235373

$431.19

76

SUBASSY-COVER,DIFF (411601)

3235376

$131.99

77

SUBASSY-GEAR,39T SIDE (411607)

3235374

$179.99

78

SUBASSY-GEAR,39T SIDE (411608)

3235375

$179.99

79

SUBASM.,SHAFT

3235336

$355.99

80

SUBASSY-GEAR,53T (411797)

3235378

$379.99

81

SUBASSY,LH CASE(411919)

3235422

$616.98

82

SHIFT FORK SUBASSEMBLY

3235454

$83.99

82

SHIFT FORK SUBASSEMBLY

3235454

$83.99

83

ROLLER PAWL

3235452

$31.99

84

SUBASM,RH CASE

3235756

$405.59

85

RETAINER-FORK

3234934

$10.39

86

COVER-BEARING,CNTR DR.

3235241

$43.99

87

BRACKET, WIRE HARNESS

3235350

$8.79

88

BRKT-REAR MOUNT(430598)

3235351

$47.99

90

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

91

SWITCH,ROTARY 2 PIN RESISTIVE

7661999

$111.99

92

SOLENOID

3235478

$275.99

93

SENSOR-SPEED,TRANS

4013908

Unavailable

94

O-RING

3234302

$7.19

95

O-RING

3233836

$6.87

96

O-RING

3233828

$6.79

97

SEAL-TRIPLE LIP 25X80X10

3234113

$35.99

98

SEAL

3234851

$35.99

99

SEAL-TRIPLE LIP,VITON,40X70X7

3235052

$31.99

99

SEAL-TRIPLE LIP,VITON,40X70X7

3235052

$31.99

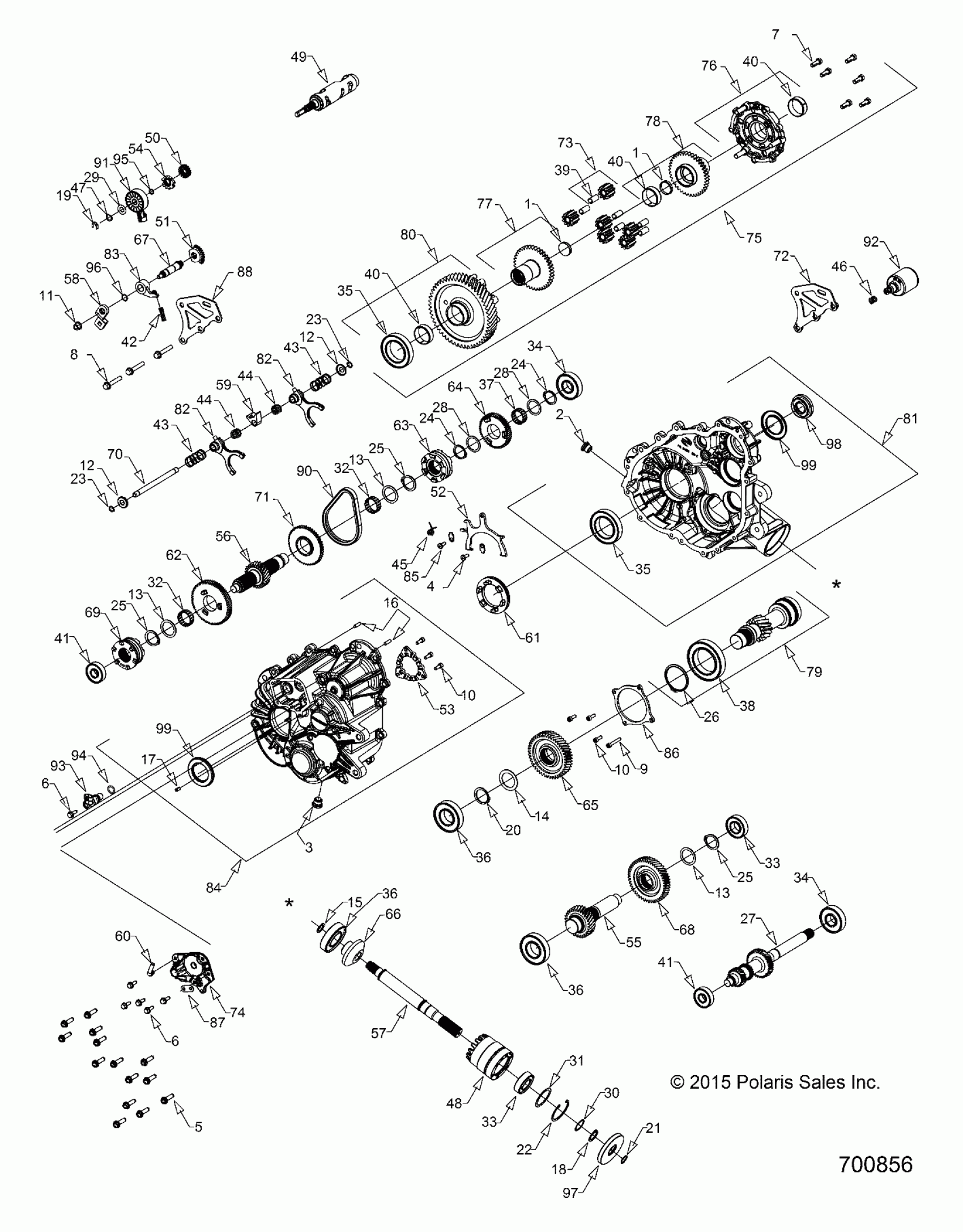

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS DRIVE TRAIN, MAIN GEARCASE (TO 2/1/16) - Z16VHE57AK/AS (700856) Diagram
