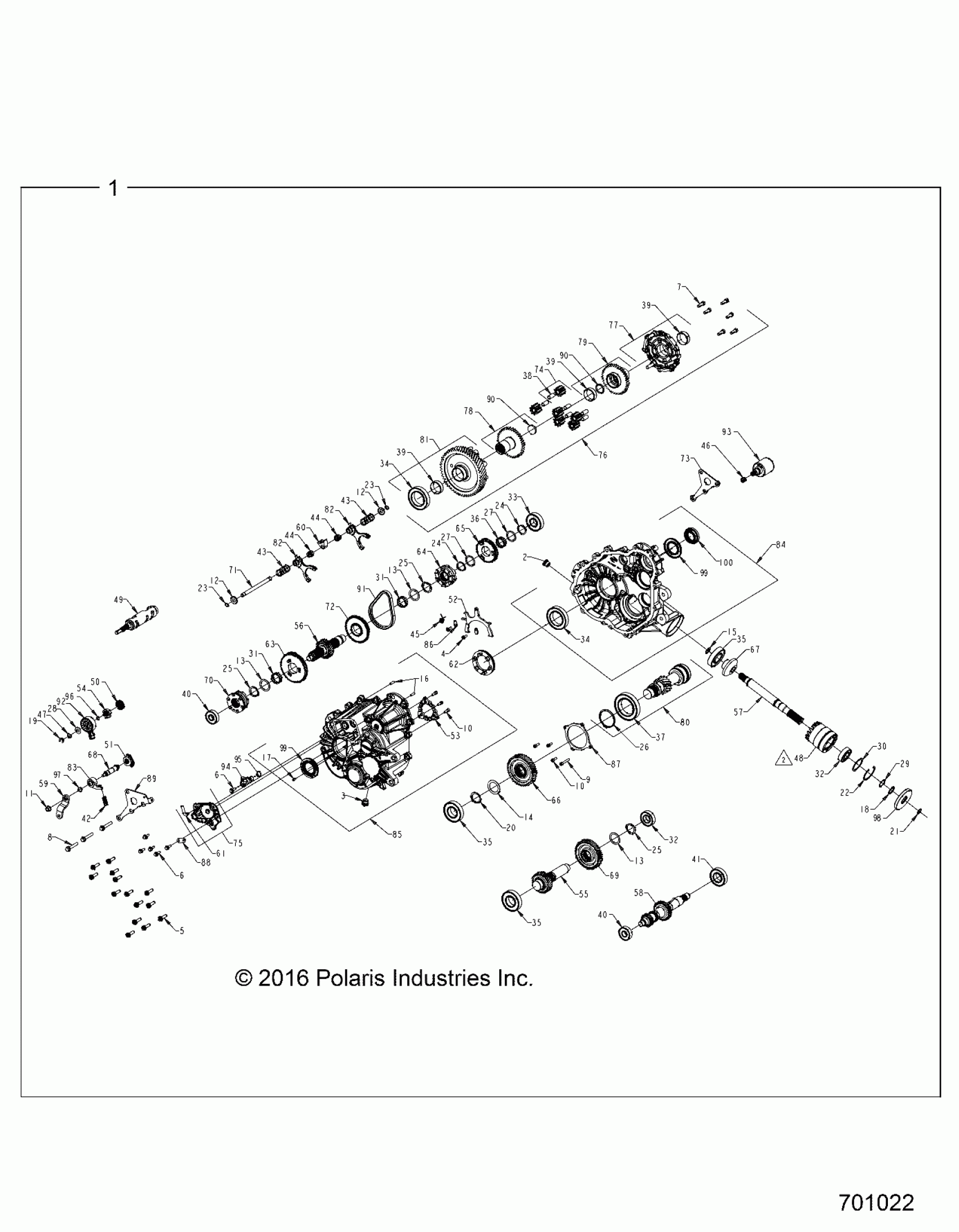

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS DRIVE TRAIN, MAIN GEARCASE (FROM 2/2/16) - Z16VHE57AK/AS (701022) Diagram

#

Description
Price

1

ASM-GEARCASE,EBS,16.5 [INCL. ALL]

1333660

$2,314.39

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW TORX PAN

3234309

$7.19

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCREW, HEX FLANGE HEAD

3235206

$7.19

6

SCREW, HEX FLANGE HEAD

3235206

$7.19

7

SCREW, CAP

3235096

Unavailable

8

SCREW HEX, FLANGE

3235207

$10.39

10

SCREW SOCKET HEAD, CAP

3235332

$3.99

11

NUT, LOCK HEX FlA116E, IIYLOII

3235210

$7.99

12

WASHER-CUP

3234091

$9.59

12

WASHER-CUP

3234091

$9.59

13

WASHER

3235211

$10.39

13

WASHER

3235211

$10.39

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

PIN SPRING SLOTTED

7043746

$7.19

19

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING, RETAINING

3234205

$11.19

24

RING, RETAINING

3234205

$11.19

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

27

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

31

BEARING, NEEDLE

3233014

$43.99

31

BEARING, NEEDLE

3233014

$43.99

33

BEARING

3233020

$47.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

36

BEARING. NEEDLE. CAGE ASSY

3233384

$31.99

38

BEARING PLAIN

3234239

$15.99

39

BEARING PLAIN

3234241

$15.99

39

BEARING PLAIN

3234241

$15.99

39

BEARING PLAIN

3234241

$15.99

40

BEARING, BALL

3234652

$15.99

42

SPRING COMPRESSION

3233830

$10.39

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

44

SPRING COMPRESSION

3234089

$23.99

44

SPRING COMPRESSION

3234089

$23.99

45

SPRING, TORSION RETURN

3234276

$7.99

46

SPRING COMPRESSION

3237277

Unavailable

47

SPRING WASHER

3235327

$9.59

49

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

50

GEAR SECTOR 16 T

3233839

$31.99

51

GEAR-SECTOR,31T

3233832

$31.99

52

FORK, PIVOT SHIFT, REAR DIFF

3235455

$87.99

53

PLATE, PARK I2�FACE

3235456

$35.99

54

DETENT STAR

3235603

$35.99

56

SHAFT-REVERSE,27T(285878)

3235380

$243.99

59

BELLCRANK, TXC

3235386

$27.99

60

COLLAR-SHIFT

3234073

$31.99

61

TUBE

3234230

$9.59

62

DOG ENGAGENENT

3234928

$67.99

63

GEAR, LOW 67T

3235232

$115.99

64

DOG ENGAGENENT

3235233

$119.99

65

GEAR, 53T

3235234

$79.99

68

SHAFT-SHIFT(352973)

3235238

$37.61

70

SHIFT DOG. PARK

3235457

$135.99

71

SHAFT SHIFT

3235542

$27.99

72

SPROCKET 48T, 6-FACE

3235755

$79.99

73

WELDMENT REAR MOUNT BRACKET

3235239

$39.99

74

GEAR SUBASSEMBLY

3234469

$67.99

75

SUBASSEMBLY, SECTOR COVER

3235713

$107.99

76

SUBASSEMBLY, AVALANCHE, DIFFERENTIAL

3235373

$431.19

77

SUBASSEMBLY, DIFFERENTIAL COVER

3235376

$131.99

78

SUBASSEMBLY 39T SIDE GEAR

3235374

$179.99

79

SUBASSEMBLY 39T SIDE GEAR

3235375

$179.99

81

SUBASSENBLY GEAR 53T

3235378

$379.99

82

SUBASSEMBLY SHIFT FORK

3235454

$83.99

82

SUBASSEMBLY SHIFT FORK

3235454

$83.99

83

SUBASSEMBLY PAWL DETENT

3235452

$31.99

84

SUBASSEMBLY LH CASE

3235757

$405.59

85

SUBASSEMBLY RH COVER

3235756

$405.59

86

RETAINER-FORK

3234934

$10.39

88

BRACKET WIRE HARNESS

3235350

$8.79

89

BRACKET REAR MOUNT

3235351

$47.99

91

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

92

SWITCH. ROTARY

7661999

$111.99

93

SOLENOID

3235478

$275.99

94

SENSOR-SPEED,TRANS

4013908

Unavailable

95

O-RING

3234302

$7.19

96

O-RING

3233836

$6.87

97

O-RING

3233828

$6.79

98

SEAL TRIPLE LIP

3234113

$35.99

99

SEAL TRIPLE LIP

3235052

$31.99

99

SEAL TRIPLE LIP

3235052

$31.99

100

SEAL TRIPLE LIP HILEX

3235495

$39.99

101

PLUG,EXPANSION,1 1/4

3234249

$13.59
