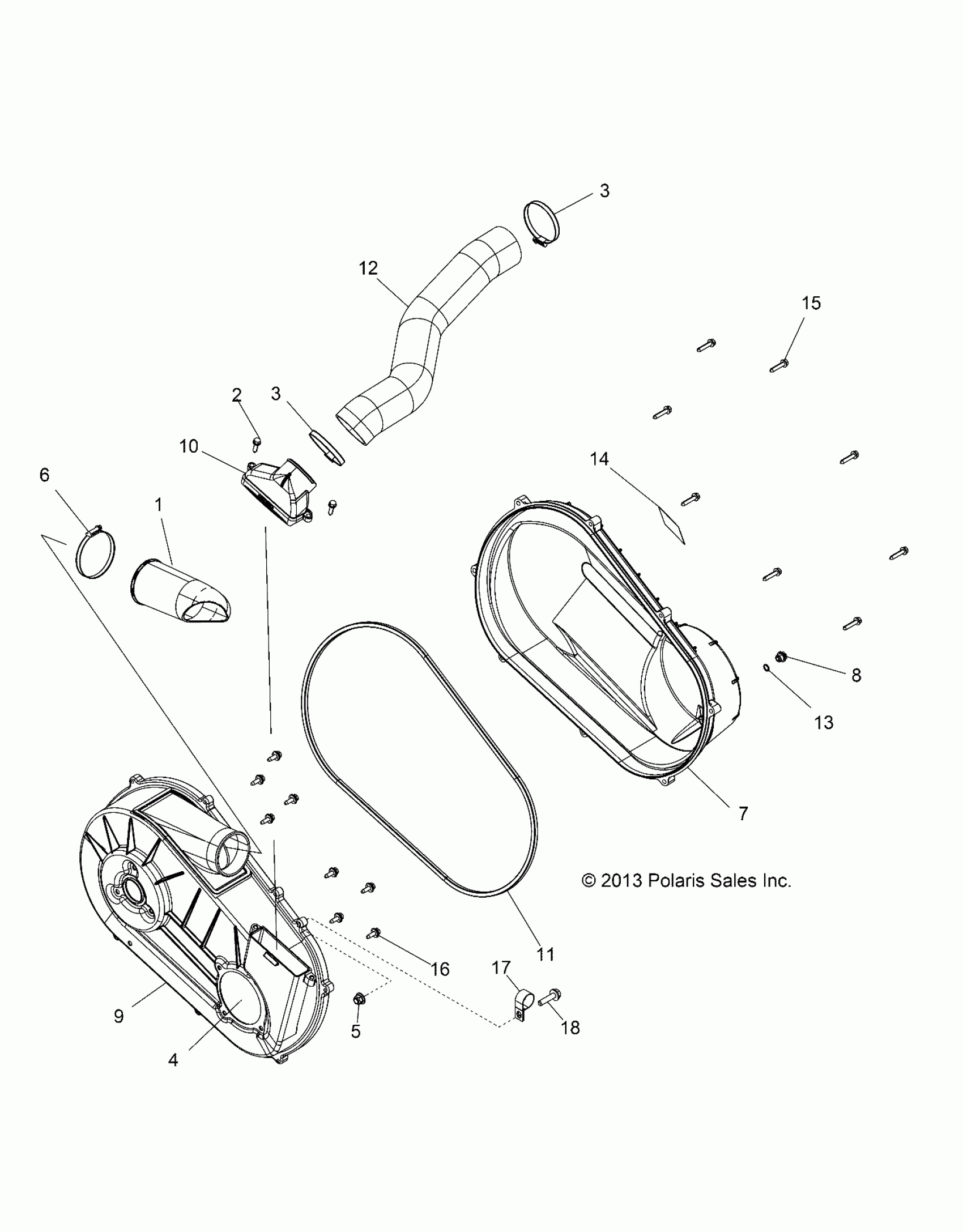

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS DRIVE TRAIN, CLUTCH COVER and DUCTING - Z16VHA57A2/EAK/AS (49RGRCLUTCHCVR14RZR570) Diagram

Description

Price

DUCT, OUTLET, CLUTCH

5450181

Unavailable

Screw

7512098

$1.59

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

RTV SILICONE

-------

Unavailable

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

ASM., COVER, CLUTCH, OUTER [INCL. OUTER COVER, PLUG, O-RING]

2634179

$175.99

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

ASM., COVER, CLUTCH, INNER [INCL. 1,2,9,10]

2635045

$213.00

COVER, CLUTCH, INNER

5438889

Unavailable

DUCT-CLUTCH,AIR IN

5438891

$27.99

SEAL, OUTER, CLUTCH COVER

5521831

Unavailable

HOSE, INTAKE, CLUTCH

5414156

$67.99

O RING-.364X.504X.07

5410542

Unavailable

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

SCREW

7512094

$1.59

ASM., BOLT/WASHER

7519278

$4.79

CLAMP, VINYL COATED

7081854

$5.59

BOLT

7518576

$3.19
