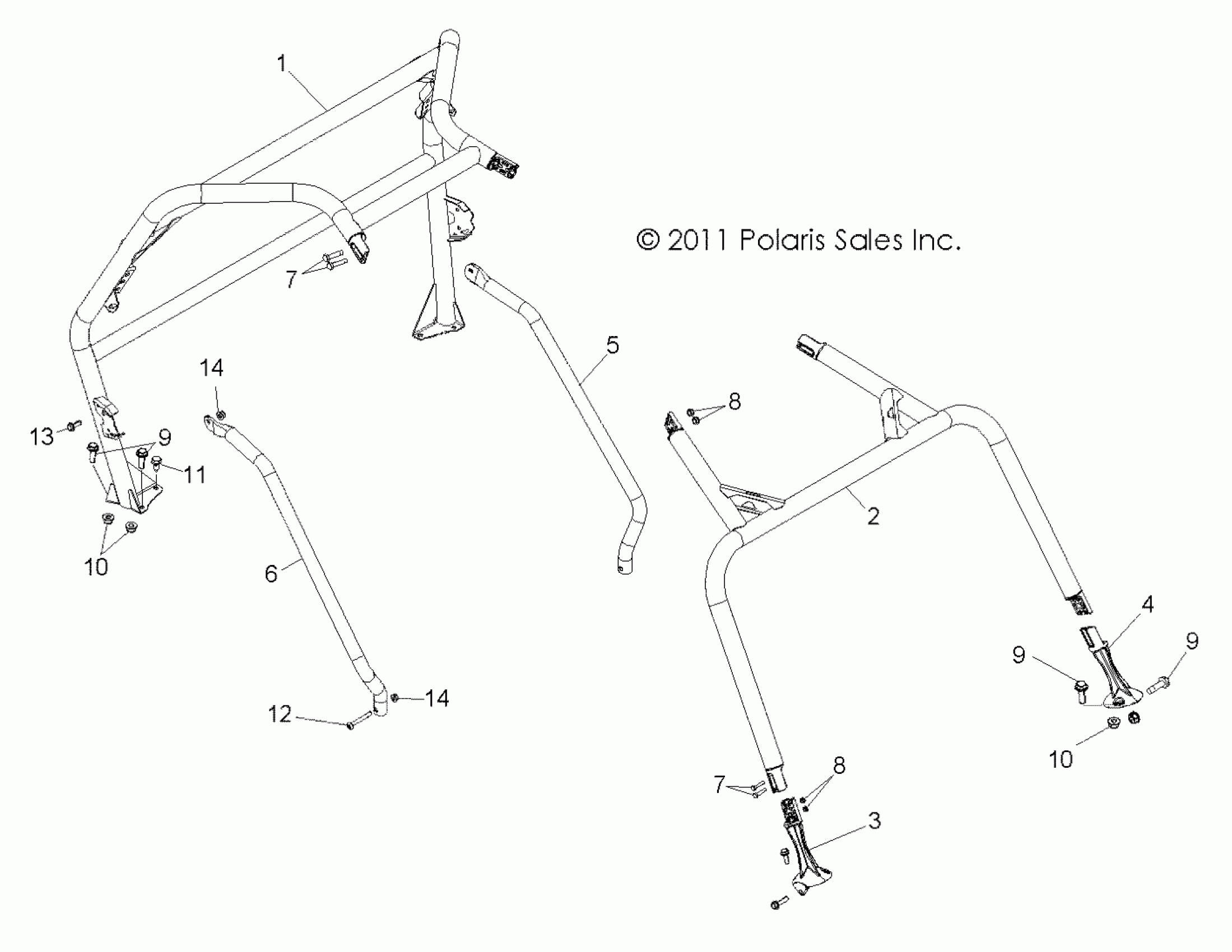

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS CHASSIS, CAB FRAME and SIDE BARS - Z16VHA57A2/EAK/AS (49RGRCAB12RZR570) Diagram

#

Description
Price

1

FRAME, CAB, BACK, MATTE BLACK

1019563-458

$866.79

2

FRAME, CAB, FRONT, MATTE BLACK

1019958-458

$277.19

3

Base, Cab Frame, Front, Base, RH, Matte Black

5632414-458

$127.59

4

Base, Cab Frame, Front, Base, LH, Matte Black

5632415-458

$127.59

5

TUBE, SIDE BAR, LH, MATTE BLACK

5337952-458

Unavailable

6

TUBE, SIDE BAR, RH, MATTE BLACK

5337953-458

Unavailable

7

SCREW

7517935

$2.39

7

SCREW

7517935

$2.39

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

BOLT, FLANGE

7518702

$3.99

9

BOLT, FLANGE

7518702

$3.99

9

BOLT, FLANGE

7518702

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

BOLT

7518555

$2.39

12

SCREW

7516732

$1.59

13

BOLT

7518702

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
