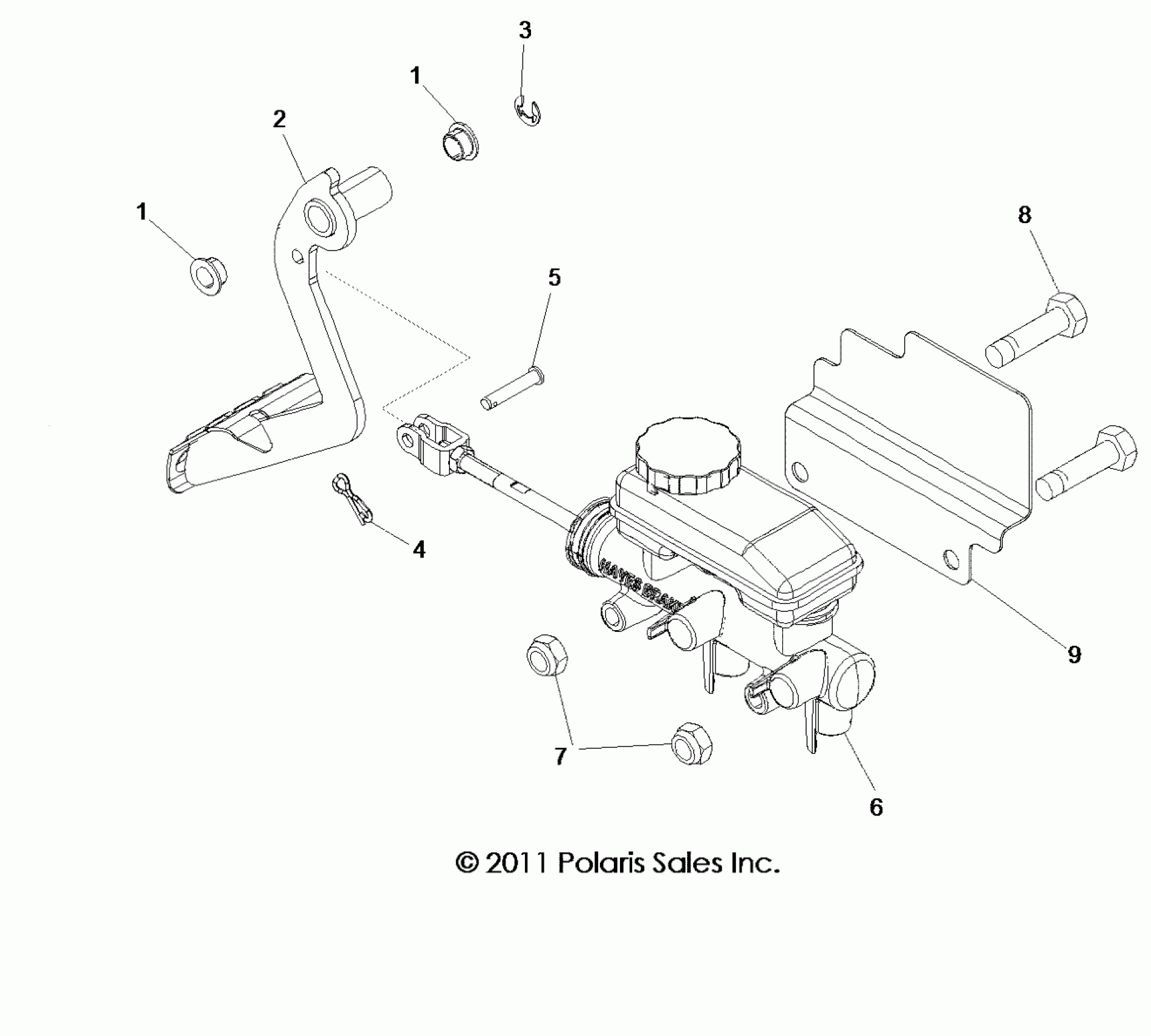

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS BRAKES, PEDAL and MASTER CYLINDER - Z16VHA57A2/EAK/AS (49RGRBRAKEFOOT12RZR) Diagram

#

Description
Price

1

BUSHING-PEDAL PIVOT

5439274

$12.70

1

BUSHING-PEDAL PIVOT

5439274

$12.70

2

WELD-BRAKE PEDAL,M.BLK

1021765-458

$36.41

3

Ring, Retaining

7710901

$8.08

4

PIN-CLIP,14MM

7661140

$1.19

5

PIN, CLEVIS

7661843

$2.38

6

KIT, SERVICE, MASTER CYLINDER, TANDEM

2204458

$133.56

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

SCREW

7519781

$4.76

9

SHIELD, MASTER CYLINDER

5251507

$34.99
