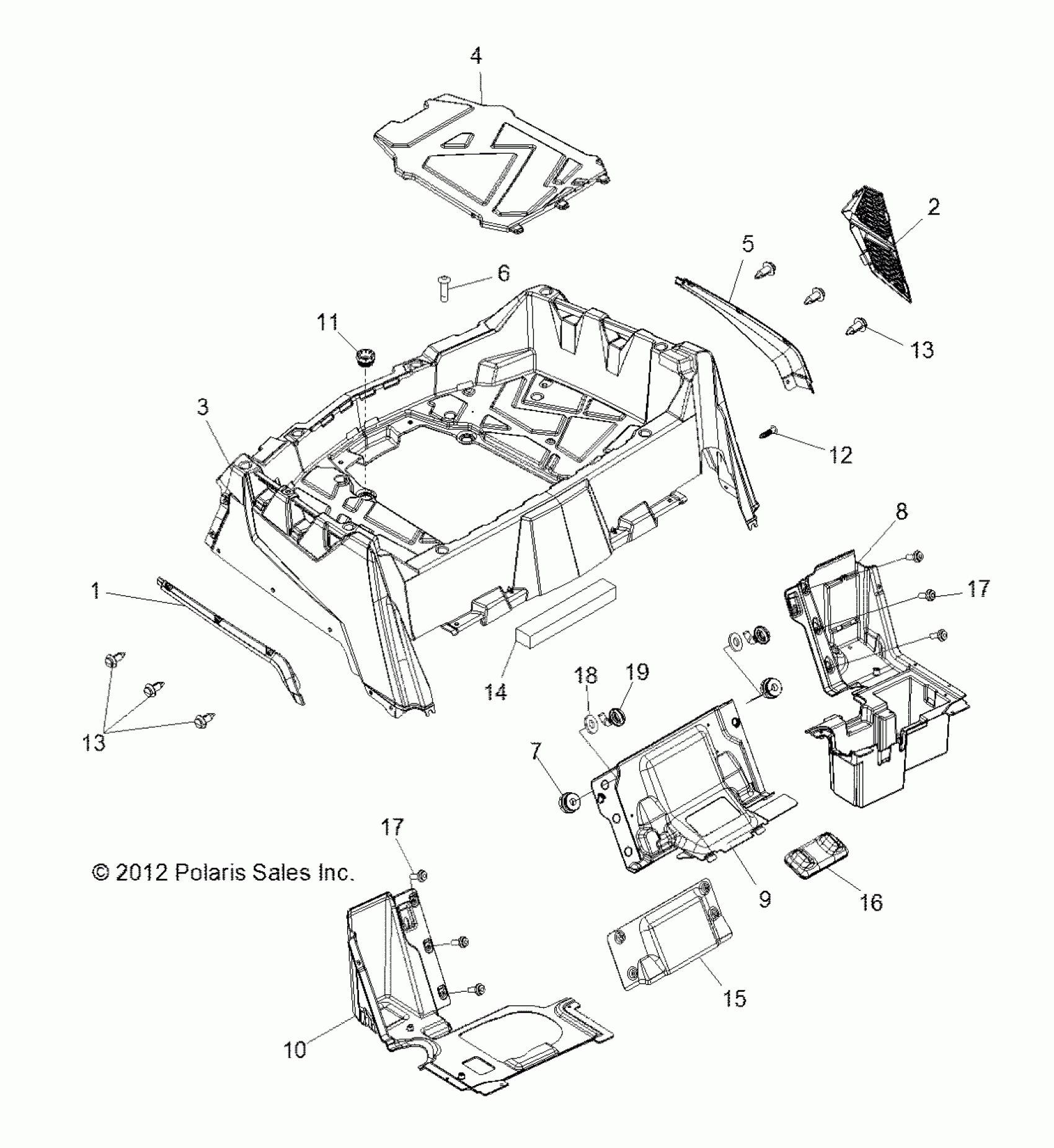

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS BODY, REAR RACK and FENDERS - Z16VHA57A2/EAK/AS (49RGRRACKMTG13RZR600) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, RH BLACK

5438956-070

$43.99

2

PANEL, FILTER, FENDER, LH, BLACK

5438941-070

$39.99

3

ASM., RACK, REAR, BLACK [INCL. DECAL]

2634857-070

$275.99

4

BOX, MAINT PANEL, REMOVABLE

5438906-070

$43.99

5

FLAIR, FENDER, REAR, LH, BLACK

5438955-070

$43.99

6

SCREW

7517685

$1.59

7

GROMMET-LATCH

5413428

$3.19

8

PANEL, DIVIDER, REAR, LH, BLACK

5438336-070

$87.99

9

PANEL, DIVIDER, REAR, BLACK

5439327-070

$67.99

10

PANEL, DIVIDER, REAR, RH, BLACK

5438957-070

$51.99

11

GROMMET

5412507

$6.39

12

SCREW

7512026

$1.49

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

14

SEAL, PANEL

5813751

$13.59

15

SHIELD, FOIL, FRONT PANEL

5813634

$51.99

16

COVER, SEAT BELT BUCKLE, REAR

5813553

$27.99

17

Screw

7512084

$1.49

17

Screw

7512084

$1.49

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.59
