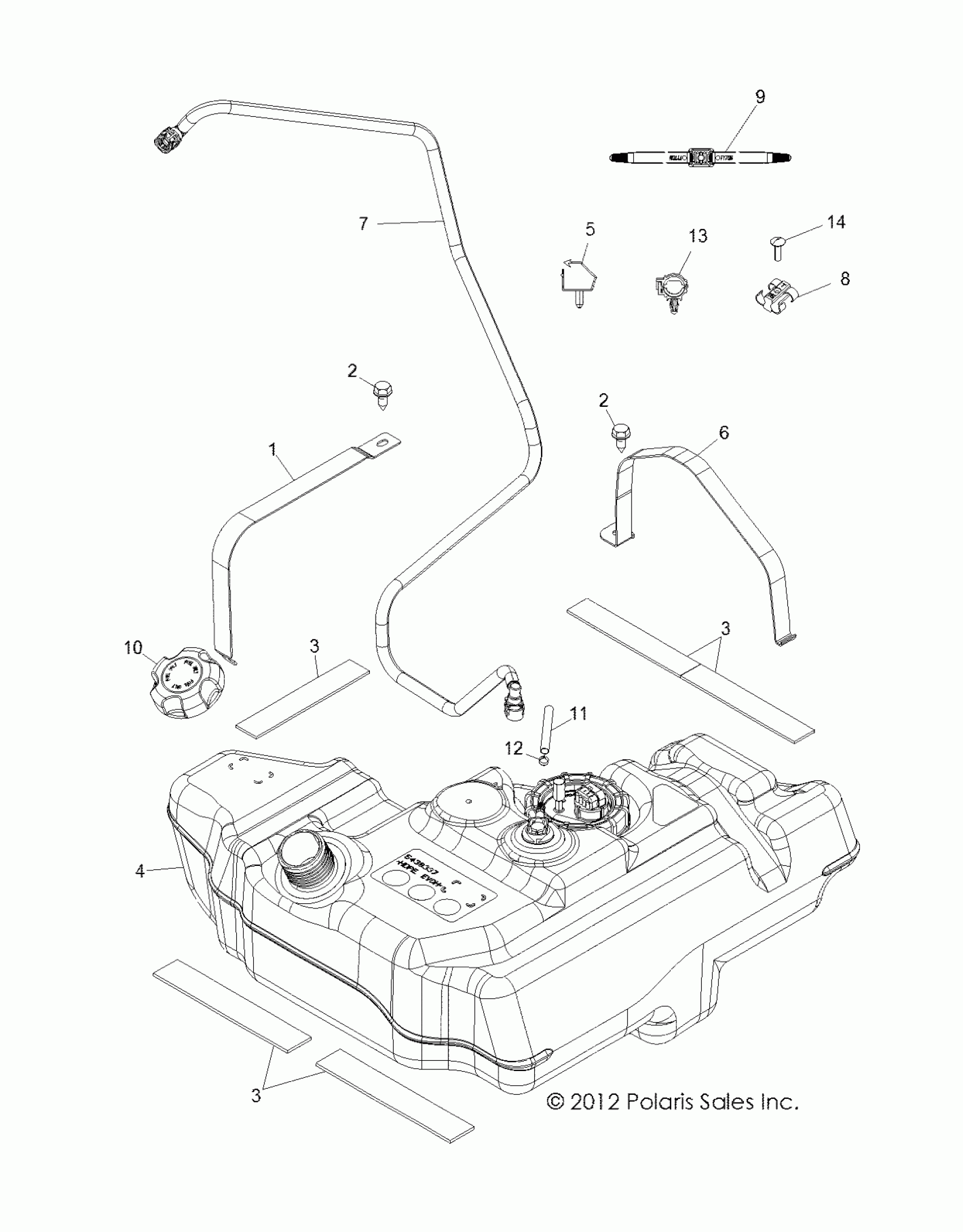

Polaris RZR 570 (R05) - Z16VHA57A2/EAK/AS BODY, FUEL TANK - Z16VHA57A2/EAK/AS (49RGRFUEL13RZR600) Diagram

#

Description
Price

1

BRACKET, TANK, REAR

5253844

$43.99

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

PAD-BATTERY

5810290

$7.27

3

PAD-BATTERY

5810290

$7.27

3

PAD-BATTERY

5810290

$7.27

4

KIT, FUEL PUMP [INCL. PUMP, GASKET, NUT, ALCOHOL WIPE, INSTRUCTIONS]

2204502

$464.99

4

ASM., FUEL TANK [INCL. PUMP]

2521360

$959.19

5

CLIP, ROUTING

7670109

$2.39

6

BRACKET, TANK, FRONT

5258646

$10.39

7

ASM., FUEL LINE, RAIL TO TANK

2521252

$107.99

8

T-CLIP

7081689

$7.19

9

CABLE-TIE,DIA14-45MM,DUAL-LOOP

7081807

$7.99

10

CAP-GAS TANK

5439075

$23.99

11

LINE, FUEL [VENT]

8450126-104

Unavailable

12

CLAMP, HOSE

7080236

$1.59

13

CLIP, ROSEBUD

4020139

$4.79

14

SCREW

7512025

$4.79
